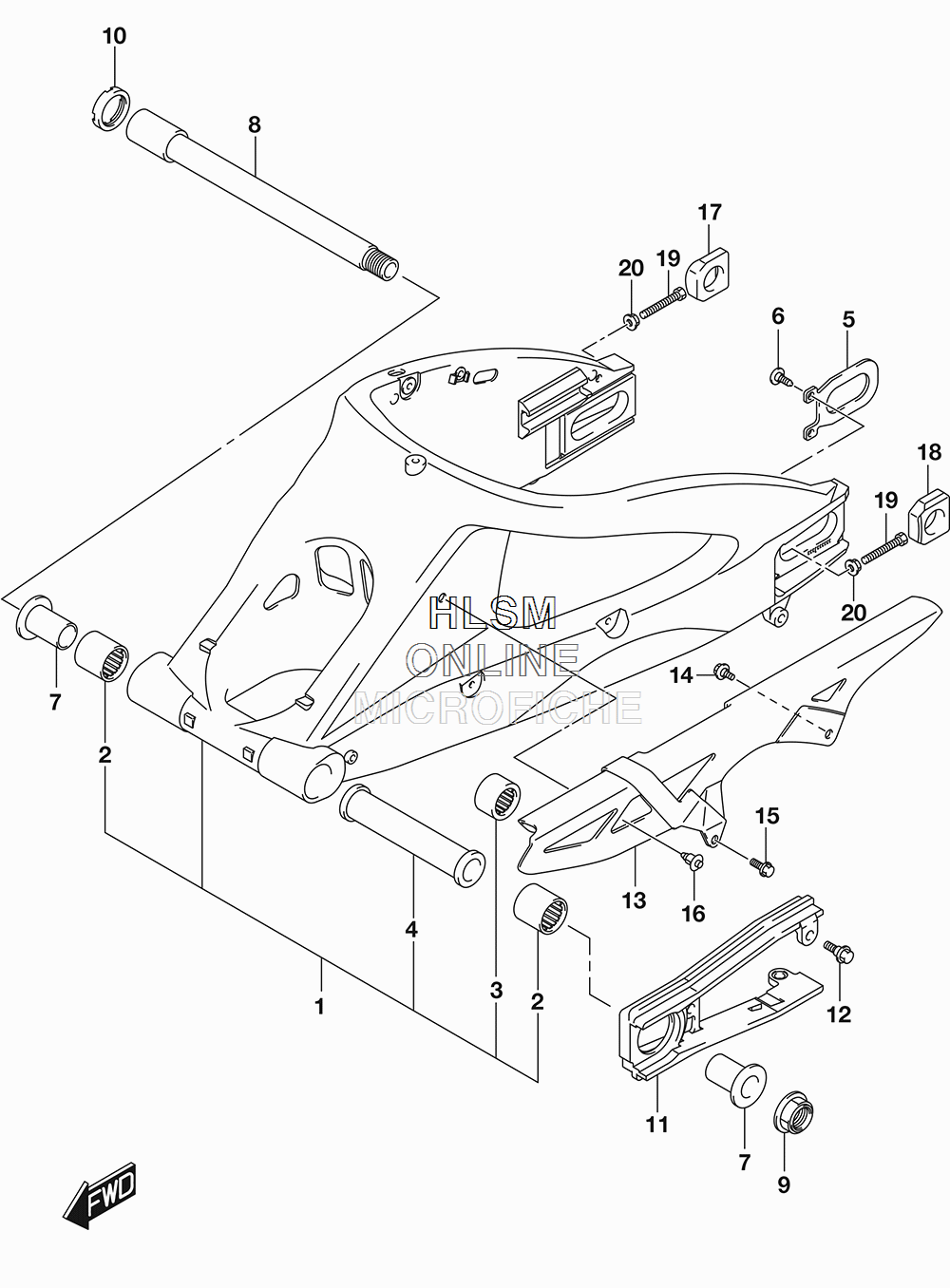

REAR SWINGARM для Suzuki GSX-S1000A - 2017 года выпуска
-
№АртикулНазвание
-
161000-47H10-YAP SWINGINGARM ASSY, REAR (YAP - BLACK)SWINGINGARM ASSY, REAR (YAP - BLACK)
-
209263-27013 ...BEARING (27X35X35)...BEARING (27X35X35)
-
309263-20070 ...BEARING (20X27X30)...BEARING (20X27X30)
-
461281-41G00 ...SPACER, CENTER...SPACER, CENTER
-
561124-41G00 PLATE, BRACKETPLATE, BRACKET
-
609125-06060 SCREW (6X12)SCREW (6X12)
-
761251-41G00 SPACER, BEARINGSPACER, BEARING
-
861211-01H00 SHAFT, PIVOTSHAFT, PIVOT
-
909159-20006 NUTNUT
-
1061214-42E10 NUT, PIVOTNUT, PIVOT
-
1161273-47H00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1209111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1361310-04K00 CASE, CHAINCASE, CHAIN
-
1409111-06107 BOLT (6X12)BOLT (6X12)
-
1501550-0616B BOLTBOLT
-
1609409-08308-5ES CLIP (5ES - BLACK)CLIP (5ES - BLACK)
-
1761445-40F00 ADJUSTER, CHAIN (RH)ADJUSTER, CHAIN (RH)
-
1861446-40F00 ADJUSTER, CHAIN (LH)ADJUSTER, CHAIN (LH)
-
1909100-08287 BOLT (8X50)BOLT (8X50)
-
2008316-1008A NUTNUT
