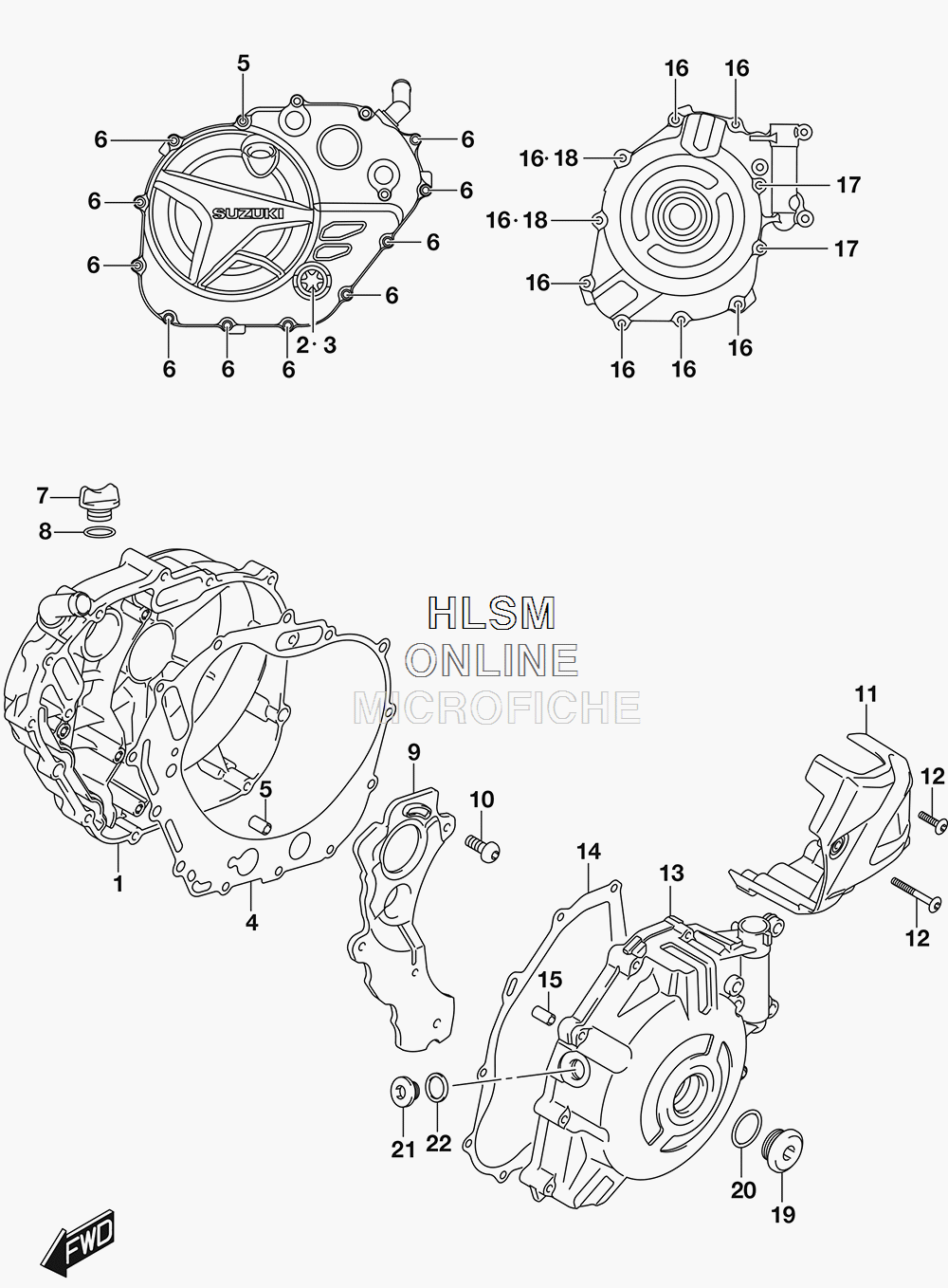

CRANKCASE COVER для Suzuki SV650 - 2017 года выпуска
-
№АртикулНазвание
-
111340-18K00 COVER, CLUTCHCOVER, CLUTCH
-
211971-33210 ...LENS, OIL LEVEL CHECK...LENS, OIL LEVEL CHECK
-
308331-4130A ...CIRCLIP...CIRCLIP
-
411482-44H00 GASKET, CLUTCH COVERGASKET, CLUTCH COVER
-
504211-09149 PINPIN
-
609103-06214 BOLT (6X35)BOLT (6X35)
-
711971-25D00 PLUG, OIL FILLERPLUG, OIL FILLER
-
809280-17003 O RING (D:3.1,ID:16.8)O RING (D:3.1,ID:16.8)
-
911343-44H01 SEPARATOR, OILSEPARATOR, OIL
-
1009106-06098 BOLT (6X12)BOLT (6X12)
-
1111360-18K00 COVER, ENG SPROCKETCOVER, ENG SPROCKET
-
1209139-06029 SCREW (6X25)SCREW (6X25)
-
1311351-44H10 COVER, MAGNETOCOVER, MAGNETO
-
1411483-19F00 GASKET, MAGNETO COVERGASKET, MAGNETO COVER
-
1504211-09149 PINPIN
-
1609103-06214 BOLT (6X35)BOLT (6X35)
-
1709103-06239 BOLT (6X65)BOLT (6X65)
-
1809168-06023 GASKET (5.8X13X1.2)GASKET (5.8X13X1.2)
-
1909259-26012 PLUGPLUG
-
2009280-22008 O RING (D:3.1,ID:22.7)O RING (D:3.1,ID:22.7)
-
2109248-16012 PLUG (16X8)PLUG (16X8)
-
2209168-16002 GASKET (16X22X2)GASKET (16X22X2)
