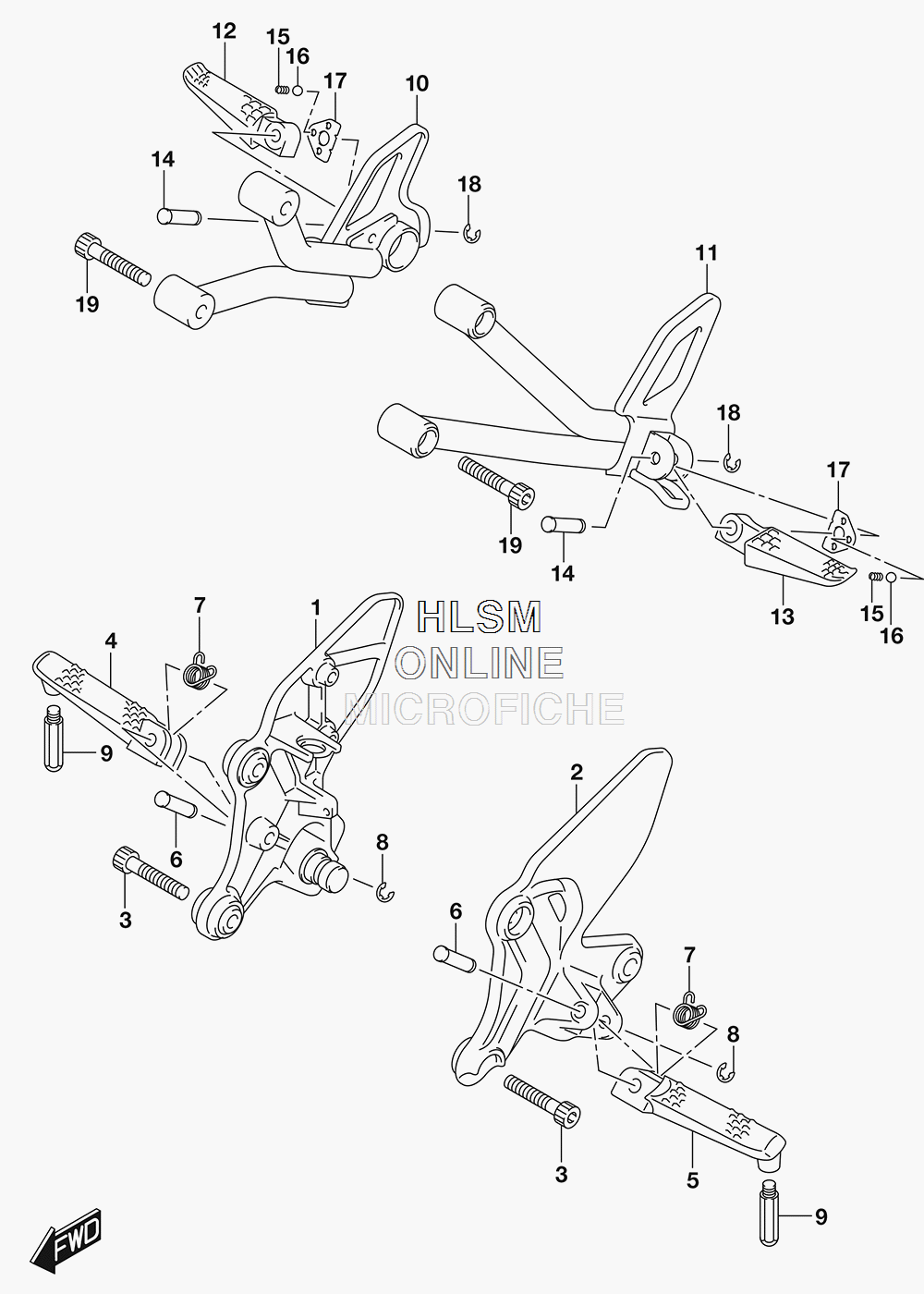

FOOTREST для Suzuki SV650 - 2017 года выпуска
-
№АртикулНазвание
-
143510-18K00 BRACKET, FRONT FOOTREST (RIGHT)BRACKET, FRONT FOOTREST (RIGHT)
-
243521-18K00 BRACKET, FRONT FOOTREST (LEFT)BRACKET, FRONT FOOTREST (LEFT)
-
309106-08186 BOLT (8X23)BOLT (8X23)
-
443516-18K00 BAR, FOOTREST (RIGHT)BAR, FOOTREST (RIGHT)
-
543526-18K00 BAR, FOOTREST (LEFT)BAR, FOOTREST (LEFT)
-
609208-08019 PINPIN
-
709448-14046 SPRINGSPRING
-
808332-1106A E RINGE RING
-
943576-48B30 BOLT, BANK SENSORBOLT, BANK SENSOR
-
1043810-18K00 BRACKET, PILLION FOOTREST (RIGHT)BRACKET, PILLION FOOTREST (RIGHT)
-
1143820-18K00 BRACKET, PILLION FOOTREST (LEFT)BRACKET, PILLION FOOTREST (LEFT)
-
1243611-37H20 BAR, PILLION FOOTREST (RIGHT)BAR, PILLION FOOTREST (RIGHT)
-
1343621-37H20 BAR, PILLION FOOTREST (LEFT)BAR, PILLION FOOTREST (LEFT)
-
1409208-08017 PINPIN
-
1509440-05005 SPRINGSPRING
-
1606111-07004 BALLBALL
-
1743816-01H10 PLATEPLATE
-
1808332-1106A E RINGE RING
-
1909106-08074 BOLT (8X40)BOLT (8X40)
