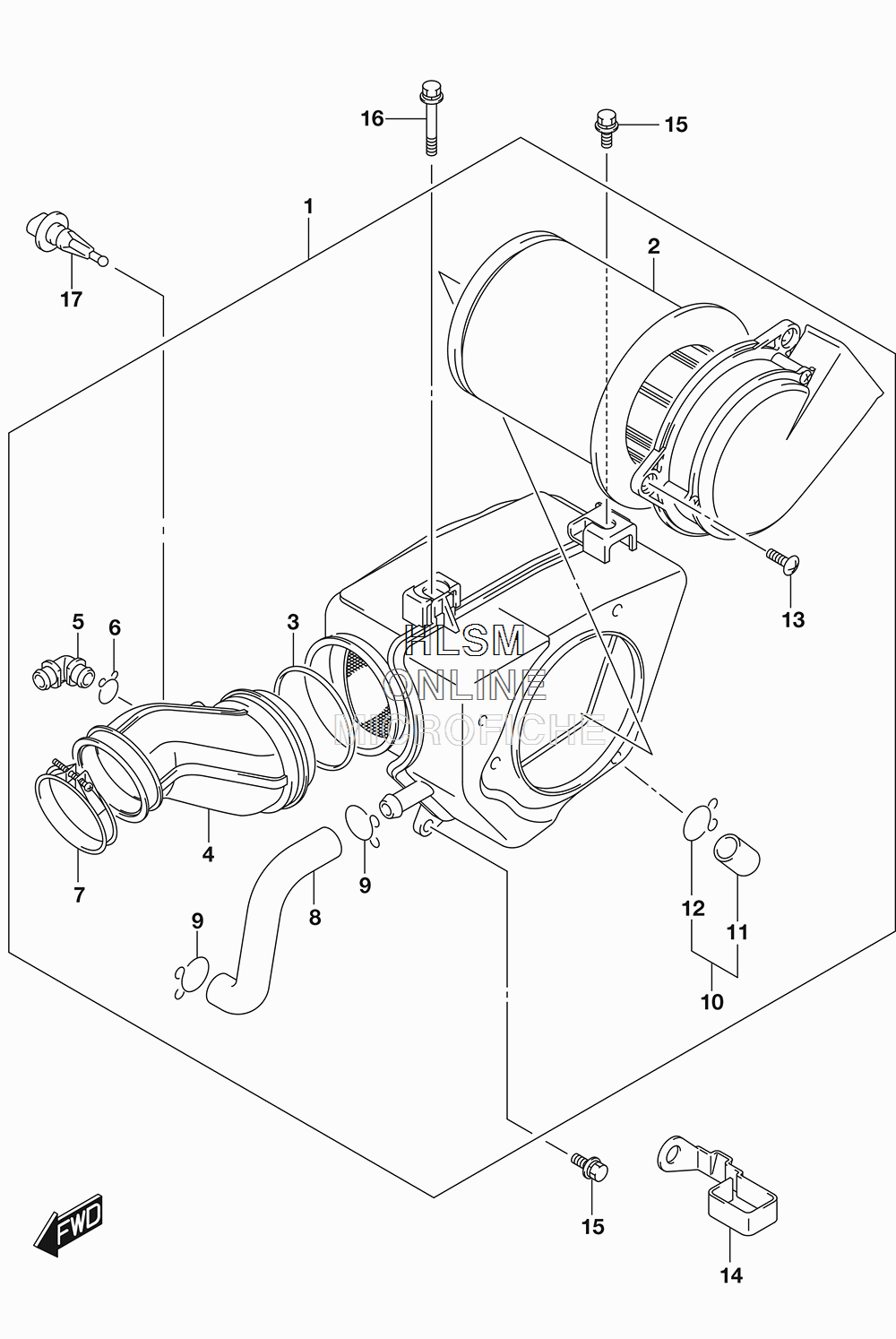

AIR CLEANER для Suzuki TU 250X - 2017 года выпуска
-
№АртикулНазвание
-
113700-26GA3 CLEANER ASSY, AIRCLEANER ASSY, AIR
-
213780-25D10 ...FILTER...FILTER
-
313826-38300 ...CLAMP, AIR CLEANER SIDE...CLAMP, AIR CLEANER SIDE
-
413881-26GA0 ...TUBE, OUTLET...TUBE, OUTLET
-
513858-14D20 ...JOINT...JOINT
-
609401-14101 ...CLIP...CLIP
-
713826-26GA1 ...CLAMP...CLAMP
-
813853-38300 ...TUBE, BREATHER...TUBE, BREATHER
-
909401-16401 ...CLIP...CLIP
-
1013856-19B03 ...PLUG ASSY, DRAIN...PLUG ASSY, DRAIN
-
1113859-41B10 ......PLUG......PLUG
-
1209401-14101 ......CLIP......CLIP
-
1302142-0512A ...SCREW...SCREW
-
1413827-38300 CLAMPCLAMP
-
1501580-0616A BOLTBOLT
-
1601580-0640A BOLTBOLT
-
1713650-52G00 SENSOR, INLET AIR TEMPSENSOR, INLET AIR TEMP
