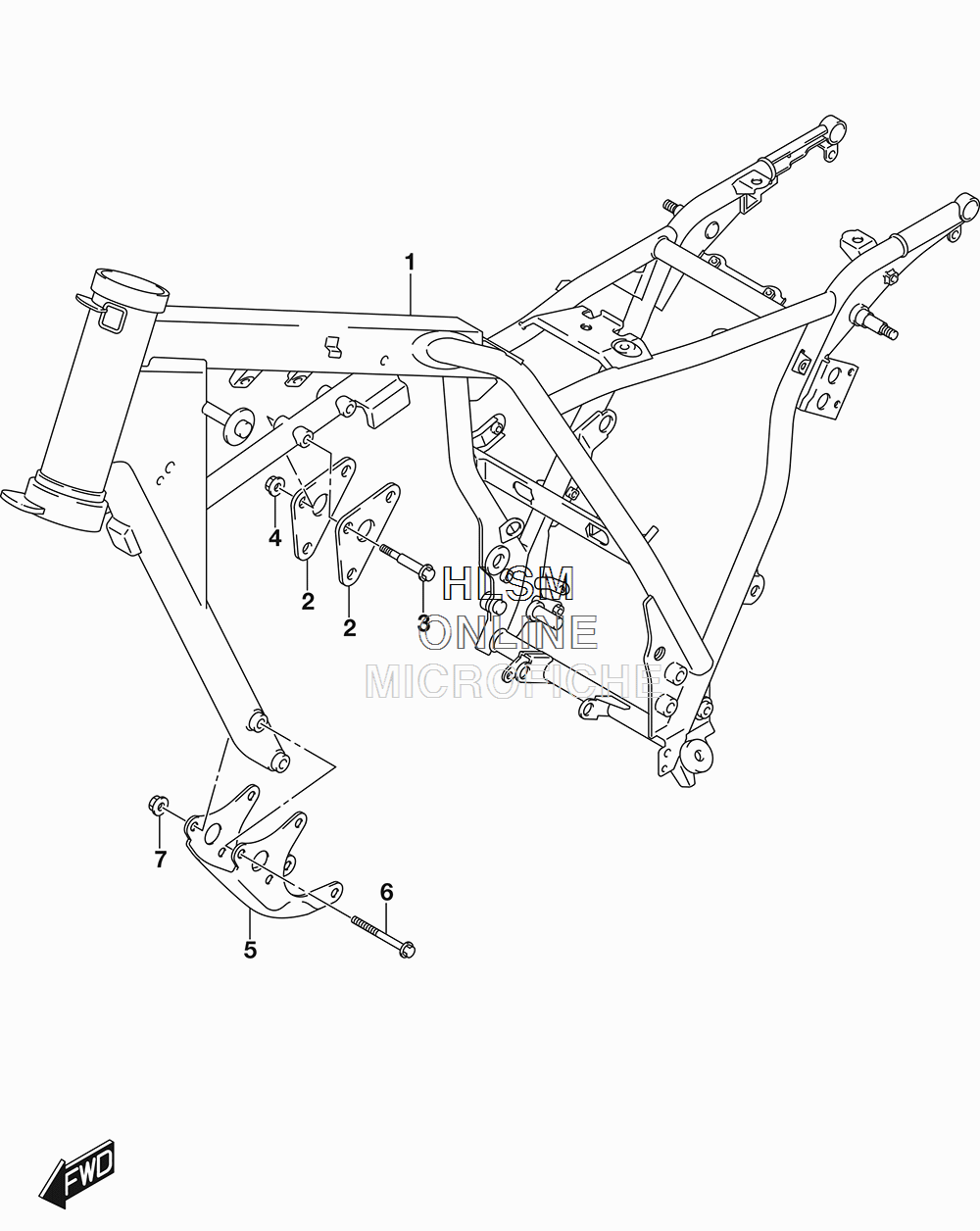

FRAME для Suzuki TU 250X - 2017 года выпуска
-
№АртикулНазвание
-
141100-26G30-019 FRAME (019 - BLACK)FRAME (019 - BLACK)
-
241991-26G00 PLATE, MOUNT UPPERPLATE, MOUNT UPPER
-
309103-08081 BOLT (8X50)BOLT (8X50)
-
408319-3108A NUTNUT
-
541992-38300-019 PLATE, MOUNT LOWER (019 - BLACK)PLATE, MOUNT LOWER (019 - BLACK)
-
609103-08037 BOLT (8X67)BOLT (8X67)
-
708319-3108A NUTNUT
