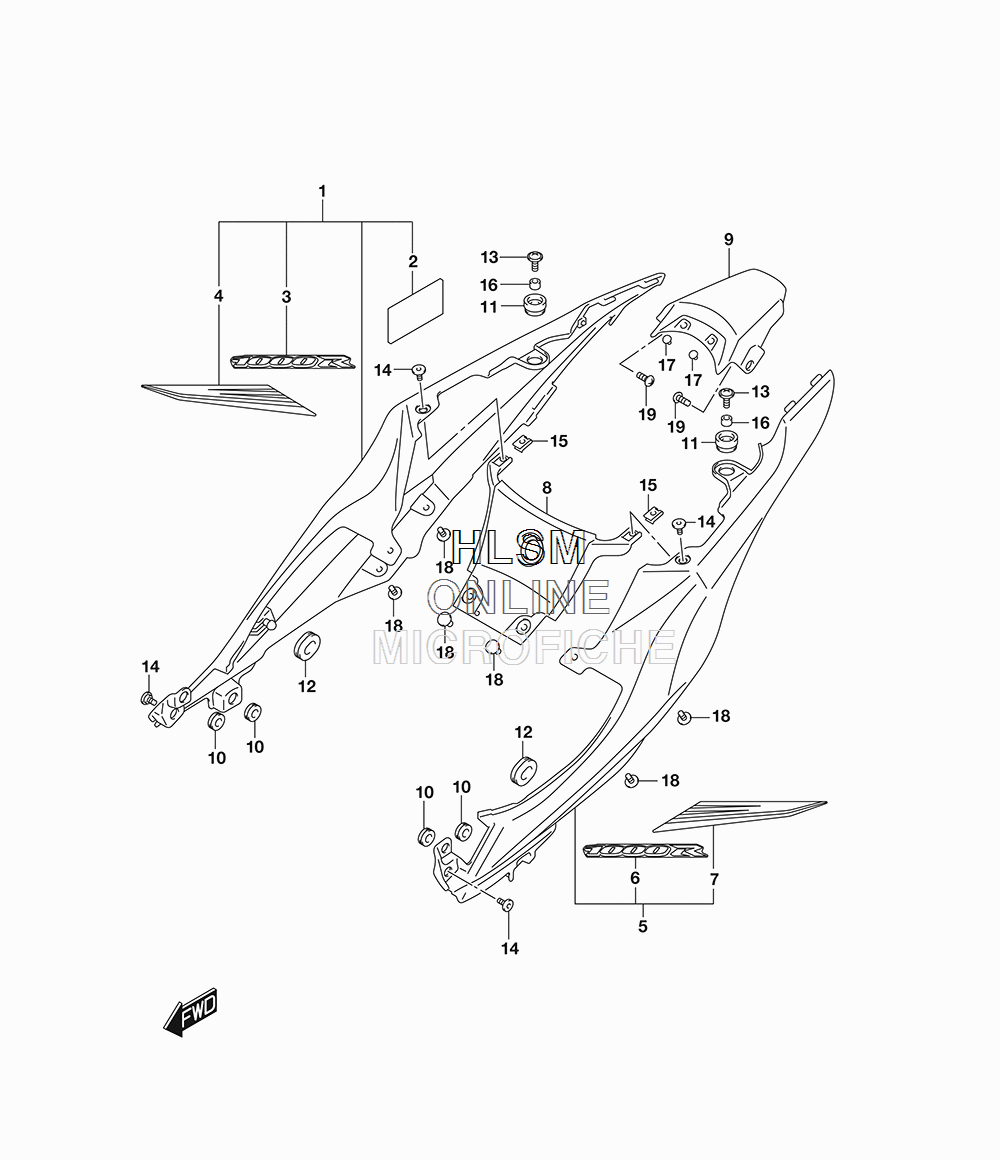

FRAME COVER (CALIF.) для Suzuki GSX-R1000RZ - 2018 года выпуска
-
№АртикулНазвание
-
1-147110-17K30-YVB COVER, FRAME (RH) (YVB - BLACK)COVER, FRAME (RH) (YVB - BLACK)
-
1-247110-17K30-YWW COVER, FRAME (RH) (YWW - WHITE)COVER, FRAME (RH) (YWW - WHITE)
-
233652-17K10 ...CUSHION...CUSHION
-
3-168131-17K00-BQP ...EMBLEM, FRAME COVER (BQP - BLACK/ORANGE/GRAY FOR YVB - BLACK)...EMBLEM, FRAME COVER (BQP - BLACK/ORANGE/GRAY FOR YVB - BLACK)
-
3-268131-17K00-BQN ...EMBLEM, FRAME COVER (BQN - WHITE/ORANGE/GRAY FOR YWW - WHITE)...EMBLEM, FRAME COVER (BQN - WHITE/ORANGE/GRAY FOR YWW - WHITE)
-
4-168135-17K10-BQM ...TAPE, FRAME COVER (RH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)...TAPE, FRAME COVER (RH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)
-
4-268135-17K10-BQL ...TAPE, FRAME COVER (RH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)...TAPE, FRAME COVER (RH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)
-
5-147210-17K30-YVB COVER, FRAME (LH) (YVB - BLACK)COVER, FRAME (LH) (YVB - BLACK)
-
5-247210-17K30-YWW COVER, FRAME (LH) (YWW - WHITE)COVER, FRAME (LH) (YWW - WHITE)
-
6-168131-17K00-BQP ...EMBLEM, FRAME COVER (BQP - BLACK/ORANGE/GRAY FOR YVB - BLACK)...EMBLEM, FRAME COVER (BQP - BLACK/ORANGE/GRAY FOR YVB - BLACK)
-
6-268131-17K00-BQN ...EMBLEM, FRAME COVER (BQN - WHITE/ORANGE/GRAY FOR YWW - WHITE)...EMBLEM, FRAME COVER (BQN - WHITE/ORANGE/GRAY FOR YWW - WHITE)
-
7-168145-17K10-BQM ...TAPE, FRAME COVER (LH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)...TAPE, FRAME COVER (LH) (BQM - BLACK/WHITE/GRAY FOR YVB - BLACK)
-
7-268145-17K10-BQL ...TAPE, FRAME COVER (LH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)...TAPE, FRAME COVER (LH) (BQL - WHITE/GRAY/BLUE FOR YWW - WHITE)
-
847311-17K00 COVER, FRAME CENTER FRONTCOVER, FRAME CENTER FRONT
-
9-147411-17K00-YVB COVER, FRAME CENTER REAR (YVB - BLACK)COVER, FRAME CENTER REAR (YVB - BLACK)
-
9-247411-17K00-YWW COVER, FRAME CENTER REAR (YWW - WHITE)COVER, FRAME CENTER REAR (YWW - WHITE)
-
1044173-14J00 CUSHIONCUSHION
-
1147312-37H00 CUSHION, FRAME COVER RRCUSHION, FRAME COVER RR
-
1294478-14J00 CUSHION, FRAME COVERCUSHION, FRAME COVER
-
1309139-06139 SCREW (6X16)SCREW (6X16)
-
1409139-05092 SCREWSCREW
-
1509148-05052 NUTNUT
-
1609180-06283 SPACER (6.5X10X7)SPACER (6.5X10X7)
-
1709250-06012 PLUG (OD:10)PLUG (OD:10)
-
1809409-06328 CLIPCLIP
-
1903541-0516A SCREWSCREW
