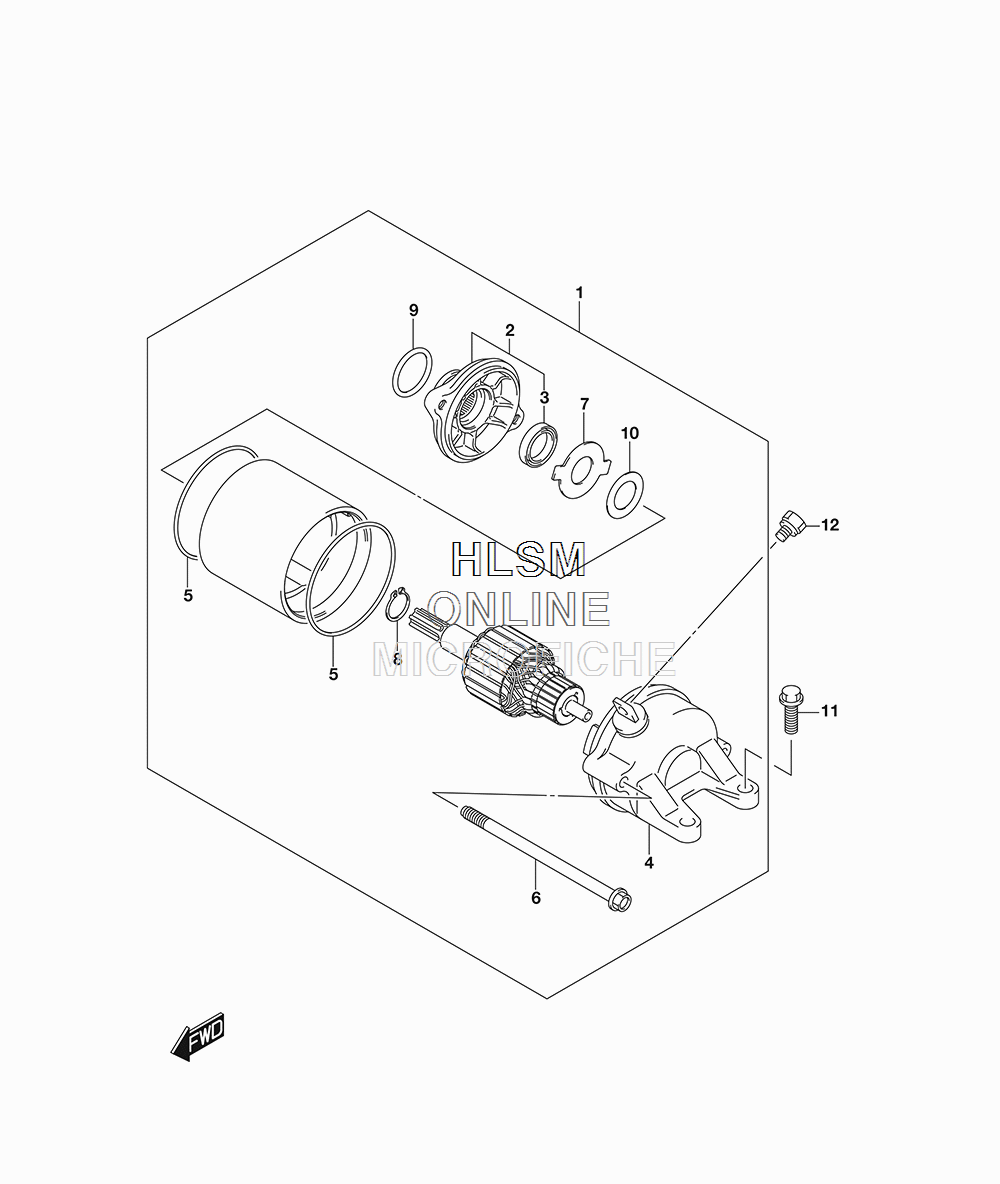

STARTING MOTOR для Suzuki GSX-R1000RZ - 2018 года выпуска
-
№АртикулНазвание
-
131100-17K00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231150-40F01 ...HOUSING ASSY...HOUSING ASSY
-
331153-49210 ......OIL SEAL......OIL SEAL
-
431175-40F01 ...FRAME ASSY...FRAME ASSY
-
531264-32C10 ...O RING...O RING
-
631281-40F00 ...BOLT...BOLT
-
731361-17K00 ...PLATE, LOCK...PLATE, LOCK
-
831361-10200 ...RING, SNAP...RING, SNAP
-
931156-40F01 ...O RING...O RING
-
1031361-38300 ...SHIM...SHIM
-
1101547-0620A BOLTBOLT
-
1209137-05004 SCREW (5X8)SCREW (5X8)
