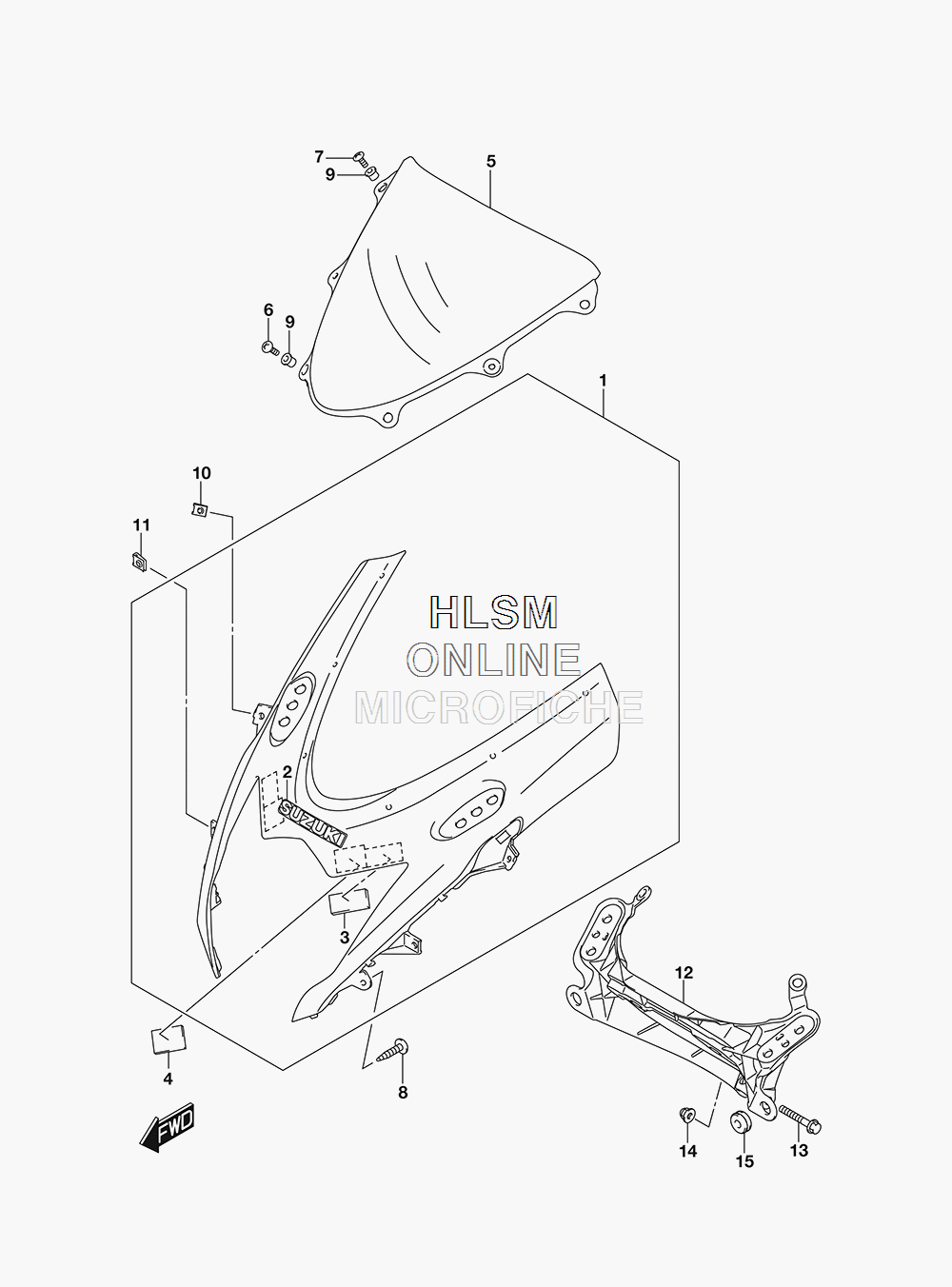

COWLING BODY для Suzuki GSX-R600 - 2018 года выпуска
-
№АртикулНазвание
-
1-194410-14J10-6CX BODY, COWLING (6CX - BLUE FOR YSF - BLUE)BODY, COWLING (6CX - BLUE FOR YSF - BLUE)
-
1-294410-14J10-QEB BODY, COWLING (QEB - GRAY FOR QEB - GRAY)BODY, COWLING (QEB - GRAY FOR QEB - GRAY)
-
1-394410-14J10-YMD BODY, COWLING (YMD - SILVER FOR BNE - SILVER/WHITE)BODY, COWLING (YMD - SILVER FOR BNE - SILVER/WHITE)
-
2-168641-19F00-YWW ...EMBLEM (YWW - WHITE FOR COWL 6CX FOR BIKE YSF - BLUE)...EMBLEM (YWW - WHITE FOR COWL 6CX FOR BIKE YSF - BLUE)
-
2-268281-24F10-019 ...EMBLEM (019 - BLACK FOR COWL QEB FOR BIKE QEB - GRAY)...EMBLEM (019 - BLACK FOR COWL QEB FOR BIKE QEB - GRAY)
-
2-368281-24F10-019 ...EMBLEM (019 - BLACK FOR SOWL YMD FOR BIKE BNE - SILVER/WHITE)...EMBLEM (019 - BLACK FOR SOWL YMD FOR BIKE BNE - SILVER/WHITE)
-
392146-14J00 ...CUSHION...CUSHION
-
444572-02F01 FASTENERFASTENER
-
594611-14J00 WINDSCREENWINDSCREEN
-
609125-05133 SCREW (5X18)SCREW (5X18)
-
709125-05134 SCREW (5X15)SCREW (5X15)
-
803541-0516A SCREWSCREW
-
909159-05019 NUTNUT
-
1009148-05052 NUTNUT
-
1109148-05047 NUTNUT
-
1294511-14J00 BRACE, COWLINGBRACE, COWLING
-
1309103-08207 BOLT (8X45)BOLT (8X45)
-
1408313-2008A NUTNUT
-
1509320-08047 CUSHIONCUSHION
