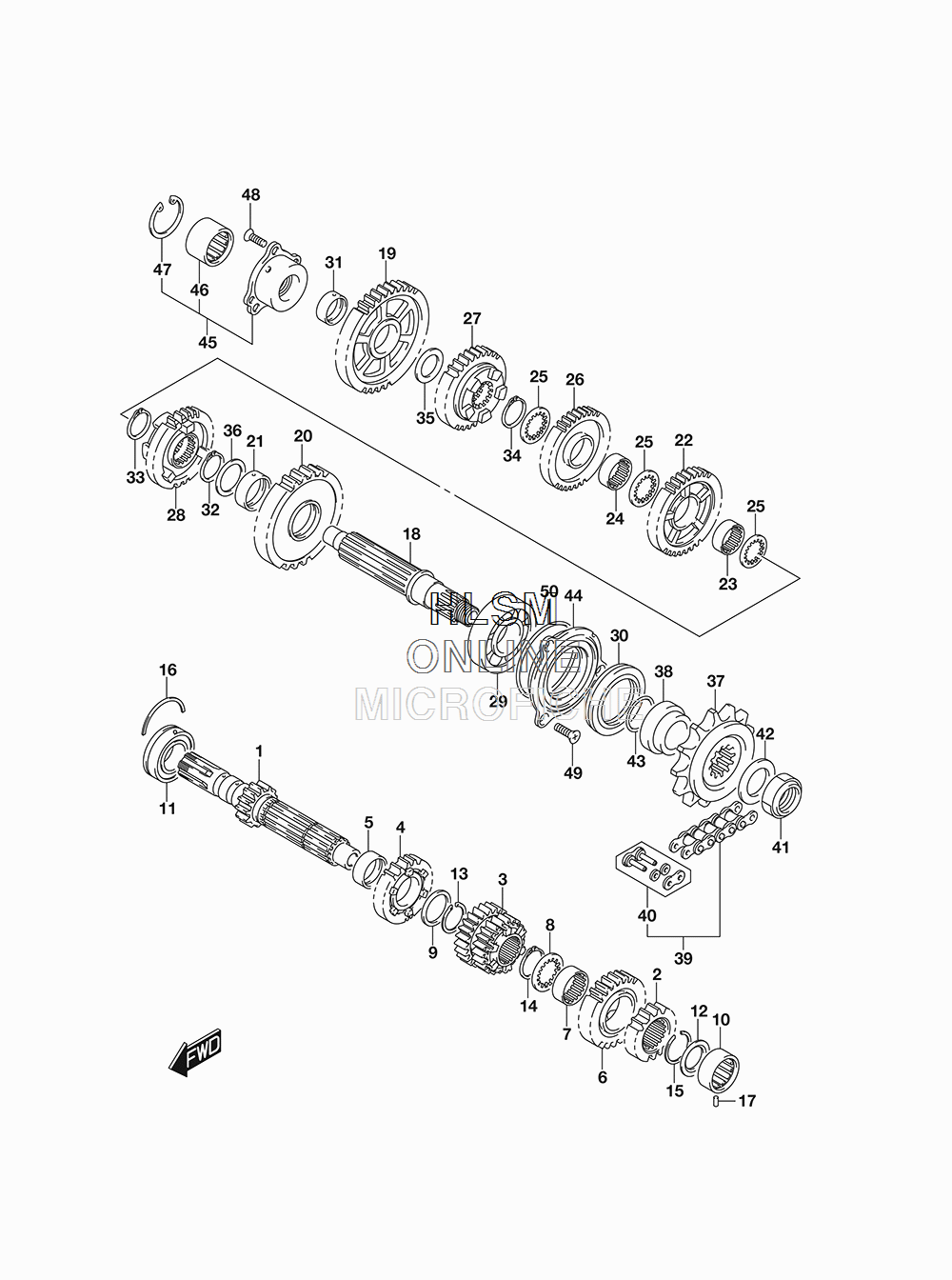

TRANSMISSION для Suzuki GSX-R600 - 2018 года выпуска
-
№АртикулНазвание
-
124120-14J00 SHAFT, COUNTER (NT:16)SHAFT, COUNTER (NT:16)
-
224221-14J00 GEAR, 2ND DRIVE (NT:19)GEAR, 2ND DRIVE (NT:19)
-
324231-14J00 GEAR, 3RD & 4TH (NT:21/23)GEAR, 3RD & 4TH (NT:21/23)
-
424251-01H00 GEAR, 5TH DRIVE (NT:23)GEAR, 5TH DRIVE (NT:23)
-
524252-35F00 BUSH 5TH DRIVE GEARBUSH 5TH DRIVE GEAR
-
624261-14J00 GEAR, 6TH DRIVE (NT:26)GEAR, 6TH DRIVE (NT:26)
-
724262-35F10 BUSH, 6TH DRIVE GEARBUSH, 6TH DRIVE GEAR
-
809167-27001 LOCK WASHERLOCK WASHER
-
909160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
1009263-20087 BEARING (20X34X13.5) (LH)BEARING (20X34X13.5) (LH)
-
1109262-25150 BEARING (25X62X17) (RH)BEARING (25X62X17) (RH)
-
1209285-20006 OIL SEAL (20X31.2X2.7)OIL SEAL (20X31.2X2.7)
-
1309380-27006 CIRCLIPCIRCLIP
-
1409380-27006 CIRCLIPCIRCLIP
-
1509380-27004 CIRCLIPCIRCLIP
-
1609390-62012 C RINGC RING
-
1709261-06003 PIN (6X10) (LH)PIN (6X10) (LH)
-
1824131-14J00 SHAFT, DRIVESHAFT, DRIVE
-
1924311-14J00 GEAR, 1ST DRIVEN (NT:43)GEAR, 1ST DRIVEN (NT:43)
-
2024321-14J00 GEAR, 2ND DRIVEN (NT40)GEAR, 2ND DRIVEN (NT40)
-
2124322-35F00 BUSH, 2ND DRIVENBUSH, 2ND DRIVEN
-
2224331-14J00 GEAR, 3RD DRIVEN (NT:37)GEAR, 3RD DRIVEN (NT:37)
-
2324332-46H00 BUSH, 3RD DRIVEN GEARBUSH, 3RD DRIVEN GEAR
-
2424332-46H00 BUSH, 4TH DRIVEN GEARBUSH, 4TH DRIVEN GEAR
-
2524333-02F00 WASHER, 3RD & 4TH DRIVENWASHER, 3RD & 4TH DRIVEN
-
2624341-14J00 GEAR, 4TH DRIVEN (NT:35)GEAR, 4TH DRIVEN (NT:35)
-
2724351-01H01 GEAR, 5TH DRIVEN (NT:31)GEAR, 5TH DRIVEN (NT:31)
-
2824361-14J00 GEAR, 6TH DRIVEN (NT:32)GEAR, 6TH DRIVEN (NT:32)
-
2909262-28045 BEARING (28X68X18) (LH)BEARING (28X68X18) (LH)
-
3009283-42018 OIL SEAL (42X62X7)OIL SEAL (42X62X7)
-
3109300-22008 BUSH (22X26X9)BUSH (22X26X9)
-
3209380-27006 CIRCLIPCIRCLIP
-
3309380-27006 CIRCLIPCIRCLIP
-
3409380-27006 CIRCLIPCIRCLIP
-
3509181-22223 SHIM (22X34X1) (LH)SHIM (22X34X1) (LH)
-
3609160-27008 WASHER (27X36X1)WASHER (27X36X1)
-
3727510-20A10 SPROCKET, ENGINE (NT:16)SPROCKET, ENGINE (NT:16)
-
3827531-14J00 SPACER, ENGINE SPROCKETSPACER, ENGINE SPROCKET
-
3927600-06G40-114 CHAIN ASSY (RK525SM0Z8)CHAIN ASSY (RK525SM0Z8)
-
4027620-06G40 ...JOINT SET...JOINT SET
-
4109159-20004 NUTNUT
-
4209160-25009 WASHER (25X41X3)WASHER (25X41X3)
-
4309280-24010 O RING (D:2.4,ID:23.7)O RING (D:2.4,ID:23.7)
-
4424751-14J00 RETAINER, DRIVE SHAFT (LH)RETAINER, DRIVE SHAFT (LH)
-
4524771-01810 HOUSING, DRIVE SHAFT SETHOUSING, DRIVE SHAFT SET
-
4609263-20069 ...BEARING (20X34X17.5)...BEARING (20X34X17.5)
-
4708331-41349 ...CIRCLIP...CIRCLIP
-
4809139-06159 SCREW (6X20)SCREW (6X20)
-
4909139-06159 SCREW (6X20)SCREW (6X20)
-
5009280-68010 O RING (D:1.8,ID:67.5)O RING (D:1.8,ID:67.5)
