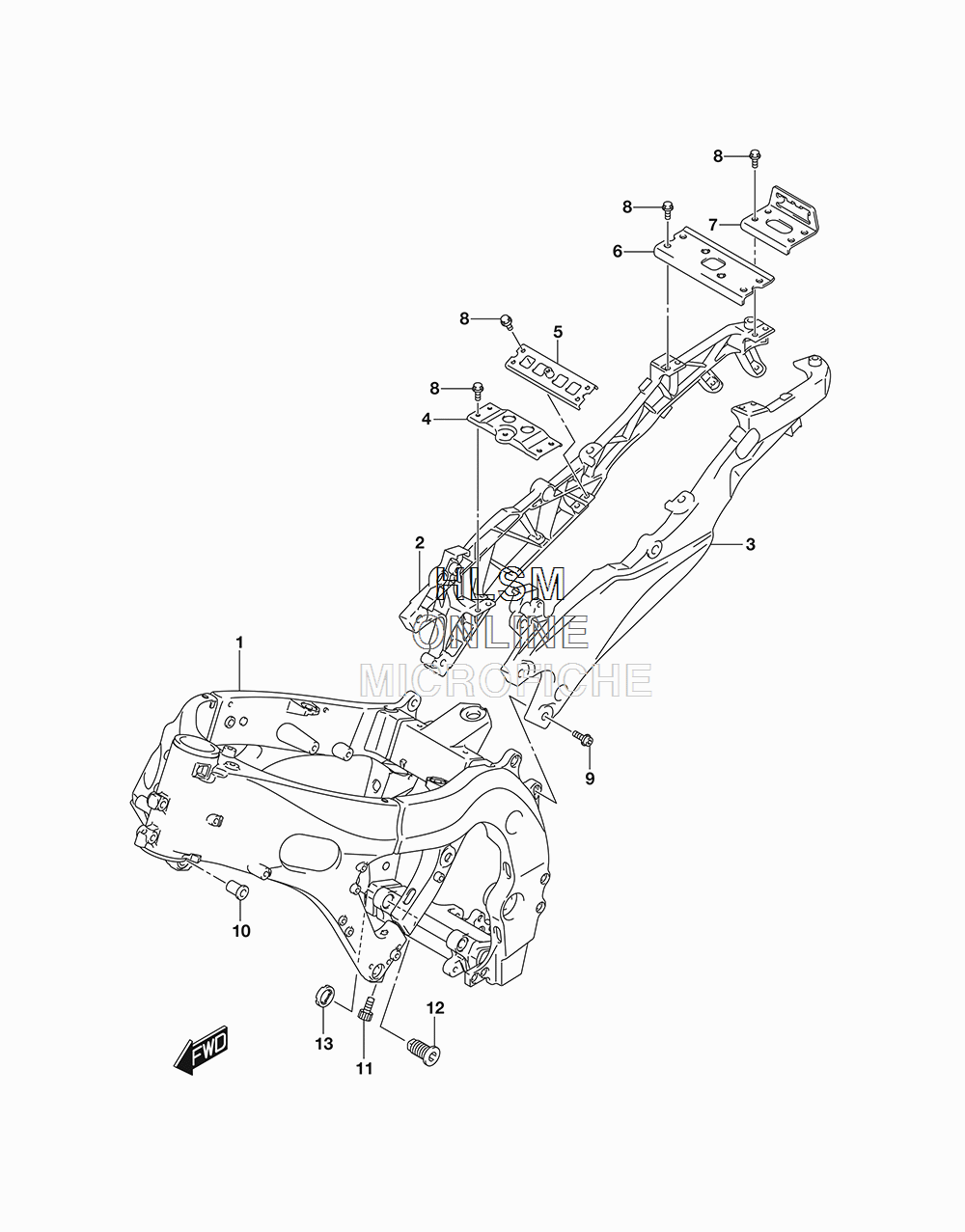

FRAME для Suzuki GSX-R750 - 2018 года выпуска
-
№АртикулНазвание
-
141100-15J00-YAP FRAME (YAP - BLACK)FRAME (YAP - BLACK)
-
241211-14J00-YUG RAIL, SEAT (RH) (YUG - BLACK)RAIL, SEAT (RH) (YUG - BLACK)
-
341221-14J00-YUG RAIL, SEAT (LH) (YUG - BLACK)RAIL, SEAT (LH) (YUG - BLACK)
-
441770-01H00 BRIDGE, SEAT RAIL FRONTBRIDGE, SEAT RAIL FRONT
-
542740-37H00 BRIDGE, SEAT RAIL CENTERBRIDGE, SEAT RAIL CENTER
-
642730-14J00 BRIDGE, SEAT RAIL UPPERBRIDGE, SEAT RAIL UPPER
-
742751-14J00 BRIDGE, SEAT RAIL REARBRIDGE, SEAT RAIL REAR
-
809103-06285 BOLT (6X12)BOLT (6X12)
-
941233-18G20 BOLT, SEAT RAILBOLT, SEAT RAIL
-
1041911-40F01 SPACER, ENGINE MOUNTSPACER, ENGINE MOUNT
-
1109106-08185 BOLT (8X32)BOLT (8X32)
-
1241921-35F00 BOLT, ADJUSTBOLT, ADJUST
-
1341922-18G00 NUT, ADJUSTNUT, ADJUST
