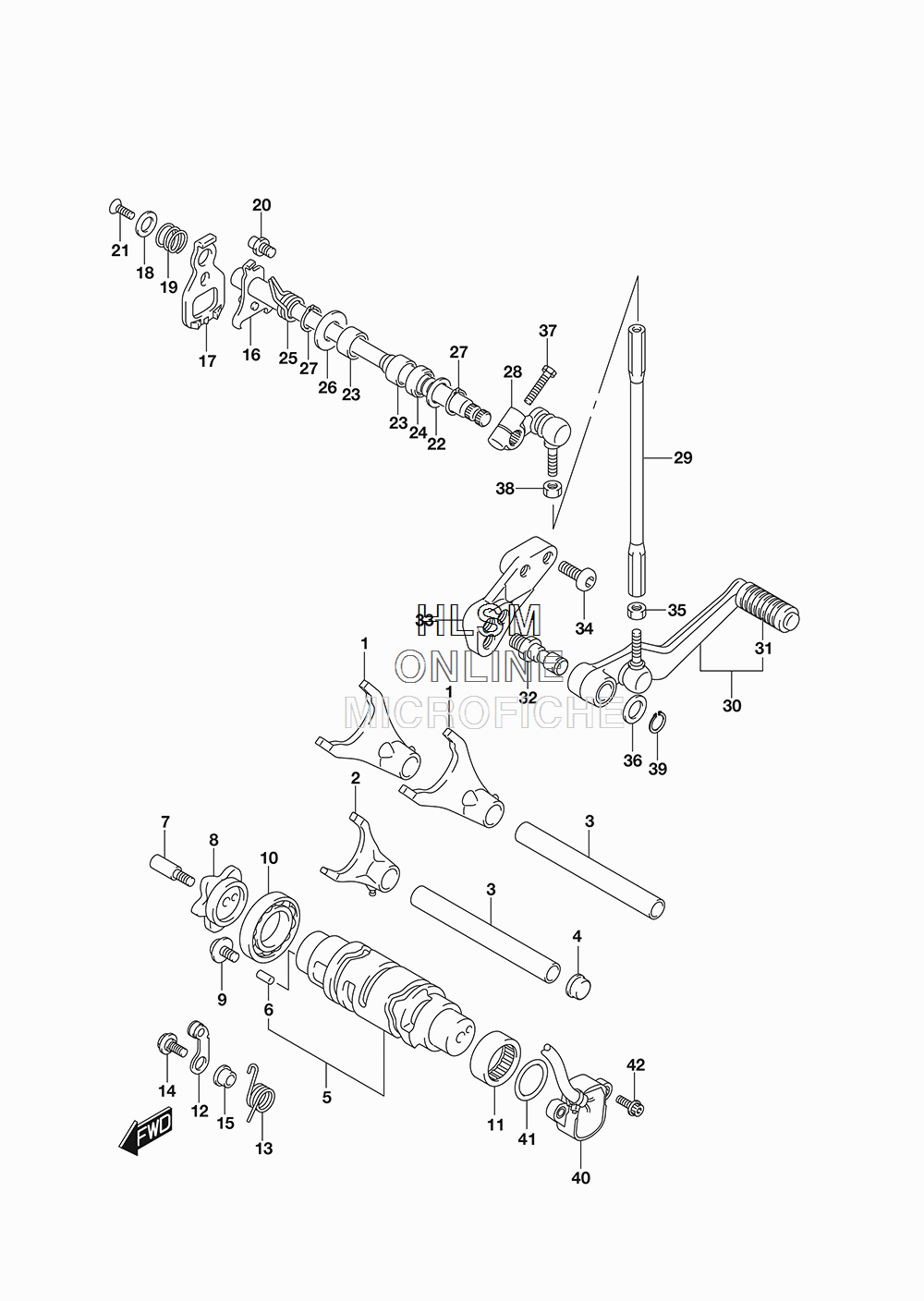

GEAR SHIFTING для Suzuki GSX-R750 - 2018 года выпуска
-
№АртикулНазвание
-
125211-01H01 FORK, GEAR SHIFT NO.1FORK, GEAR SHIFT NO.1
-
225231-01H02 FORK, GEAR SHIFT NO.3FORK, GEAR SHIFT NO.3
-
325411-35F00 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
425712-37H00 PLUG, GEAR SHIFT FORKPLUG, GEAR SHIFT FORK
-
525310-01H00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
604221-04089 ...PIN...PIN
-
725312-42F01 BOLT, GEAR SHIFT CAMBOLT, GEAR SHIFT CAM
-
825381-13E30 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
909136-06147 SCREW (6X12)SCREW (6X12)
-
1009262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1109263-25018 BEARING (25X32X12)BEARING (25X32X12)
-
1225350-06G00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1325355-01H00 SPRING, SHIFT CAM STOPPERSPRING, SHIFT CAM STOPPER
-
1425357-01H00 BOLT, SHIFT CAMBOLT, SHIFT CAM
-
1525358-01H00 SPACER, CAM STOPPERSPACER, CAM STOPPER
-
1625510-01H00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1725512-06G10 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1825519-01H00 WASHER, GEAR SHIFTWASHER, GEAR SHIFT
-
1925518-01H00 SPRING, GEAR SHIFT RETURNSPRING, GEAR SHIFT RETURN
-
2025671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2109126-06014 SCREW (6X16)SCREW (6X16)
-
2209160-14016 WASHER (14X29X0.8) (LH)WASHER (14X29X0.8) (LH)
-
2309263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
2409283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2509444-20001 SPRINGSPRING
-
2609181-14195 SHIM (14X24X1)SHIM (14X24X1)
-
2708331-3114A CIRCLIPCIRCLIP
-
2825520-01H10 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2925525-01H10 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
3025600-14J10 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3125652-20C00 ...RUBBER, GEAR PEDAL...RUBBER, GEAR PEDAL
-
3225617-03F10 SHAFT, GEAR SHIFT LEVERSHAFT, GEAR SHIFT LEVER
-
3325681-14J00 BRACKET, GEAR SHIFT LEVERBRACKET, GEAR SHIFT LEVER
-
3409106-08167 BOLT (8X20)BOLT (8X20)
-
3509140-06025 NUTNUT
-
3609160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3701500-0625A BOLTBOLT
-
3808310-0006A NUTNUT
-
3908331-3112A CIRCLIPCIRCLIP
-
4037730-14J00 SENSOR ASSY, GEAR POSITIONSENSOR ASSY, GEAR POSITION
-
4109280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4209106-05023 BOLT (5X16)BOLT (5X16)
