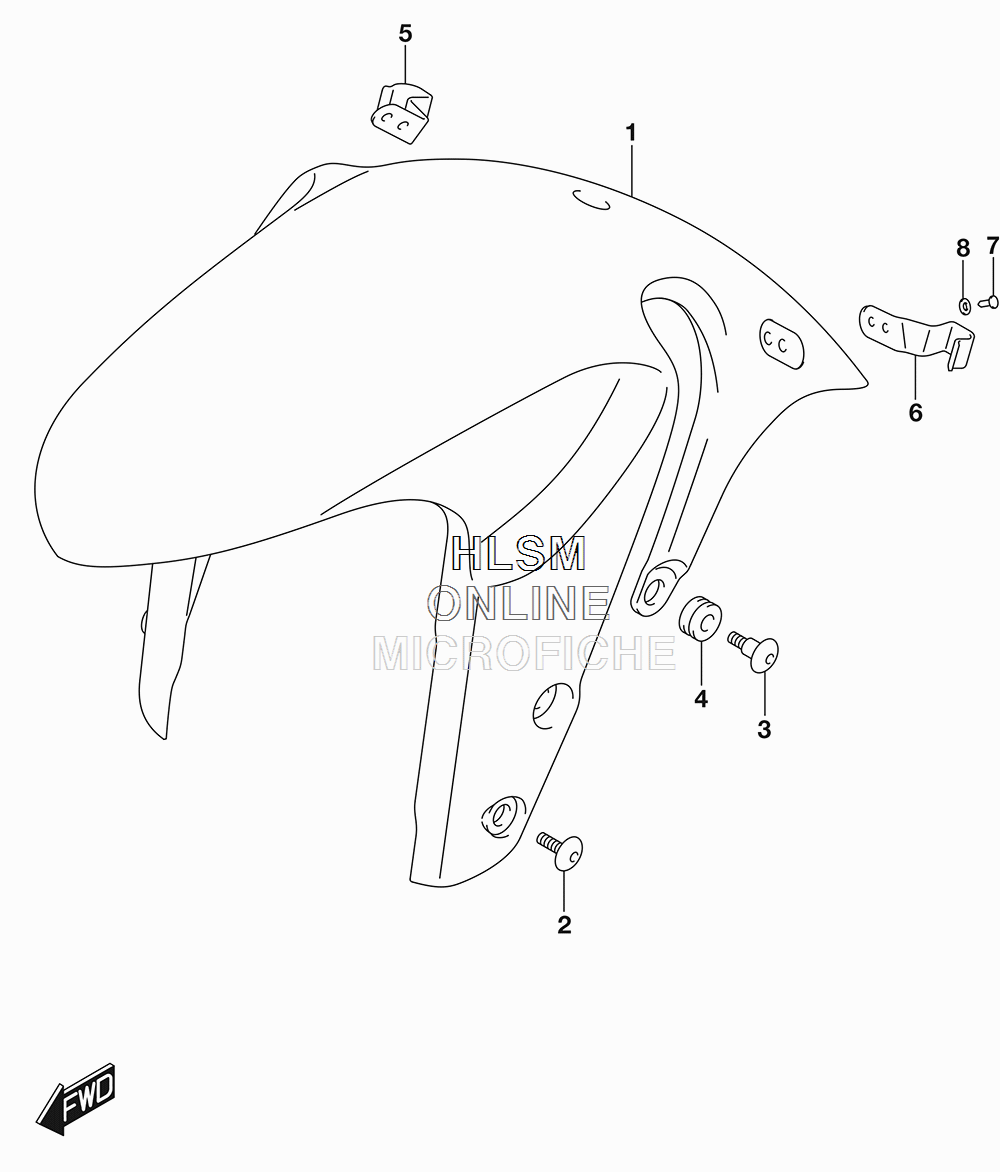

FENDER - FRONT (CALIF.) для Suzuki GSX-S1000 - 2018 года выпуска
-
№АртикулНазвание
-
153111-04K00-YVB FENDER, FRONT (YVB - BLACK)FENDER, FRONT (YVB - BLACK)
-
209139-06169 SCREW (6X16) (FRONT)SCREW (6X16) (FRONT)
-
309139-06190 BOLT (6X20) (REAR)BOLT (6X20) (REAR)
-
409320-09016 CUSHION (REAR)CUSHION (REAR)
-
553117-04K00 CLAMP, BRAKE HOSE (RH)CLAMP, BRAKE HOSE (RH)
-
653118-04K00 CLAMP, BRAKE HOSE (LH)CLAMP, BRAKE HOSE (LH)
-
709229-04038 RIVETRIVET
