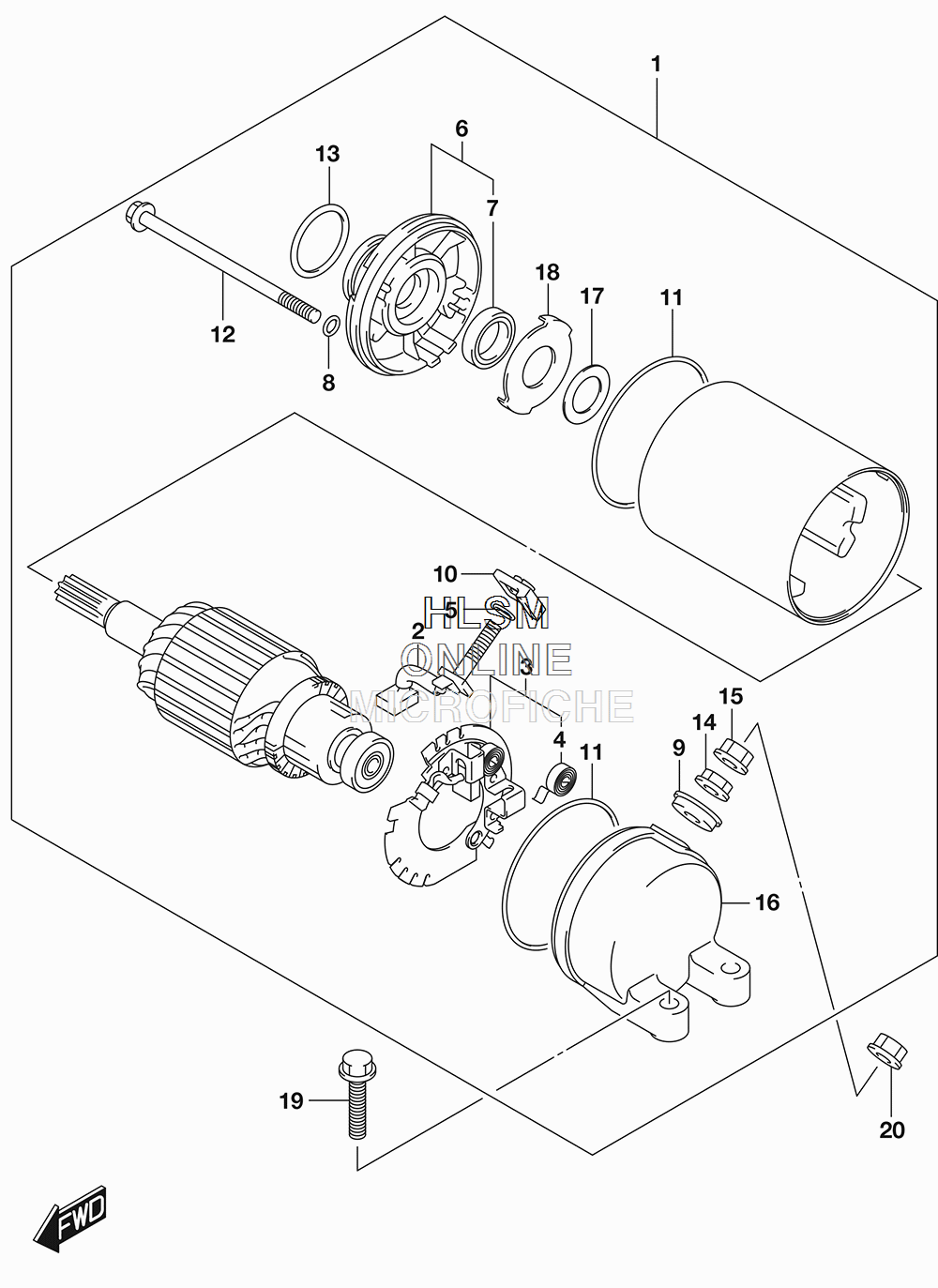

STARTING MOTOR для Suzuki GSX-S1000 - 2018 года выпуска
-
№АртикулНазвание
-
131100-04K00 MOTOR ASSY, STARTINGMOTOR ASSY, STARTING
-
231130-38300 ...BRUSH (+)...BRUSH (+)
-
331132-27A01 ...HOLDING ASSY, BRUSH...HOLDING ASSY, BRUSH
-
431135-65010 ......SPRING......SPRING
-
531143-38300 ...O RING...O RING
-
631150-04K00 ...HOUSING ASSY, STARTING...HOUSING ASSY, STARTING
-
731153-49210 ......SEAL, OIL......SEAL, OIL
-
831156-38300 ...O RING...O RING
-
931172-38300 ...BUSHING...BUSHING
-
1031171-38300 ...BUSHING...BUSHING
-
1131264-44110 ...O RING...O RING
-
1231281-88C00 ...BOLT...BOLT
-
1309280-24003 ...O RING (D:3,ID:24.5)...O RING (D:3,ID:24.5)
-
1408310-00067 ...NUT...NUT
-
1508361-3506A ...NUT...NUT
-
1631170-04K00 ...FRAME, STARTER END...FRAME, STARTER END
-
1731361-38300 ...SHIM...SHIM
-
1831361-43400 ...WASHER...WASHER
-
1901547-0625A BOLTBOLT
-
2008361-3506A NUTNUT
