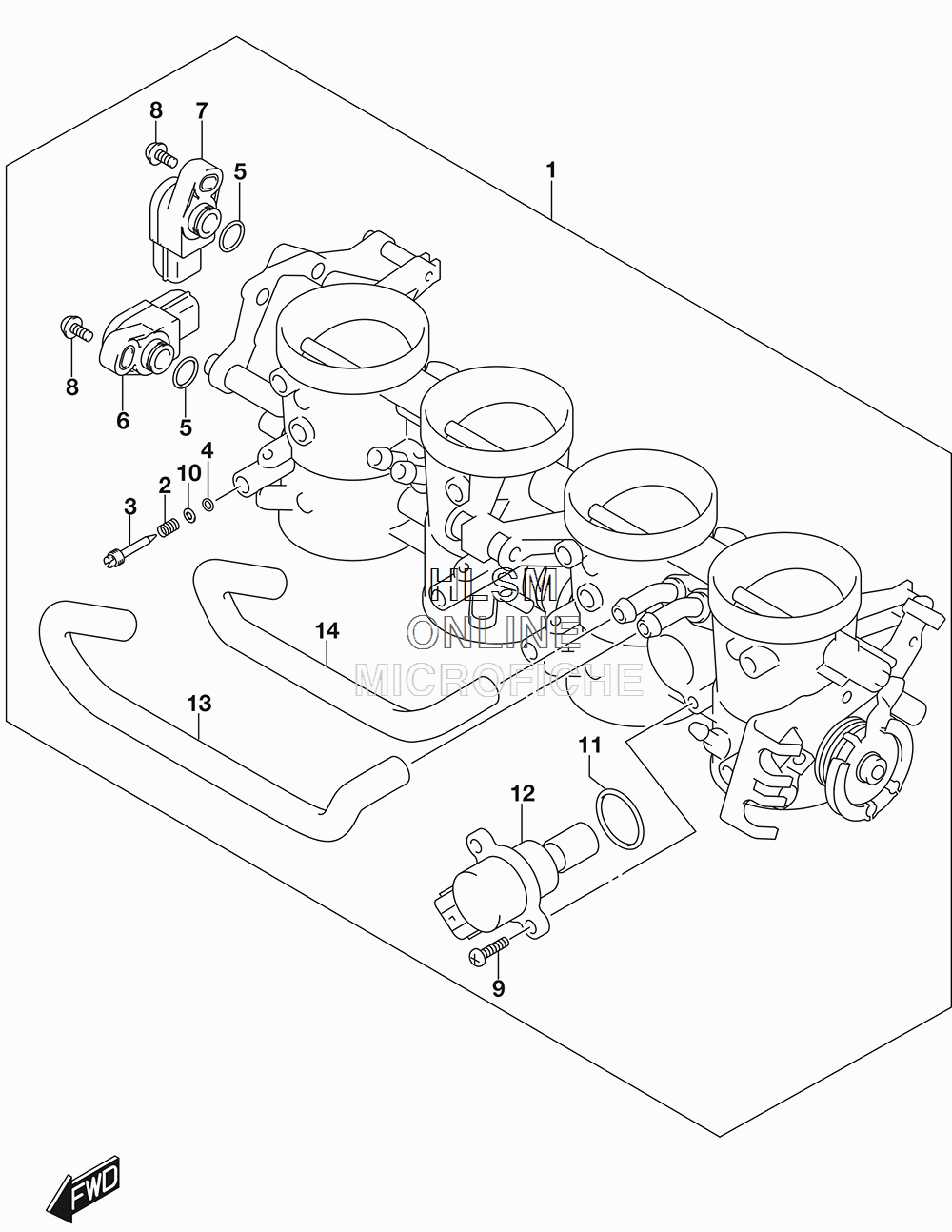

CARBURETOR - THROTTLE BODY (CALIF.) для Suzuki GSX-S1000A ABS - 2018 года выпуска
-
№АртикулНазвание
-
113405-04K30 BODY ASSY, THROTTLEBODY ASSY, THROTTLE
-
213268-48700 ...SPRING...SPRING
-
313269-33E00 ...SCREW...SCREW
-
413295-29900 ...O RING...O RING
-
513575-29G00 ...O RING...O RING
-
613580-14J00 ...SENSOR...SENSOR
-
713580-29G00 ...SENSOR ASSY...SENSOR ASSY
-
813605-02F00 ...SCREW...SCREW
-
913602-05A40 ...SCREW...SCREW
-
1013606-47A00 ...WASHER...WASHER
-
1113679-37H00 ...O RING...O RING
-
1218117-14J01 ...MOTOR ASSY...MOTOR ASSY
-
1313698-08J00 ...HOSE...HOSE
-
1413698-08J10 ...HOSE...HOSE
