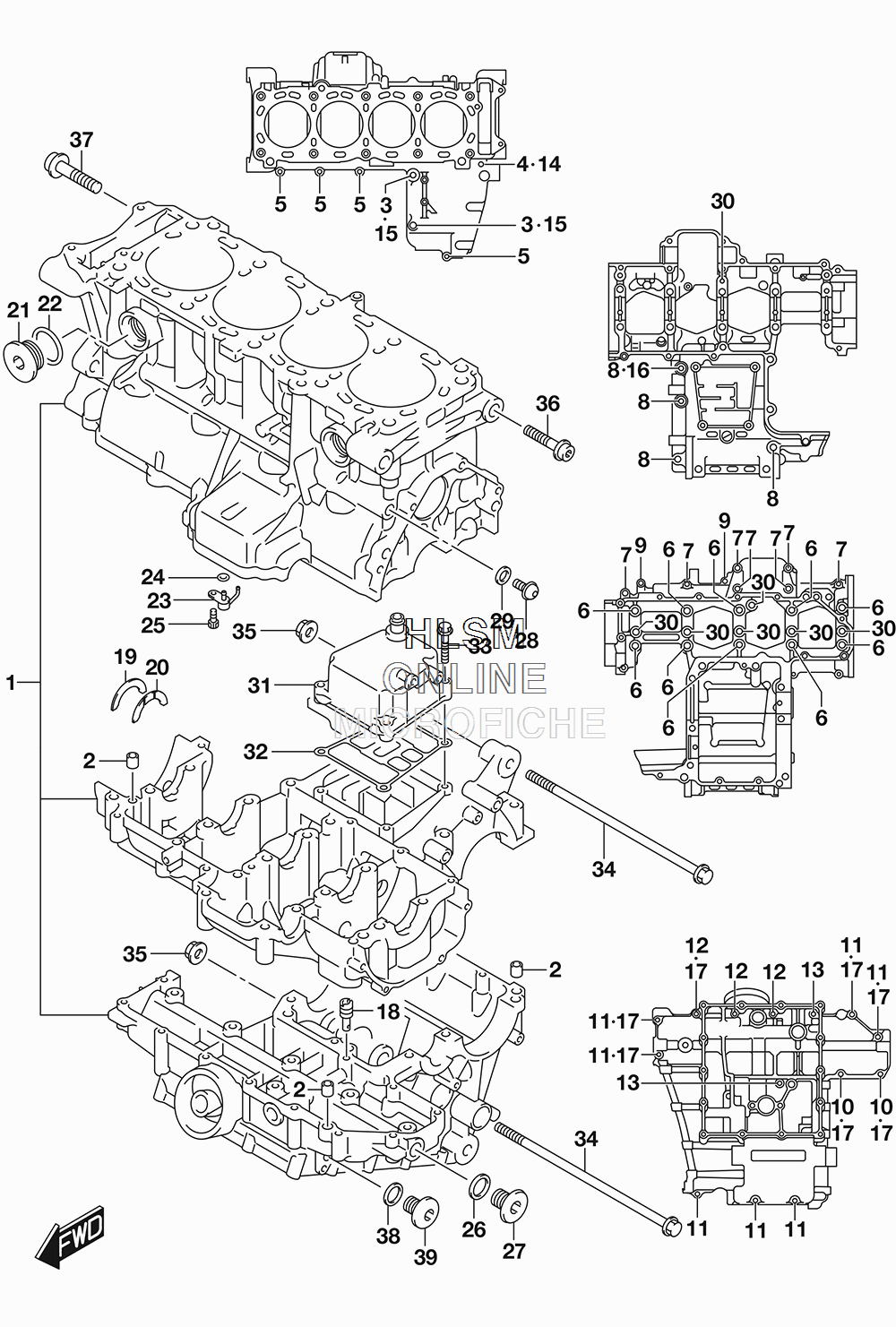

CRANKCASE для Suzuki GSX-S1000A ABS - 2018 года выпуска
-
№АртикулНазвание
-
111301-04840 CRANKCASE SETCRANKCASE SET
-
211319-33E50 ...PIN...PIN
-
309106-08198 ...BOLT (8X120)...BOLT (8X120)
-
401547-0680A ...BOLT...BOLT
-
501547-0640A ...BOLT...BOLT
-
609103-09012 ...BOLT (9X95)...BOLT (9X95)
-
709103-08339 ...BOLT (8X55)...BOLT (8X55)
-
807120-0865A ...BOLT...BOLT
-
901547-0640A ...BOLT...BOLT
-
1001547-0630A ...BOLT...BOLT
-
1101547-0640A ...BOLT...BOLT
-
1201547-0660A ...BOLT...BOLT
-
1301547-0670A ...BOLT...BOLT
-
1409168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
1509168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1609168-08016 ...GASKET (8.2X14X1)...GASKET (8.2X14X1)
-
1709168-06023 ...GASKET (5.8X13X1.2)...GASKET (5.8X13X1.2)
-
1809493-28012 ...JET, 140...JET, 140
-
1912228-48B00-0E0 ...BEARING, THRUST (RH) (GREEN)...BEARING, THRUST (RH) (GREEN)
-
20-112228-48B00-0B0 ...BEARING, THRUST (LH) (BROWN)...BEARING, THRUST (LH) (BROWN)
-
20-212228-48B00-0C0 ...BEARING, THRUST (LH) (RED)...BEARING, THRUST (LH) (RED)
-
20-312228-48B00-0D0 ...BEARING, THRUST (LH) (YELLOW)...BEARING, THRUST (LH) (YELLOW)
-
20-412228-48B00-0E0 ...BEARING, THRUST (LH) (GREEN)...BEARING, THRUST (LH) (GREEN)
-
20-512228-48B00-0F0 ...BEARING, THRUST (LH) (BLUE)...BEARING, THRUST (LH) (BLUE)
-
20-612228-48B00-0G0 ...BEARING, THRUST (LH) (ORANGE)...BEARING, THRUST (LH) (ORANGE)
-
20-712228-48B00-0H0 ...BEARING, THRUST (LH) (BLACK)...BEARING, THRUST (LH) (BLACK)
-
2111318-35F00 ...PLUG, WATER JACKET...PLUG, WATER JACKET
-
2209280-20002 ...O RING (D:3.1,ID:19.4)...O RING (D:3.1,ID:19.4)
-
2311390-21H01 JET, PISTON COOLINGJET, PISTON COOLING
-
2409280-04004 O RING (D:1.2,ID:4)O RING (D:1.2,ID:4)
-
2509106-06075 BOLT (6X12)BOLT (6X12)
-
2609168-16002 GASKET (16X22X2)GASKET (16X22X2)
-
2709248-16013 PLUGPLUG
-
2809248-10010 PLUG (10X10)PLUG (10X10)
-
2909168-10002 GASKET (10X14X3.6)GASKET (10X14X3.6)
-
3009280-08012 O RING (D:1.9,ID:7.8)O RING (D:1.9,ID:7.8)
-
3111370-04K00 COVER, BREATHERCOVER, BREATHER
-
3211484-35F00 GASKET, BREATHER COVERGASKET, BREATHER COVER
-
3301547-0630A BOLTBOLT
-
3409103-10205 BOLT (10X225)BOLT (10X225)
-
3509159-10115 NUTNUT
-
3609106-10069 BOLT (10X45)BOLT (10X45)
-
3709106-10070 BOLT (10X55)BOLT (10X55)
-
3809168-14002 GASKET (13.8X18.8X4.8)GASKET (13.8X18.8X4.8)
-
3909248-14005 PLUG (14X12)PLUG (14X12)
