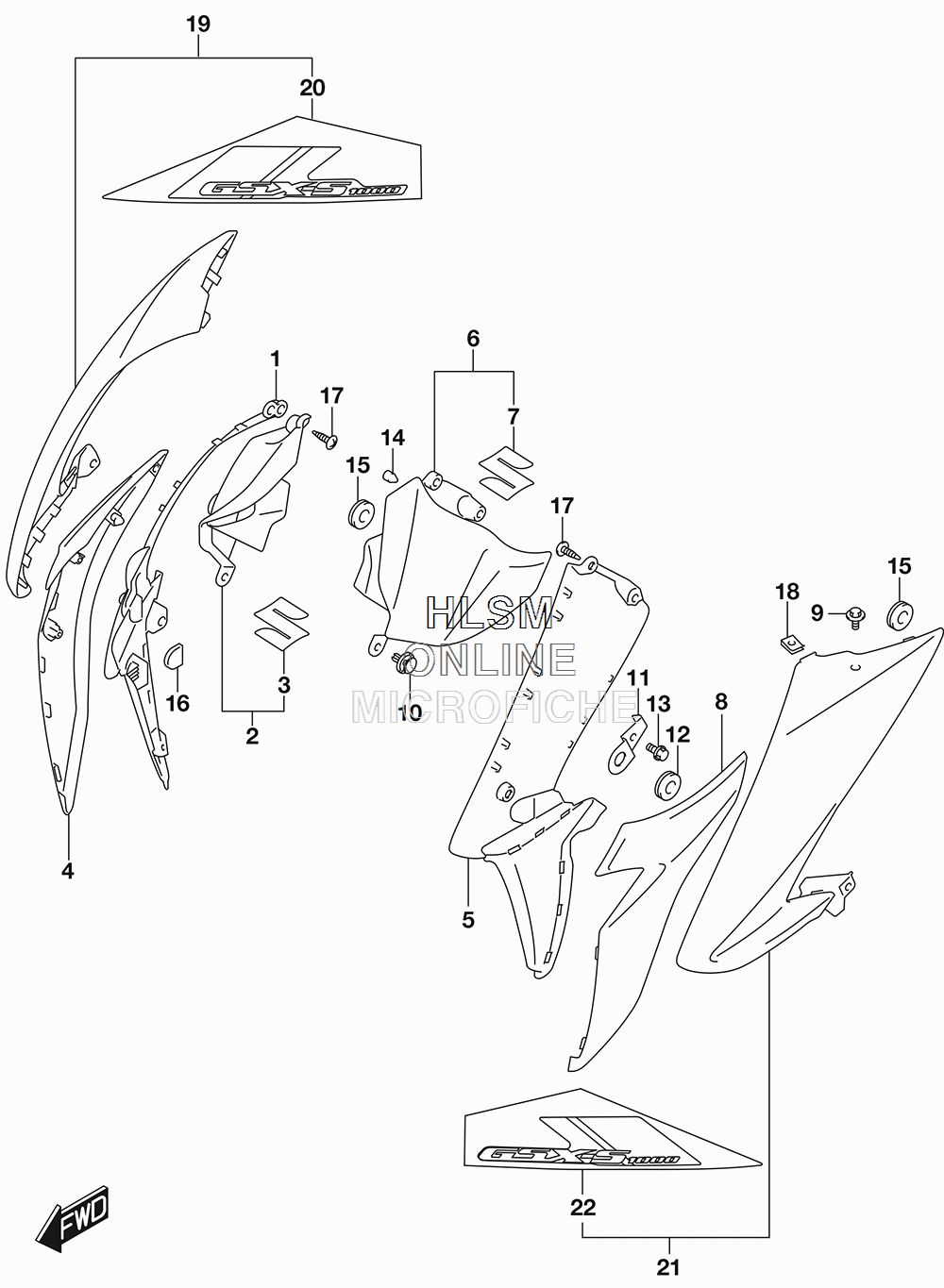

FRAME BODY COVER (CALIF.) для Suzuki GSX-S1000Z - 2018 года выпуска
-
№АртикулНазвание
-
147531-04K00 COVER, FRAME BODY INNER (RH)COVER, FRAME BODY INNER (RH)
-
247570-04K00 COVER ASSY, INTAKE (RH)COVER ASSY, INTAKE (RH)
-
368111-47HA0 ...EMBLEM,S...EMBLEM,S
-
447533-04K00-YKV COVER, FRAME BODY LOWER (RH) (YKV - BLACK)COVER, FRAME BODY LOWER (RH) (YKV - BLACK)
-
547541-04K00 COVER, FRAME BODY INNER (LH)COVER, FRAME BODY INNER (LH)
-
647580-04K00 COVER ASSY, INTAKE (LH)COVER ASSY, INTAKE (LH)
-
768111-47HA0 ...EMBLEM,S...EMBLEM,S
-
847543-04K00-YKV COVER, FRAME BODY LOWER (LH) (YKV - BLACK)COVER, FRAME BODY LOWER (LH) (YKV - BLACK)
-
909139-05064 SCREW (5X13)SCREW (5X13)
-
1094479-35F00 CLIPCLIP
-
1147539-04K00 BRACKET, FRAME BODY COVERBRACKET, FRAME BODY COVER
-
1209320-08018 CUSHIONCUSHION
-
1301547-0612B BOLTBOLT
-
1409321-06013 CUSHIONCUSHION
-
1509320-06504 CUSHIONCUSHION
-
1609329-18001 CUSHIONCUSHION
-
1703541-0516A SCREWSCREW
-
1809148-05052 NUTNUT
-
1947510-04K20-YKV COVER, FRAME BODY (RH) (YKV - BLACK)COVER, FRAME BODY (RH) (YKV - BLACK)
-
2068135-04K20-BGG ...TAPE, FRAME BODY COVER (RH) (BGG - SILVER/RED/BLACK/RED/BLACK)...TAPE, FRAME BODY COVER (RH) (BGG - SILVER/RED/BLACK/RED/BLACK)
-
2147520-04K20-YKV COVER, FRAME BODY (LH) (YKV - BLACK)COVER, FRAME BODY (LH) (YKV - BLACK)
