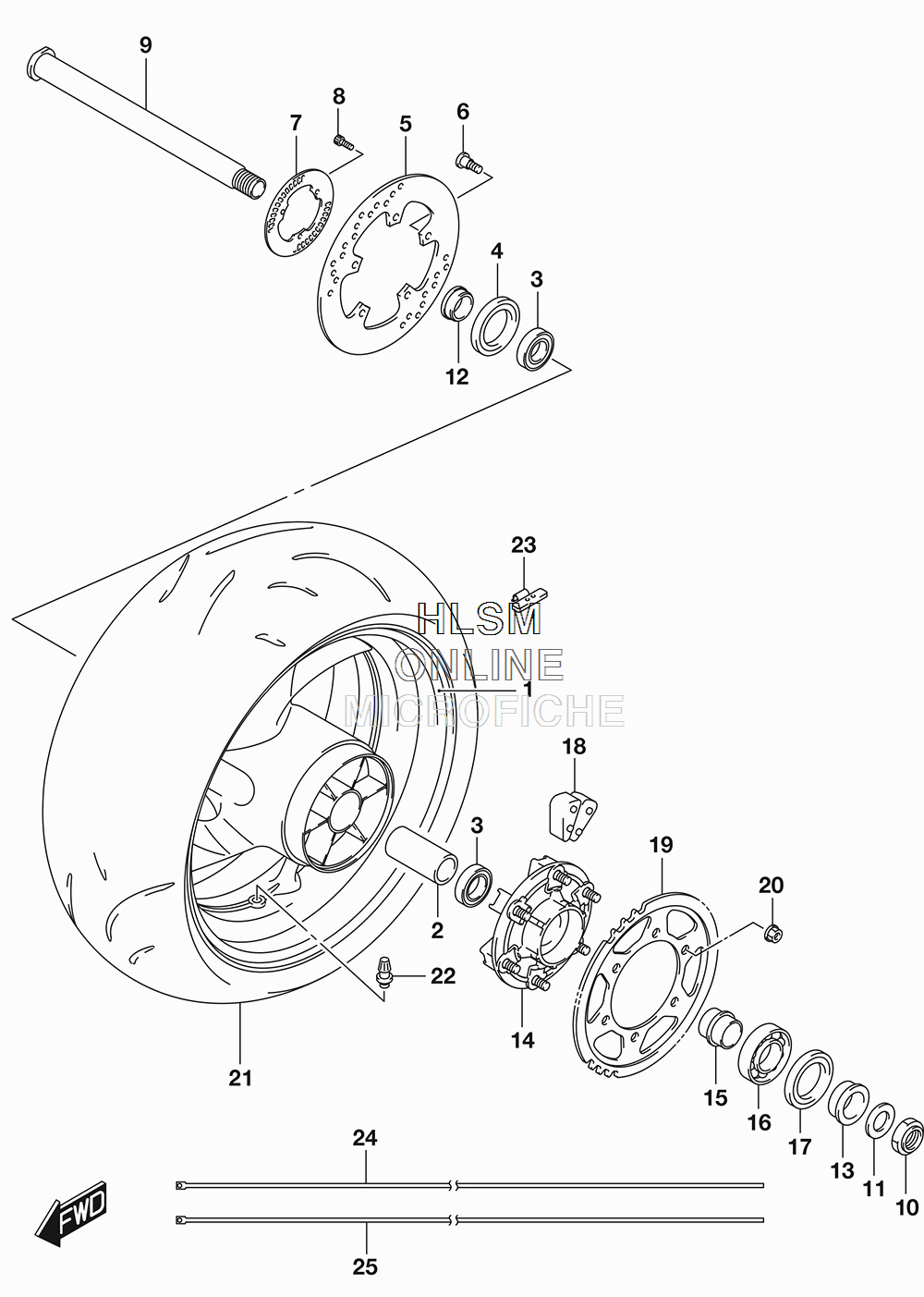

WHEEL - REAR (CALIF.) для Suzuki GSX-S1000Z - 2018 года выпуска
-
№АртикулНазвание
-
164111-04K02-019 WHEEL, REAR (17M/CXMT6.00) (019 - BLACK)WHEEL, REAR (17M/CXMT6.00) (019 - BLACK)
-
264731-35F10 SPACER, HUB BEARINGSPACER, HUB BEARING
-
309262-28052 BEARING (28X52X12)BEARING (28X52X12)
-
409284-37001 OIL SEAL (37X52X8)OIL SEAL (37X52X8)
-
569211-04K00 DISC, REAR BRAKEDISC, REAR BRAKE
-
609106-08160 BOLT (8X21)BOLT (8X21)
-
764162-04K00 RING, SPEED SENSOR RR (50T)RING, SPEED SENSOR RR (50T)
-
807130-0512A BOLTBOLT
-
964711-49G30 AXLE, REARAXLE, REAR
-
1064721-17K00 NUTNUT
-
1109160-25070 WASHER (25.2X42X3.2)WASHER (25.2X42X3.2)
-
1264741-35F00 SPACER, AXLE (RH)SPACER, AXLE (RH)
-
1364751-47H00 SPACER, AXLE (LH)SPACER, AXLE (LH)
-
1464610-04K00 DRUM, REAR SPROCKETDRUM, REAR SPROCKET
-
1564733-35F00 RETAINER, SPROCKET DRUMRETAINER, SPROCKET DRUM
-
1609262-32022 BEARING (32X65X17)BEARING (32X65X17)
-
1709285-39001 OIL SEAL (39X65X7)OIL SEAL (39X65X7)
-
1864651-47H10 ABSORBER, HUB SHOCKABSORBER, HUB SHOCK
-
1964511-04K00 SPROCKET, REAR (NT:44)SPROCKET, REAR (NT:44)
-
2008319-3110A NUTNUT
-
2165110-04K00 TIRE, REAR, 190/50ZR17 M/C (73W) (D214 M T/L(N) DUNLOP)TIRE, REAR, 190/50ZR17 M/C (73W) (D214 M T/L(N) DUNLOP)
-
2243130-24A00 VALVE ASSY, WHEEL RIM (TR412)VALVE ASSY, WHEEL RIM (TR412)
-
23-155411-22H00 BALANCER, WHEEL (10G)BALANCER, WHEEL (10G)
-
23-255412-22H00 BALANCER, WHEEL (20G)BALANCER, WHEEL (20G)
-
23-355413-22H00 BALANCER, WHEEL (30G)BALANCER, WHEEL (30G)
-
2468251-04K00-BGH TAPE, WHEEL (RH) (BGH - SILVER/RED/RED/BLACK)TAPE, WHEEL (RH) (BGH - SILVER/RED/RED/BLACK)
-
2568252-04K00-BGH TAPE, WHEEL (LH) (BGH - SILVER/RED/RED/BLACK)TAPE, WHEEL (LH) (BGH - SILVER/RED/RED/BLACK)
