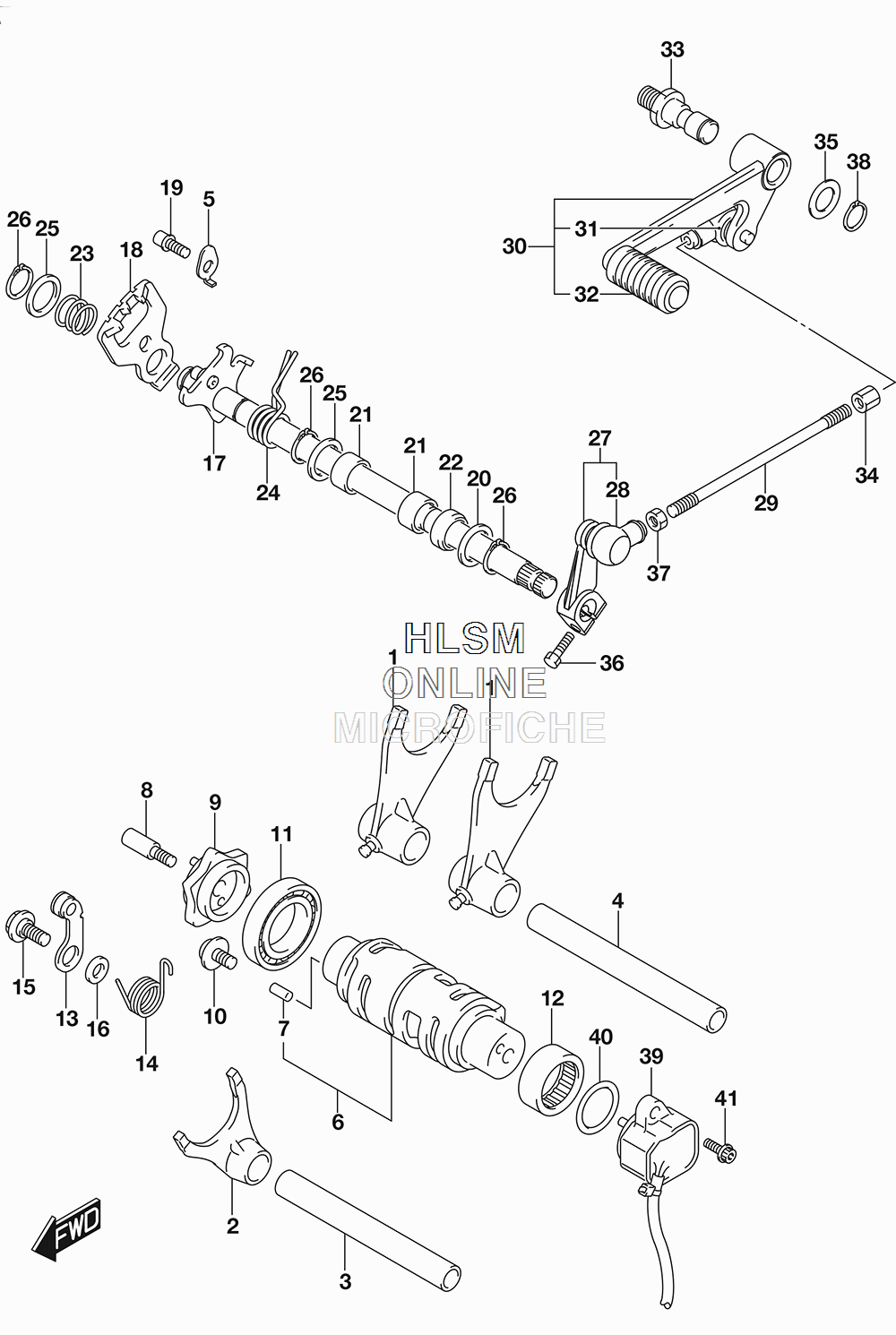

GEAR SHIFTING для Suzuki GSX-S750 - 2018 года выпуска
-
№АртикулНазвание
-
125211-35F11 FORK, GEAR SHIFT, NO.1FORK, GEAR SHIFT, NO.1
-
225231-35F11 FORK, GEAR SHIFT, NO.3FORK, GEAR SHIFT, NO.3
-
325411-26D01 SHAFT, GEAR SHIFT FORK, NO.2SHAFT, GEAR SHIFT FORK, NO.2
-
425411-35F00 SHAFT, GEAR SHIFT FORK, NO.1SHAFT, GEAR SHIFT FORK, NO.1
-
525451-35F00 RETAINER, SHIFT FORK SHAFTRETAINER, SHIFT FORK SHAFT
-
625310-35F00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
704221-04089 ...PIN...PIN
-
825312-42F01 BOLT, GEAR SHIFT CAM PLATEBOLT, GEAR SHIFT CAM PLATE
-
925381-13E30 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
1009136-06147 SCREW (6X12)SCREW (6X12)
-
1109262-25006 BEARING (25X47X8)BEARING (25X47X8)
-
1209263-25018 BEARING (25X32X12) (LH)BEARING (25X32X12) (LH)
-
1325350-35F00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1425355-05G00 SPRING, SHIFT CAM STOPPER ARMSPRING, SHIFT CAM STOPPER ARM
-
1509111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1608211-06141 WASHERWASHER
-
1725510-08J00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1825512-06G10 PLATE, GEAR SHIFT CAM DRIVEPLATE, GEAR SHIFT CAM DRIVE
-
1925671-35F00 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
2009160-14016 WASHER (14X29X0.8) (LH)WASHER (14X29X0.8) (LH)
-
2109263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
2209283-14006 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2309440-17009 SPRINGSPRING
-
2409444-20001 SPRINGSPRING
-
2509181-14167 SHIM (14X22X1)SHIM (14X22X1)
-
2608331-3114A CIRCLIPCIRCLIP
-
2725520-06G20 ARM, GEAR SHIFT LINKARM, GEAR SHIFT LINK
-
2825526-47000 ...COVER, DUST...COVER, DUST
-
2925525-12B10 ROD, GEAR SHIFT LINKROD, GEAR SHIFT LINK
-
3025600-08J10 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3125526-47000 ...COVER, DUST...COVER, DUST
-
3225652-20C00 ...RUBBER, GEAR SHIFT PEDAL...RUBBER, GEAR SHIFT PEDAL
-
3325617-03F10 SHAFT, GEAR SHIFT LEVERSHAFT, GEAR SHIFT LEVER
-
3409140-06025 NUTNUT
-
3509160-12011 WASHER (12.5X20X1)WASHER (12.5X20X1)
-
3601547-0620A BOLTBOLT
-
3708310-0006A NUTNUT
-
3808331-3112A CIRCLIPCIRCLIP
-
3937730-08J00 SENSOR ASSY, GEAR POSITIONSENSOR ASSY, GEAR POSITION
-
4009280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4109106-05023 BOLT (5X16)BOLT (5X16)
