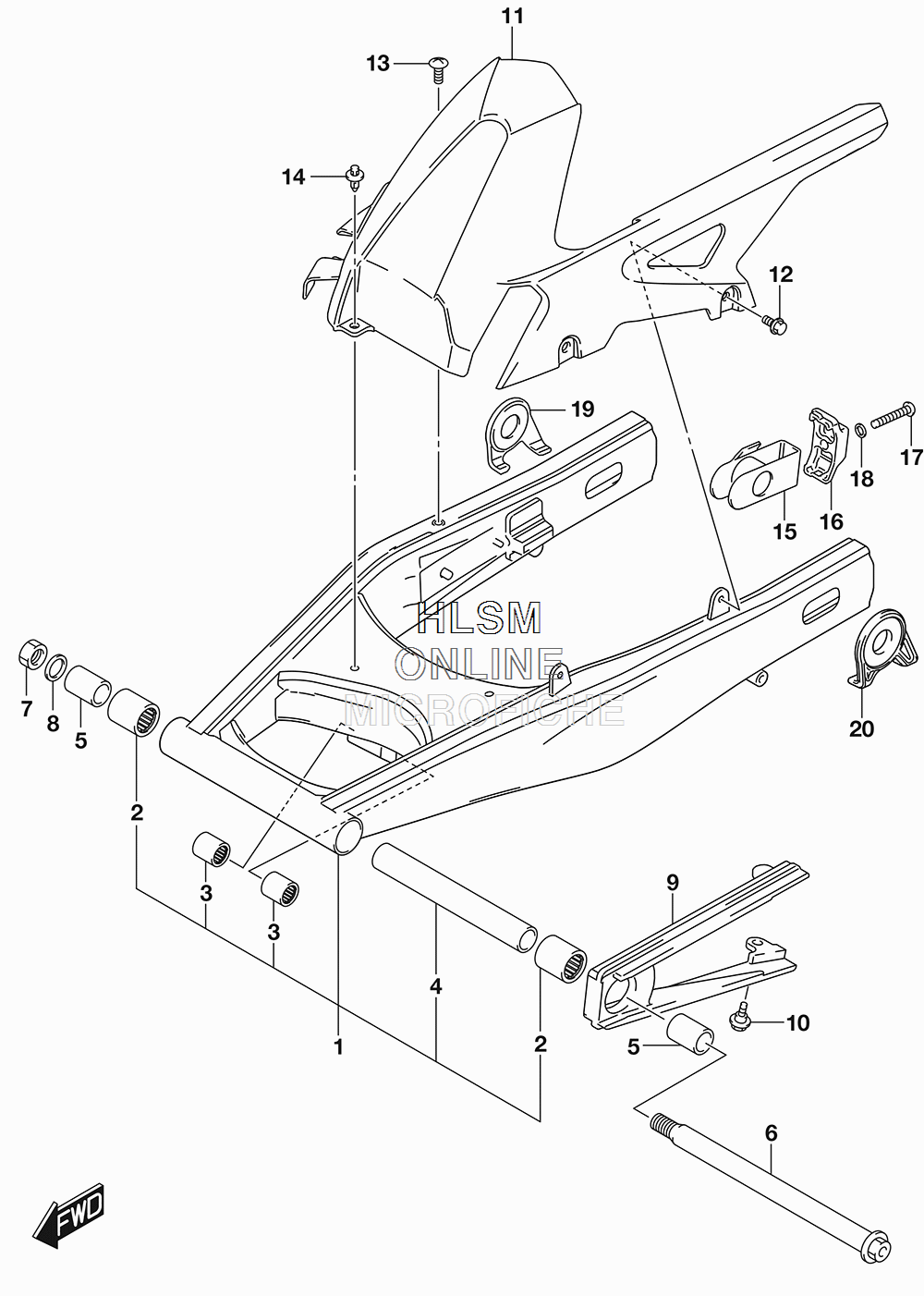

REAR SWINGARM (EXCEPT CALIF.) для Suzuki GSX-S750 - 2018 года выпуска
-
№АртикулНазвание
-
161000-13K00-YAP SWINGARM ASSY, REAR (YAP - BLACK)SWINGARM ASSY, REAR (YAP - BLACK)
-
209263-25059 ...BEARING (25X33X35)...BEARING (25X33X35)
-
309263-17037 ...BEARING (17X24X25)...BEARING (17X24X25)
-
461282-17C00 ...SPACER, PIVOT CENTER...SPACER, PIVOT CENTER
-
561251-21E00 SPACER, PIVOTSPACER, PIVOT
-
661211-31E00 SHAFT, PIVOTSHAFT, PIVOT
-
709159-18007 NUTNUT
-
809160-18030 WASHER (18.5X28X2.6)WASHER (18.5X28X2.6)
-
961273-13K00 BUFFER, CHAIN TOUCH DEFENSEBUFFER, CHAIN TOUCH DEFENSE
-
1009111-06072 BOLT (6X17.8)BOLT (6X17.8)
-
1161310-13K00 CASE, CHAINCASE, CHAIN
-
1209111-06107 BOLT (6X12)BOLT (6X12)
-
1309139-06113 SCREW (6X16)SCREW (6X16)
-
1409409-08308-5ES CLIP (5ES - BLACK)CLIP (5ES - BLACK)
-
1561410-13K00 ADJUSTER, CHAINADJUSTER, CHAIN
-
1661421-13K00 PLATE, CHAIN ADJUSTER GUIDEPLATE, CHAIN ADJUSTER GUIDE
-
1709106-08119 BOLT (8X50)BOLT (8X50)
-
1809164-08015 WASHERWASHER
-
1961445-13K00 WASHER, CHAIN ADJUSTER (RH)WASHER, CHAIN ADJUSTER (RH)
-
2061446-13K00 WASHER, CHAIN ADJUSTER (LH)WASHER, CHAIN ADJUSTER (LH)
