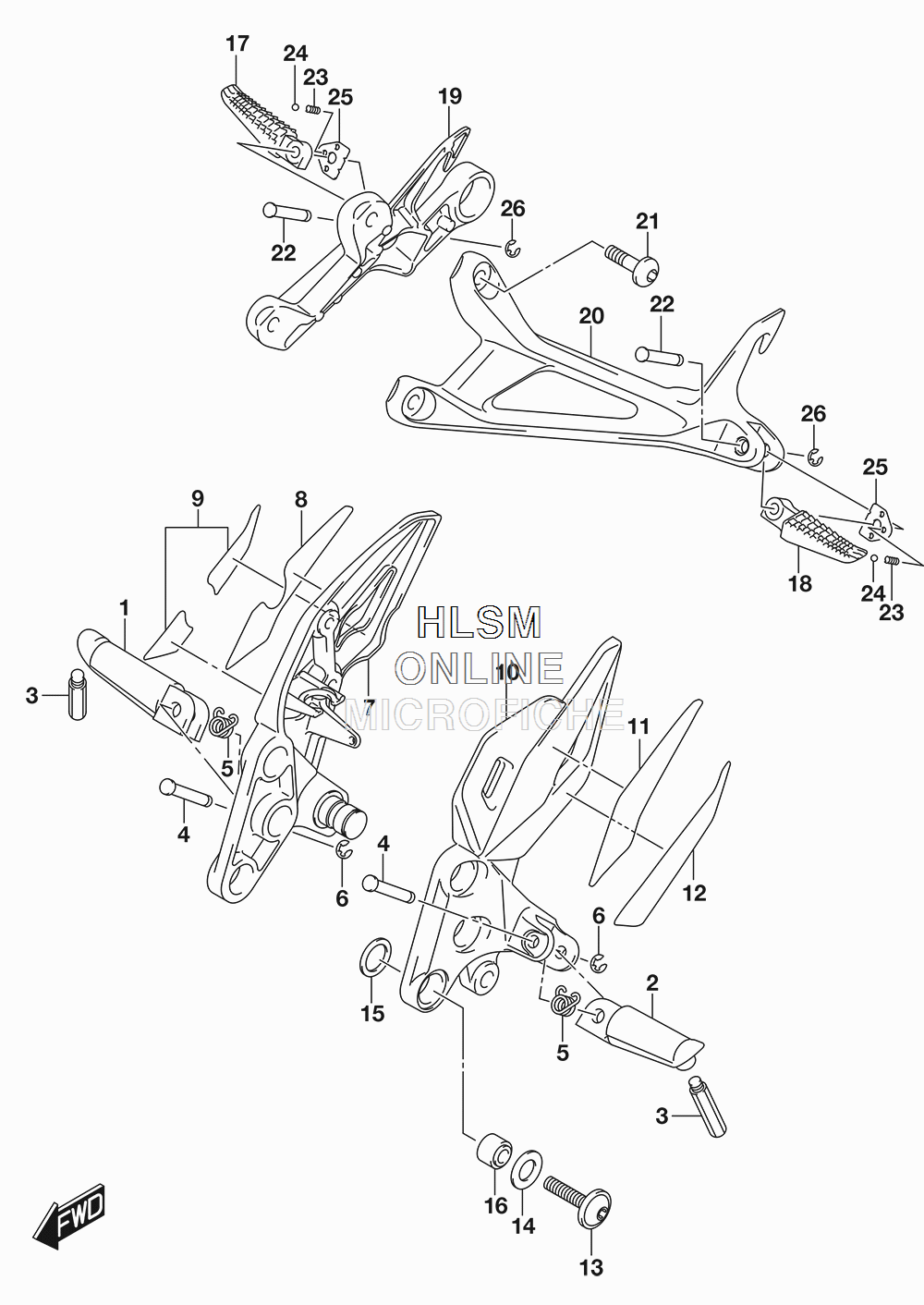

FOOTREST для Suzuki GSX-S750AZ - 2018 года выпуска
-
№АртикулНазвание
-
143516-35F20 BAR, FRONT FOOTREST (RH)BAR, FRONT FOOTREST (RH)
-
243526-35F20 BAR, FRONT FOOTREST (LH)BAR, FRONT FOOTREST (LH)
-
343576-48B60 BOLT, BANK SENSORBOLT, BANK SENSOR
-
409208-08019 PINPIN
-
543581-13K00 SPRING, FRONT FOOTRESTSPRING, FRONT FOOTREST
-
608332-1106A E RINGE RING
-
743510-08J10 BRACKET, FRONT FOOTREST (RH)BRACKET, FRONT FOOTREST (RH)
-
843571-13K00 TAPE, FR FOOTREST NO.1 (RH)TAPE, FR FOOTREST NO.1 (RH)
-
943573-13K00 TAPE, FR FOOTREST NO.2 (RH)TAPE, FR FOOTREST NO.2 (RH)
-
1043521-08J10 BRACKET, FRONT FOOTREST (LH)BRACKET, FRONT FOOTREST (LH)
-
1143572-13K00 TAPE, FR FOOTREST NO.1 (LH)TAPE, FR FOOTREST NO.1 (LH)
-
1243574-13K00 TAPE, FR FOOTREST NO.2 (LH)TAPE, FR FOOTREST NO.2 (LH)
-
1309106-08147 BOLT (8X30)BOLT (8X30)
-
1409161-13004 WASHER (13.7X24X2)WASHER (13.7X24X2)
-
1509161-17002 WASHER (17.2X24X2.2)WASHER (17.2X24X2.2)
-
1609319-08045 BUSH (8.4X20X16)BUSH (8.4X20X16)
-
1743611-37H30 BAR, PILLION FOOTREST (RH)BAR, PILLION FOOTREST (RH)
-
1843621-37H30 BAR, PILLION FOOTREST (LH)BAR, PILLION FOOTREST (LH)
-
1943811-08J00-YAP BRACKET, PILLION FOOTREST (RH) (YAP - BLACK)BRACKET, PILLION FOOTREST (RH) (YAP - BLACK)
-
2043821-08J00-YAP BRACKET, PILLION FOOTREST (LH) (YAP - BLACK)BRACKET, PILLION FOOTREST (LH) (YAP - BLACK)
-
2109106-08186 BOLT (8X23)BOLT (8X23)
-
2209208-08020 PINPIN
-
2309440-05003 SPRINGSPRING
-
2406111-07004 BALLBALL
-
2543816-01H20 PLATE, PILLION FOOTREST (RH)PLATE, PILLION FOOTREST (RH)
-
2608332-1106A E RINGE RING
