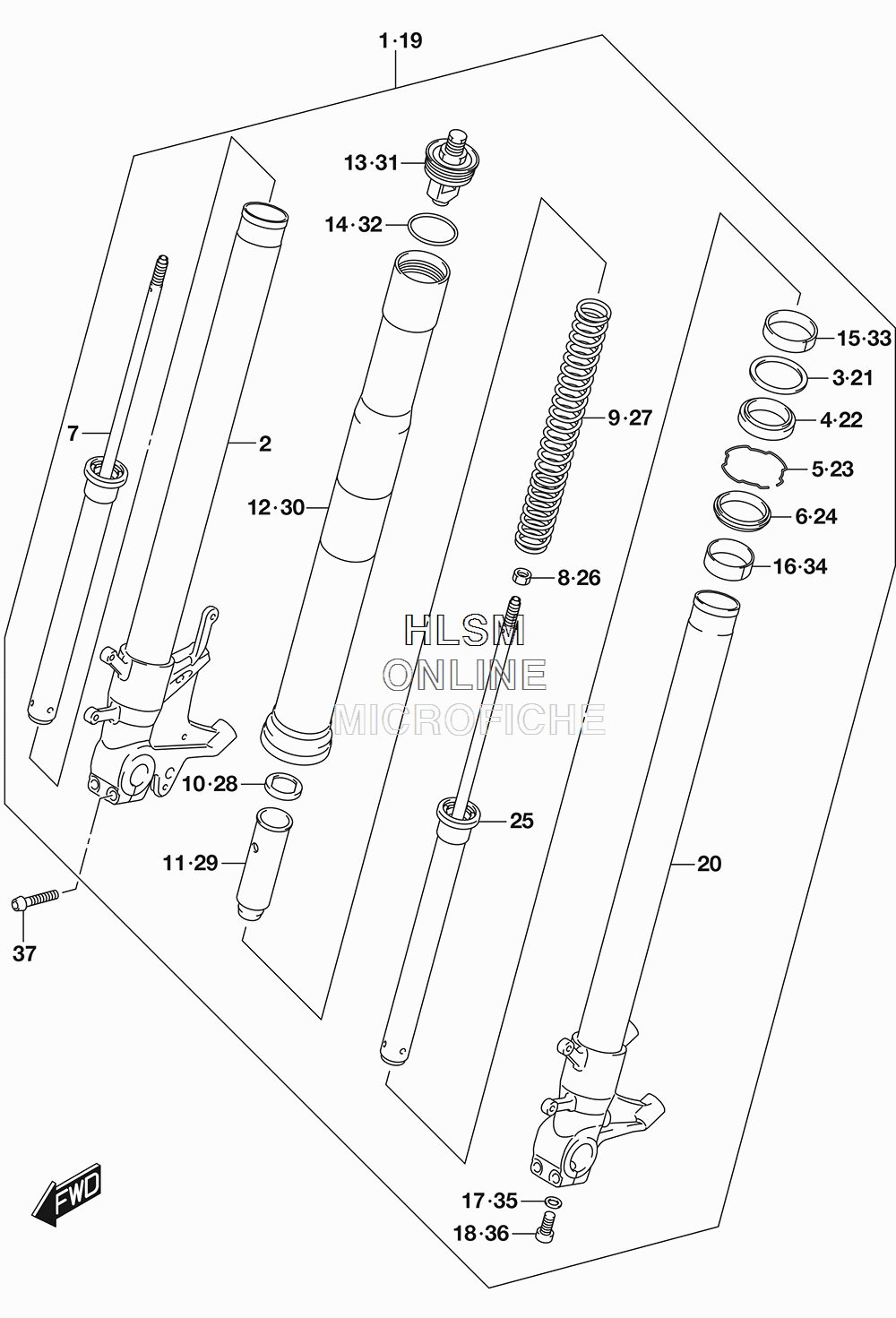

SUSPENSION - FRONT FORK DAMPER (CALIF.) для Suzuki GSX-S750AZ - 2018 года выпуска
-
№АртикулНазвание
-
151103-13K10 DAMPER ASSY, FRONT FORK (RH)DAMPER ASSY, FRONT FORK (RH)
-
251110-13K00 ...TUBE, INNER (RH)...TUBE, INNER (RH)
-
351158-05A00 ...WASHER...WASHER
-
451153-10G50 ...OIL SEAL...OIL SEAL
-
551156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
651173-14F00 ...SEAL, DUST...SEAL, DUST
-
751146-13K00 ...CYLINDER (RH)...CYLINDER (RH)
-
851352-13A60 ...NUT, ROD...NUT, ROD
-
951171-13K00 ...SPRING...SPRING
-
1051158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
1151176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
1251131-13K10 ...TUBE, OUTER...TUBE, OUTER
-
1351351-13K00 ...CAP...CAP
-
1451117-39G20 ...O RING...O RING
-
1551152-13K00 ...SLIDE METAL...SLIDE METAL
-
1651121-26E10 ...PISTON...PISTON
-
1751148-41310 ...GASKET...GASKET
-
1851147-05H00 ...BOLT...BOLT
-
1951104-13K10 DAMPER ASSY, FRONT FORK (LH)DAMPER ASSY, FRONT FORK (LH)
-
2051120-13K00 ...TUBE, INNER (LH)...TUBE, INNER (LH)
-
2151158-05A00 ...WASHER...WASHER
-
2251153-10G50 ...OIL SEAL...OIL SEAL
-
2351156-49440 ...RING, OIL SEAL STOPPER...RING, OIL SEAL STOPPER
-
2451173-14F00 ...SEAL, DUST...SEAL, DUST
-
2551156-13K00 ...CYLINDER (LH)...CYLINDER (LH)
-
2651352-13A60 ...NUT, ROD...NUT, ROD
-
2751171-13K00 ...SPRING...SPRING
-
2851158-40F30 ...GUIDE, SPRING...GUIDE, SPRING
-
2951176-40F30 ...SPACER, SPRING...SPACER, SPRING
-
3051131-13K10 ...TUBE, OUTER...TUBE, OUTER
-
3151351-13K00 ...CAP...CAP
-
3251117-39G20 ...O RING...O RING
-
3351152-13K00 ...SLIDE METAL...SLIDE METAL
-
3451121-26E10 ...PISTON...PISTON
-
3551148-41310 ...GASKET...GASKET
-
3651147-05H00 ...BOLT...BOLT
-
3751166-24F60 BOLTBOLT
