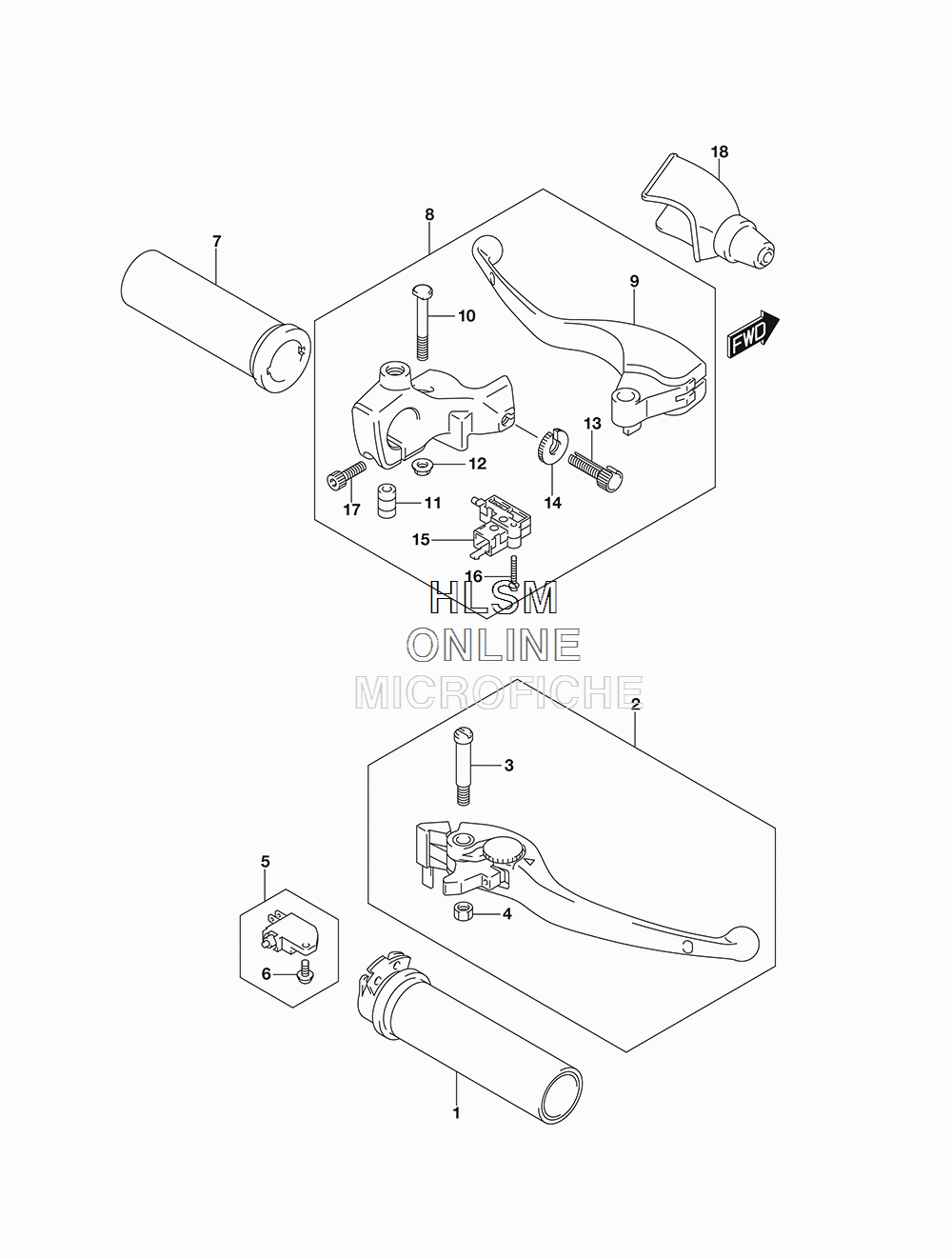

HANDLE LEVER (CANADA) для Suzuki VL1500BT C90 B.O.S.S. - 2018 года выпуска
-
№АртикулНазвание
-
157110-26D10 GRIP, THROTTLEGRIP, THROTTLE
-
257300-48G20 LEVER ASSY, BRAKELEVER ASSY, BRAKE
-
357431-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
408319-2106A ...NUT...NUT
-
557460-14J01 SWITCH ASSY, STOPSWITCH ASSY, STOP
-
657465-17C00 ...SCREW...SCREW
-
757210-26D00 GRIP, (LH)GRIP, (LH)
-
857500-48G31 LEVER ASSY, CLUTCHLEVER ASSY, CLUTCH
-
957621-48G20 ...LEVER, CLUTCH...LEVER, CLUTCH
-
1057531-48G00 ...BOLT, PIVOT...BOLT, PIVOT
-
1157623-48G00 ...COLLAR...COLLAR
-
1208319-3106A ...NUT...NUT
-
1357441-08C00 ...ADJUSTER, CABLE...ADJUSTER, CABLE
-
1457442-08C00 ...NUT, LOCK...NUT, LOCK
-
1557560-05A10 ...SWITCH ASSY, CLUTCH...SWITCH ASSY, CLUTCH
-
1657562-41G01 ...SCREW...SCREW
-
1707130-06207 ...BOLT...BOLT
-
1857541-48G10 COVER, CLUTCH LEVERCOVER, CLUTCH LEVER
