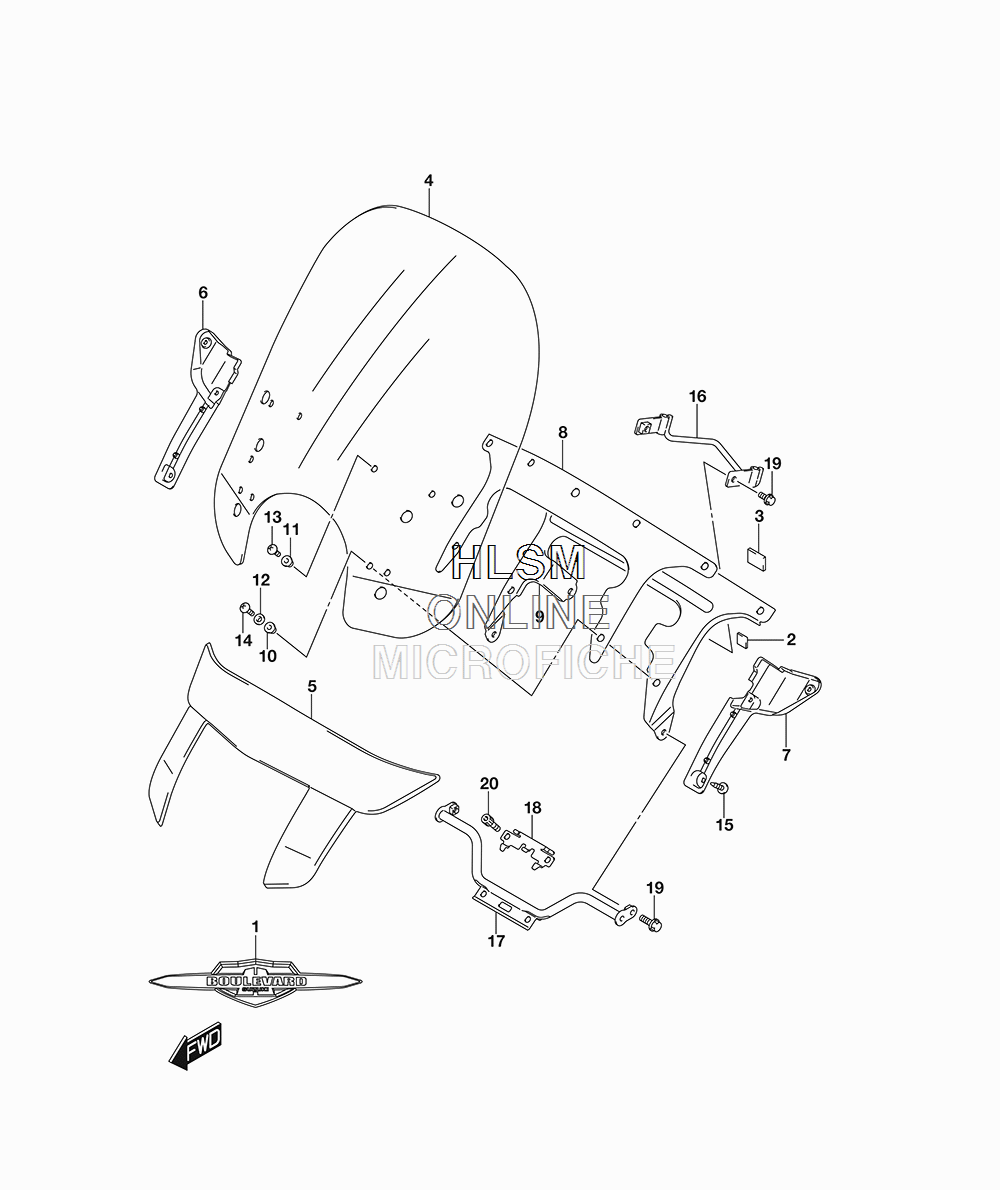

WINDSCREEN (CANADA) для Suzuki VL1500BT C90 B.O.S.S. - 2018 года выпуска
-
№АртикулНазвание
-
168181-06J00 EMBLEM, WINDSCREENEMBLEM, WINDSCREEN
-
233652-48E00 CUSHION, WINDSCREEN FRONT NO.CUSHION, WINDSCREEN FRONT NO.
-
394422-06G00 CUSHION, WINDSCREEN FRONTCUSHION, WINDSCREEN FRONT
-
494611-06J00 WINDSCREENWINDSCREEN
-
594612-06J10 COVER, WINDSCREENCOVER, WINDSCREEN
-
694613-06J00 PANEL, WINDSCREEN (RH)PANEL, WINDSCREEN (RH)
-
794614-06J00 PANEL, WINDSCREEN (LH)PANEL, WINDSCREEN (LH)
-
894616-06J10 CUSHION, WINDSCREEN REARCUSHION, WINDSCREEN REAR
-
994621-06J10 BRACE, WINDSCREENBRACE, WINDSCREEN
-
1009159-05019 NUTNUT
-
1109159-05048 NUTNUT
-
1209161-05017 WASHER (5.2X14X1.5)WASHER (5.2X14X1.5)
-
1302142-1516B SCREWSCREW
-
1402142-1520B SCREWSCREW
-
1503541-0516B SCREWSCREW
-
1694630-06J10 BRACE, WINDSCREEN UPPERBRACE, WINDSCREEN UPPER
-
1794640-06J10 BRACE, WINDSCREEN LOWERBRACE, WINDSCREEN LOWER
-
1894651-06J00 PLATE, WINDSCREEN LOWERPLATE, WINDSCREEN LOWER
-
1901550-0816A BOLTBOLT
-
2007130-0845A BOLTBOLT
