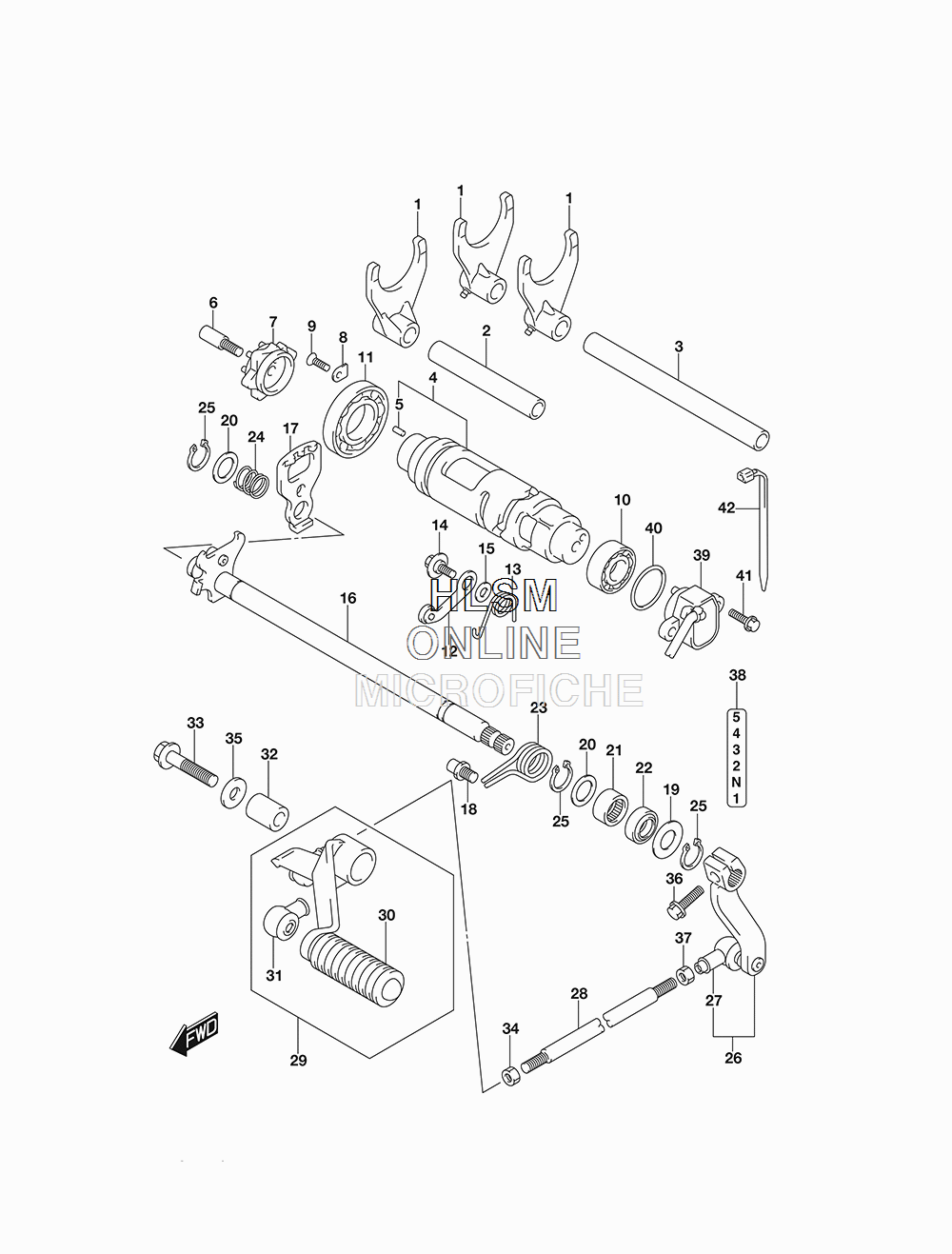

GEAR SHIFTING для Suzuki VZ1500 M90 - 2018 года выпуска
-
№АртикулНазвание
-
125211-17E02 FORK, GEAR SHIFTFORK, GEAR SHIFT
-
225411-38B01 SHAFT, GEAR SHIFT FORKSHAFT, GEAR SHIFT FORK
-
325411-44B00 SHAFT, GEAR SHIFT NO.2SHAFT, GEAR SHIFT NO.2
-
425310-06J00 CAM, GEAR SHIFTCAM, GEAR SHIFT
-
504221-04089 ...PIN...PIN
-
625312-42F01 STOPPER, SHIFT CAM DRIVESTOPPER, SHIFT CAM DRIVE
-
725381-13E00 PLATE, GEAR SHIFT CAMPLATE, GEAR SHIFT CAM
-
824741-20A00 RETAINER, SHIFT CAMRETAINER, SHIFT CAM
-
909126-06011 SCREW (6X12)SCREW (6X12)
-
1008113-69050 BEARING (RH)BEARING (RH)
-
1109263-25018 BEARING (25X32X12) (LH)BEARING (25X32X12) (LH)
-
1225350-24F00 STOPPER, SHIFT CAMSTOPPER, SHIFT CAM
-
1325355-24F00 SPRING, GR SHF CAM STOPPER ARSPRING, GR SHF CAM STOPPER AR
-
1409111-06041 BOLT (6X14.3)BOLT (6X14.3)
-
1508211-06141 WASHERWASHER
-
1625510-40H00 SHAFT, GEAR SHIFTSHAFT, GEAR SHIFT
-
1725512-06G10 PLATE, GEAR SHIFT CAM DRIVEPLATE, GEAR SHIFT CAM DRIVE
-
1825671-01011 STOPPER, GEAR SHIFT ARMSTOPPER, GEAR SHIFT ARM
-
1909160-14016 WASHER (14X29X0.8)WASHER (14X29X0.8)
-
2009181-14167 SHIM (14X22X1)SHIM (14X22X1)
-
2109263-14027 BEARING (14X20X12)BEARING (14X20X12)
-
2209283-14005 OIL SEAL (14X22X7.3)OIL SEAL (14X22X7.3)
-
2309440-17009 SPRINGSPRING
-
2409444-20001 SPRINGSPRING
-
2508331-3114A CIRCLIPCIRCLIP
-
2625520-40H00 ARM, GEAR SHIFTARM, GEAR SHIFT
-
2725526-47000 ...COVER DUST...COVER DUST
-
2825525-17C20 ROD, GEAR SHIFT LINK (L:310)ROD, GEAR SHIFT LINK (L:310)
-
2925600-40H00 LEVER ASSY, GEAR SHIFTLEVER ASSY, GEAR SHIFT
-
3025652-38B00 ...RUBBER, GEAR SHIFT...RUBBER, GEAR SHIFT
-
3125526-47000 ...COVER, DUST...COVER, DUST
-
3225617-10F00 SPACER, GEAR SHIFTSPACER, GEAR SHIFT
-
3309103-10300 BOLT (10X40)BOLT (10X40)
-
3409140-06025 NUTNUT
-
3509160-10093 WASHER (10.5X24X2.3)WASHER (10.5X24X2.3)
-
3601547-0620A BOLTBOLT
-
3708310-0006A NUTNUT
-
3868392-38B00 LABEL, GEAR SHIFTLABEL, GEAR SHIFT
-
3937730-18H02 SENSOR ASSY, GEAR POSITIONSENSOR ASSY, GEAR POSITION
-
4009280-26005 O RING (D:2.4,ID:26.2)O RING (D:2.4,ID:26.2)
-
4107120-0516A BOLTBOLT
-
4209407-14403 CLAMP (L:125)CLAMP (L:125)
