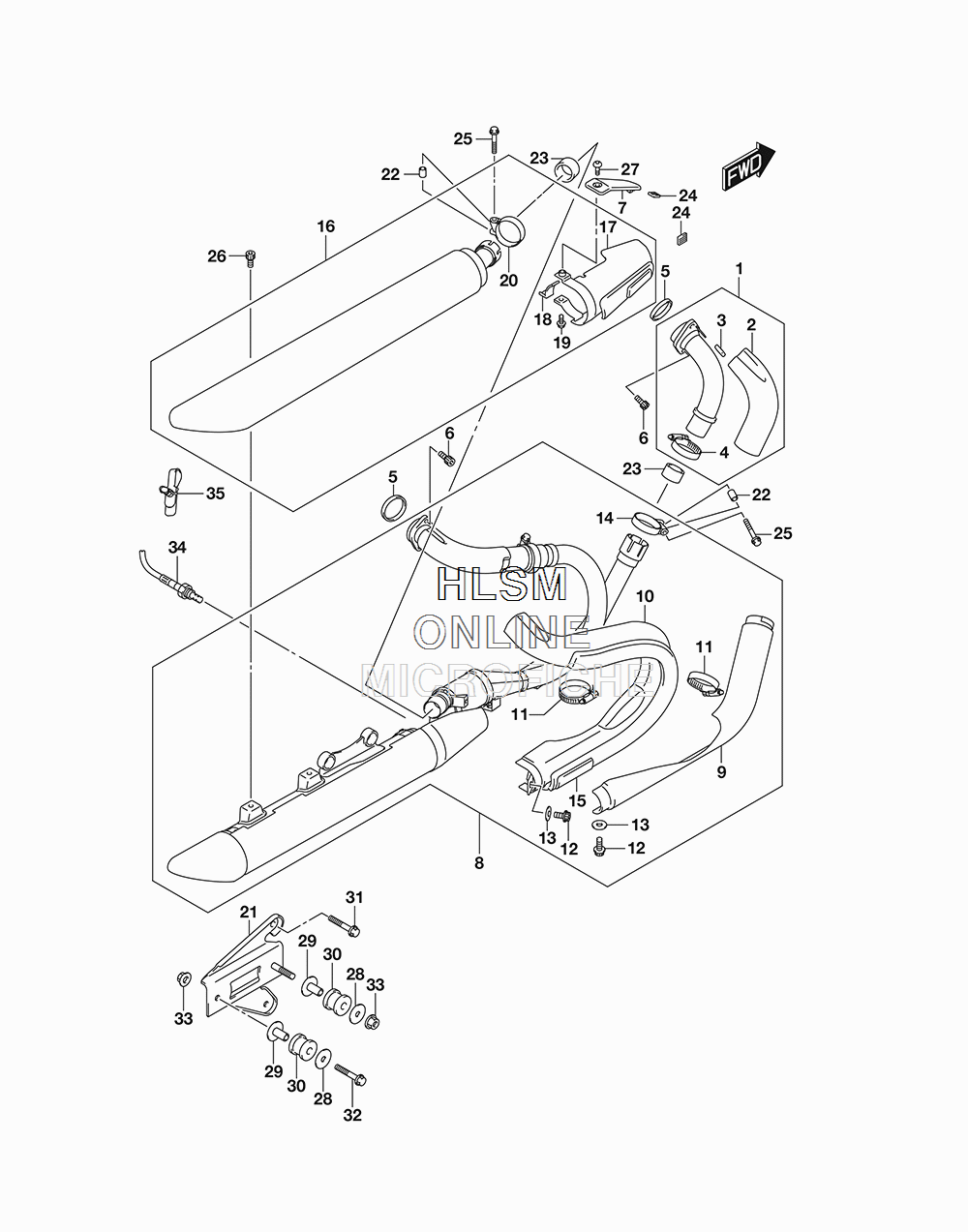

MUFFLER для Suzuki VZ1500 M90 - 2018 года выпуска
-
№АртикулНазвание
-
114150-40H00 PIPE, EXHAUST FRONTPIPE, EXHAUST FRONT
-
214159-40H00 ...COVER,EXH PIPE FRONT...COVER,EXH PIPE FRONT
-
314795-10FA0 ...GROMMET...GROMMET
-
409402-45503 ...CLAMP...CLAMP
-
514181-31D00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
609106-08165 BOLT (8X25)BOLT (8X25)
-
714260-40H00 COVER, MUF REAR UPPERCOVER, MUF REAR UPPER
-
814305-40H20-H01 MUFFLER, FRMUFFLER, FR
-
914170-40H00 ...COVER, EXHAUST FRONT...COVER, EXHAUST FRONT
-
1014180-40H00 ...COVER, EXHAUST REAR...COVER, EXHAUST REAR
-
1109402-45503 ...CLAMP...CLAMP
-
1214451-40H00 ...BOLT...BOLT
-
1314176-40H00 ...SPACER...SPACER
-
1414459-40H00 ...CLAMP, CONNECTOR...CLAMP, CONNECTOR
-
1514780-48G01 ...PROTECTOR, FRONT...PROTECTOR, FRONT
-
1614340-40H20-H01 BODY, MUFFLER REARBODY, MUFFLER REAR
-
1714398-40H00 ...COVER, MUFFLER...COVER, MUFFLER
-
1814399-40H00 ...CLAMP...CLAMP
-
1914451-40H00 ...BOLT...BOLT
-
2014459-40H00 ...CLAMP, CONNECTOR...CLAMP, CONNECTOR
-
2114410-40H00 BRACKETBRACKET
-
2214458-45G10 SPACERSPACER
-
2314771-40H00 CONNECTORCONNECTOR
-
2414795-10FA0 GROMMETGROMMET
-
2509103-08365 BOLT (8X35)BOLT (8X35)
-
2609106-08107 BOLT (8X20)BOLT (8X20)
-
2709139-06172 SCREW (6X10)SCREW (6X10)
-
2809160-08146 WASHER (8.5X33X1.5)WASHER (8.5X33X1.5)
-
2909180-08156 SPACER (8.6X12X25.5)SPACER (8.6X12X25.5)
-
3009320-12049 CUSHION (CUT AS REQUIRED)CUSHION (CUT AS REQUIRED)
-
3101550-0816A BOLTBOLT
-
3201550-0845A BOLTBOLT
-
3308361-2508A NUTNUT
-
3418213-48G00 SENSOR, OXYGENSENSOR, OXYGEN
-
3509407-05403 CLAMP (L:88)CLAMP (L:88)
