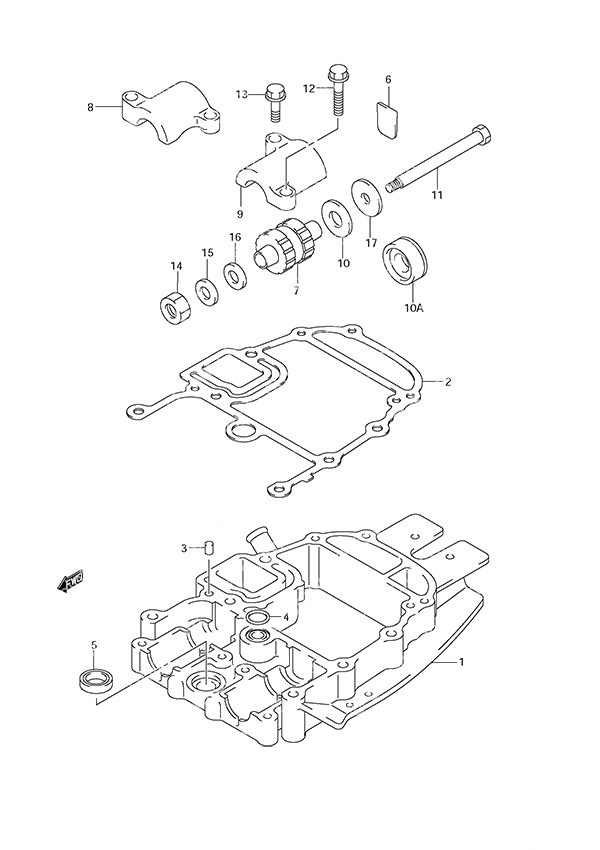

Fig. 45 - Engine Holder для Suzuki DF 50 - 2000 года выпуска
-
№АртикулНазвание
-
151110-87J10-0EP Engine Holder (NLA)
Requires Ref# 18Engine Holder (NLA)
Requires Ref# 18 -
251211-87J00-000 Engine Holder GasketEngine Holder Gasket
-
304221-08149-000 PinPin
-
409280-16005-000 O-RingO-Ring
-
509282-17009-000 Oil Seal (17x28x6)Oil Seal (17x28x6)
-
654125-87J00-000 Upper Thrust Reverse Mount (NLA)Upper Thrust Reverse Mount (NLA)
-
754130-87J21-000 Upper MountUpper Mount
-
854148-99E01-0EP Stbd Upper Mount CoverStbd Upper Mount Cover
-
954149-99E01-0EP Port Upper Mount CoverPort Upper Mount Cover
-
1054165-94400-000 Lower DamperLower Damper
-
10A54120-87J00-000 Upper Thrust Stopper
S/N 032787 to 03XXXXUpper Thrust Stopper
S/N 032787 to 03XXXX -
11-109100-10190-XC0 Bolt (10x145)
S/N 030001 to 032786Bolt (10x145)
S/N 030001 to 032786 -
11-209100-10306-000 Bolt (10x145)
S/N 032787 to 03XXXXBolt (10x145)
S/N 032787 to 03XXXX -
1209116-08128-000 Bolt (8x40)Bolt (8x40)
-
1309116-08122-000 Bolt (8x30)Bolt (8x30)
-
1409159-10050-000 NutNut
-
1509160-10081-000 Washer (10x20x3.0)Washer (10x20x3.0)
-
1609160-10082-000 Washer (10.5x19x2.0)Washer (10.5x19x2.0)
-
1709160-10134-000 Washer (NLA)
S/N 030001 to 032786Washer (NLA)
S/N 030001 to 032786 -
1809352-50006-600 Hose (5x9x600)
Not ShownHose (5x9x600)
Not Shown
