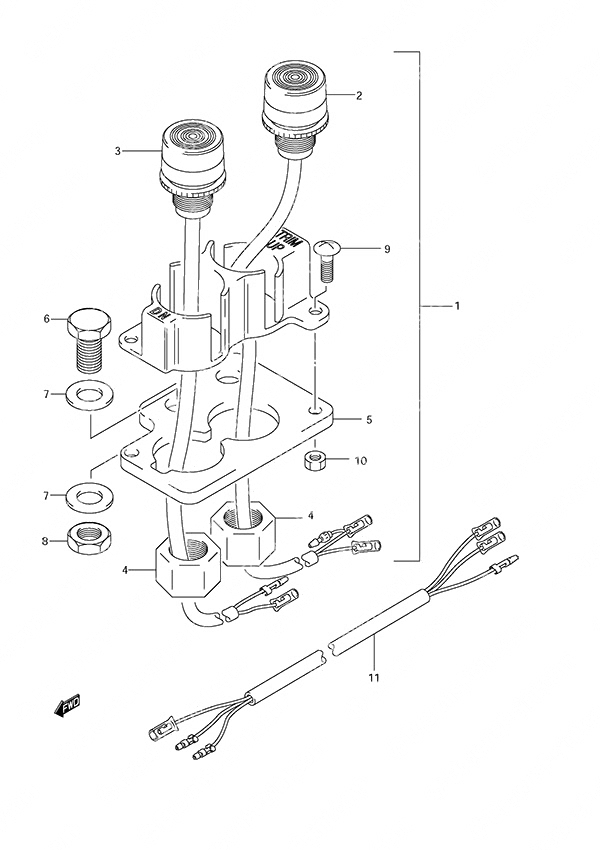

Fig. 62 - Opt: Trim Switch для Suzuki DF 50 - 2000 года выпуска
-
№АртикулНазвание
-
1-137850-95312-000 Tilt/Trim Switch Assembly (NLA)
L:220Tilt/Trim Switch Assembly (NLA)
L:220 -
1-237850-87D03-000 Tilt/Trim Switch Assembly (NLA)
L:5000Tilt/Trim Switch Assembly (NLA)
L:5000 -
237860-95324-000 • Up Trim Switch• Up Trim Switch
-
337870-95324-000 • Down Trim Switch• Down Trim Switch
-
409159-14014-000 • Nut (10mm)• Nut (10mm)
-
537852-95211-000 • Trim Switch Plate (NLA)• Trim Switch Plate (NLA)
-
609100-08232-000 • Bolt (8x30)• Bolt (8x30)
-
709160-08082-000 • Washer (8.5x16x1.2)• Washer (8.5x16x1.2)
-
809140-08019-000 • Nut (8mm)• Nut (8mm)
-
902142-04127-000 • Cross Screw (4x12)• Cross Screw (4x12)
-
1008310-00047-000 • Nut• Nut
-
1137862-95201-000 Trim Switch Lead Extension (NLA)Trim Switch Lead Extension (NLA)
