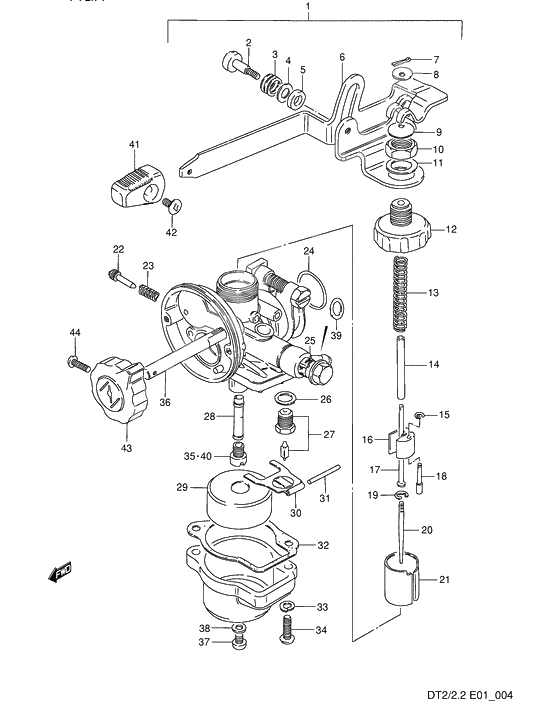

Carburetor assy для Suzuki DT2.2Y(E1) Y - 2000 года выпуска
-
№АртикулНазвание
-
113200-984A0-000 Карбюратор
Model:86Карбюратор
Model:86 -
113200-984F1-000 КарбюраторКарбюратор
-
113200-984D0-000 Карбюратор
Model:88,89Карбюратор
Model:88,89 -
113200-984F1-000 КарбюраторКарбюратор
-
113200-98420-000 Карбюратор
Model:87Карбюратор
Model:87 -
113200-984F1-000 КарбюраторКарбюратор
-
213433-98410-000 БолтБолт
-
313426-98410-000 Пружина
Lock washerПружина
Lock washer -
413615-98412-000 ШайбаШайба
-
513432-33110-000 Кольцо
Ring, frictionКольцо
Ring, friction -
613564-98411-000 Throttle lever
Lever assy, throttleThrottle lever
Lever assy, throttle -
704111-12108-000 СтопорСтопор
-
704111-1210A-000 СтопорСтопор
-
813557-98410-000 PlatePlate
-
913557-98430-000 PlatePlate
-
1013567-98412-000 ГайкаГайка
-
1113589-98411-000 ШайбаШайба
-
1213265-98411-000 Главный карбюраторГлавный карбюратор
-
1313573-98411-000 Пружина клапанаПружина клапана
-
1413552-98411-000 PipePipe
-
1513533-98410-000 E ringE ring
-
1613545-98410-000 ПружинаПружина
-
1713552-98410-000 Штанга дросселяШтанга дросселя
-
1813563-98410-000 ШтифтШтифт
-
1913394-40D00-000 E ring
ClipE ring
Clip -
2013383-98410-000 Жиклер игольчатыйЖиклер игольчатый
-
2113551-98411-000 Клапан дросселя (CA:1.5)
Valve, throttle (ca:1.5);Клапан дросселя (CA:1.5)
Valve, throttle (ca:1.5); -
2213267-01010-000 Винт стопорный
Screw, stopВинт стопорный
Screw, stop -
2313268-01010-000 Прушина стопорная
SpringПрушина стопорная
Spring -
2413295-98410-000 Кольцо уплотнительное
O ringКольцо уплотнительное
O ring -
2409280-15002-000 Кольцо уплотнительноеКольцо уплотнительное
-
2513376-98400-000 Фильтр карбюратораФильтр карбюратора
-
2613392-01010-000 Прокладка
Gasket, valve seatПрокладка
Gasket, valve seat -
2713370-23010-000 Клапан
Valve assy, needleКлапан
Valve assy, needle -
2809494-00179-000 РаспылительРаспылитель
-
2913270-94350-000 ПоплавокПоплавок
-
3013253-98410-000 Рычаг плавающий
Arm, floatРычаг плавающий
Arm, float -
3113254-98410-000 Поплавок
Pin, float;Поплавок
Pin, float; -
3213251-98420-000 Прокладка камерыПрокладка камеры
-
3213251-98421-000 Прокладка камерыПрокладка камеры
-
3308321-01043-000 Пластина замкаПластина замка
-
3308321-0104A-000 Пластина замкаПластина замка
-
3402112-04163-000 Болт
ScrewБолт
Screw -
3402112-0416A-000 БолтБолт
-
3509491-90006-000 Жиклер главный (#90)
Jet, main (#90)Jet, main (#90); E13,model:87Жиклер главный (#90)
Jet, main (#90)Jet, main (#90); E13,model:87 -
3509491-95004-000 Жиклер главный (95)
Jet, main (#95)Jet, main (#95); Model:86~89Жиклер главный (95)
Jet, main (#95)Jet, main (#95); Model:86~89 -
3613586-98410-000 Shaft, chokeShaft, choke
-
3709125-05122-000 БолтБолт
-
3813523-46110-000 Прокладка
Gasket, drain plugGasket, drain plug;Прокладка
Gasket, drain plugGasket, drain plug; -
3913292-98410-000 ШайбаШайба
-
4009491-90006-000 Жиклер главный (#90)
Jet, main (#90)Jet, main (#90); OptЖиклер главный (#90)
Jet, main (#90)Jet, main (#90); Opt -
4009491-85005-000 Жиклер главный (#85)
Jet, main (#85)Jet, main (#85); OptЖиклер главный (#85)
Jet, main (#85)Jet, main (#85); Opt -
4009491-20013-000 Jet, main (#100)
Jet, main (#100); OptJet, main (#100)
Jet, main (#100); Opt -
4188851-64001-000 Рукоятка дросселяРукоятка дросселя
-
4202122-03067-000 БолтБолт
-
4313631-98410-000 Knob, chokeKnob, choke
-
4402112-03107-000 БолтБолт
