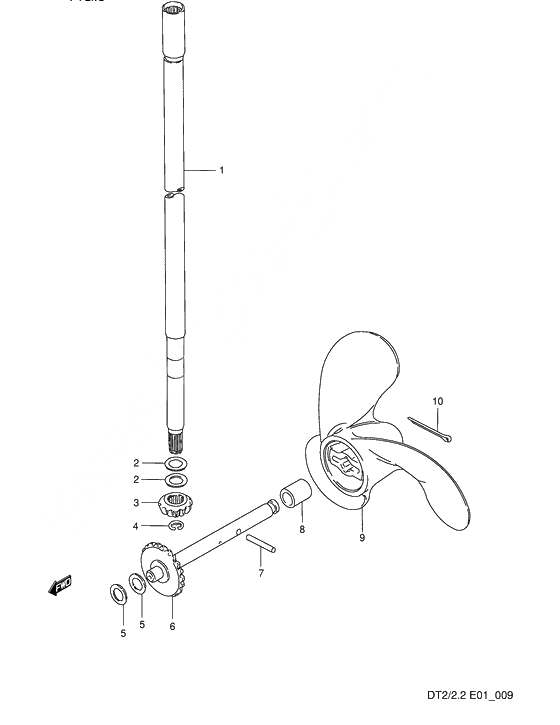

Transmission для Suzuki DT2.2Y(E1) Y - 2000 года выпуска
-
№АртикулНазвание
-
157110-98400-000 Вал ведущий
Shaft, drive (s); L:578Вал ведущий
Shaft, drive (s); L:578 -
157110-98410-000 Вал ведущий
Shaft, drive (l); L:705Вал ведущий
Shaft, drive (l); L:705 -
209181-10130-000 Шайба шестерни (T:0.5)
Shim, pinion (t:0.5)Shim, pinion (t:0.5);Шайба шестерни (T:0.5)
Shim, pinion (t:0.5)Shim, pinion (t:0.5); -
209181-10009-000 Шайба шестерни (T:0.4)
Shim, pinion (t:0.4)Shim, pinion (t:0.4);Шайба шестерни (T:0.4)
Shim, pinion (t:0.4)Shim, pinion (t:0.4); -
209181-10008-000 Шайба шестерни (T:0.3)
Shim, pinion (t:0.3)Shim, pinion (t:0.3);Шайба шестерни (T:0.3)
Shim, pinion (t:0.3)Shim, pinion (t:0.3); -
357311-98402-000 PinionPinion
-
408332-11063-000 E ringE ring
-
408332-1106A-000 E ringE ring
-
408332-1106B-000 E ringE ring
-
509181-10009-000 Шайба шестерни (T:0.4)
Shim, pinion (t:0.4)Shim, gear (t:0.4);Шайба шестерни (T:0.4)
Shim, pinion (t:0.4)Shim, gear (t:0.4); -
509181-10008-000 Шайба шестерни (T:0.3)
Shim, pinion (t:0.3)Shim, gear (t:0.3);Шайба шестерни (T:0.3)
Shim, pinion (t:0.3)Shim, gear (t:0.3); -
509181-10130-000 Шайба шестерни (T:0.5)
Shim, pinion (t:0.5)Shim, gear (t:0.5);Шайба шестерни (T:0.5)
Shim, pinion (t:0.5)Shim, gear (t:0.5); -
657610-98403-000 Гребной вал
Shaft, propeller (nt:23);Гребной вал
Shaft, propeller (nt:23); -
709202-04002-000 Pin
Shear pin;Pin
Shear pin; -
809180-10138-000 Spacer (10.2x14x17)
Spacer (10.2x14x17);Spacer (10.2x14x17)
Spacer (10.2x14x17); -
958111-98402-019 Гребной винт (3X7-1/2X5-1/4)
Propeller(3x188x135) (black); A510Гребной винт (3X7-1/2X5-1/4)
Propeller(3x188x135) (black); A510 -
958111-98452-019 Гребной винт (3X7-1/2X4-7/8)
Propeller(3x188x122) (black); A500Гребной винт (3X7-1/2X4-7/8)
Propeller(3x188x122) (black); A500 -
958111-98465-019 Гребной винт (3X7-1/2X4-1/2)
Propeller (3x188x115)Propeller(3x188x115) (black); A400Гребной винт (3X7-1/2X4-1/2)
Propeller (3x188x115)Propeller(3x188x115) (black); A400 -
1009204-02001-000 Pin
Pin, cotterPin
Pin, cotter
