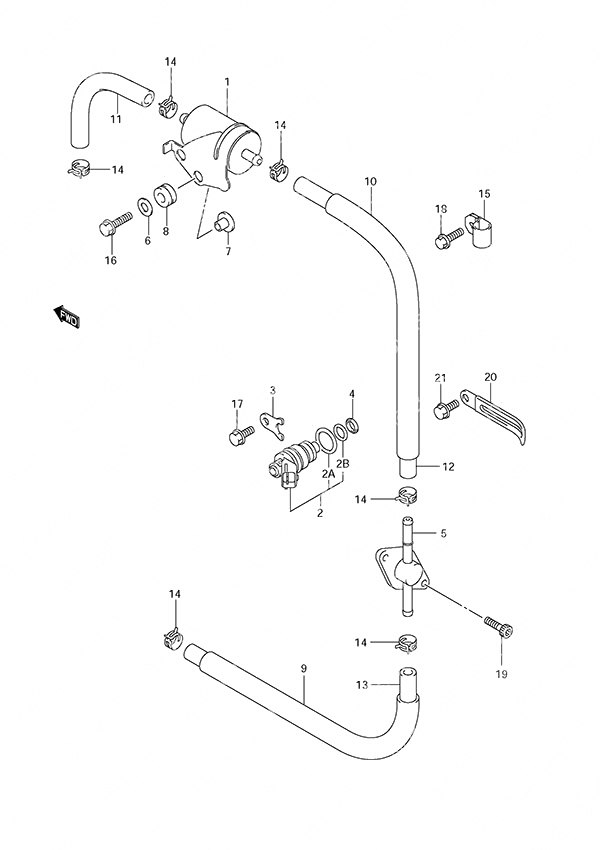

Fig. 13 - Fuel Injector для Suzuki DF 50 - 2002 года выпуска
-
№АртикулНазвание
-
115410-87J00-000 H/P Fuel FilterH/P Fuel Filter
-
215710-87J00-000 Fuel Injector AssemblyFuel Injector Assembly
-
2A15761-94900-000 • Upper O-Ring• Upper O-Ring
-
2B15771-94900-000 • Lower O-Ring• Lower O-Ring
-
315741-87J00-000 Fuel Injector StopperFuel Injector Stopper
-
415751-94900-000 Fuel Injector CushionFuel Injector Cushion
-
515830-87J10-000 Fuel Main Joint (NLA)Fuel Main Joint (NLA)
-
609160-06084-000 Washer (6.5x18x1.6)Washer (6.5x18x1.6)
-
709169-06062-000 Washer (6.3x17x1.6)Washer (6.3x17x1.6)
-
809320-08501-000 CushionCushion
-
918498-99E21-000 Hose Protector (L:450)
L:450->190Hose Protector (L:450)
L:450->190 -
1018498-99E21-000 Hose Protector (L:450)
L:450->140Hose Protector (L:450)
L:450->140 -
1115681-87J00-000 Fuel Hose
Tank to Fuel FilterFuel Hose
Tank to Fuel Filter -
1209356-75137-600 Fuel Hose (L:600)
3 way to Separator
L:600->220Fuel Hose (L:600)
3 way to Separator
L:600->220 -
1309356-75137-600 Fuel Hose (L:600)
Joint to Separator
L:600->270Fuel Hose (L:600)
Joint to Separator
L:600->270 -
1409401-11425-000 ClipClip
-
1509403-18410-000 Clamp (NLA)Clamp (NLA)
-
1601500-06257-000 BoltBolt
-
1701550-06127-000 Bolt (6x12)Bolt (6x12)
-
1801550-08167-000 Bolt (8x16)Bolt (8x16)
-
1907120-06167-000 BoltBolt
