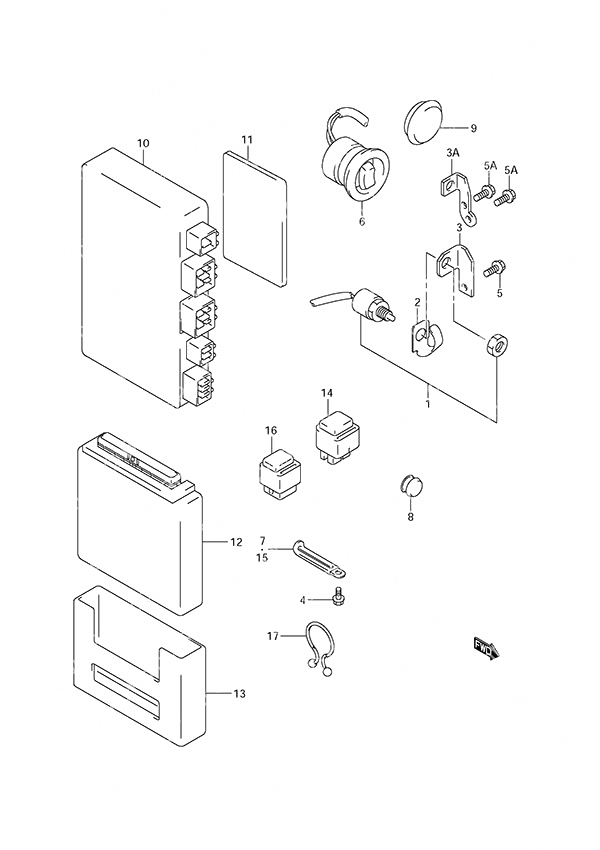

Fig. 33 - Engine Control Unit для Suzuki DF 50 - 2002 года выпуска
-
№АртикулНазвание
-
137721-99E02-000 Neutral Switch AssemblyNeutral Switch Assembly
-
237725-95600-000 Switch ActuatorSwitch Actuator
-
337726-87J01-000 Neutral Switch Bracket
w/Power Tilt
S/N 251001 to 252024Neutral Switch Bracket
w/Power Tilt
S/N 251001 to 252024 -
3A37726-87J01-000 Neutral Switch Bracket
w/Power Tilt
S/N 252025 to 25XXXXNeutral Switch Bracket
w/Power Tilt
S/N 252025 to 25XXXX -
402162-06127-000 BoltBolt
-
501550-06167-000 Bolt (6x16)
w/Power Tilt
S/N 251001 to 252024Bolt (6x16)
w/Power Tilt
S/N 251001 to 252024 -
5A01550-06167-000 Bolt (6x16)
w/Power Tilt
S/N 252025 to 25XXXXBolt (6x16)
w/Power Tilt
S/N 252025 to 25XXXX -
637850-99E05-000 PTT Switch AssemblyPTT Switch Assembly
-
729404-93J11-000 Clamp (L:65)Clamp (L:65)
-
809250-12004-000 Plug
Warning Lamp HolePlug
Warning Lamp Hole -
909250-40002-000 Cap
PTT Switch HoleCap
PTT Switch Hole -
1233920-87JE1-000 Engine Control UnitEngine Control Unit
-
1333925-87J00-000 ECU CushionECU Cushion
-
1438910-92E00-000 RelayRelay
-
1509404-08205-000 Clamp (L:62)Clamp (L:62)
-
1638915-90J00-000 Relay HolderRelay Holder
