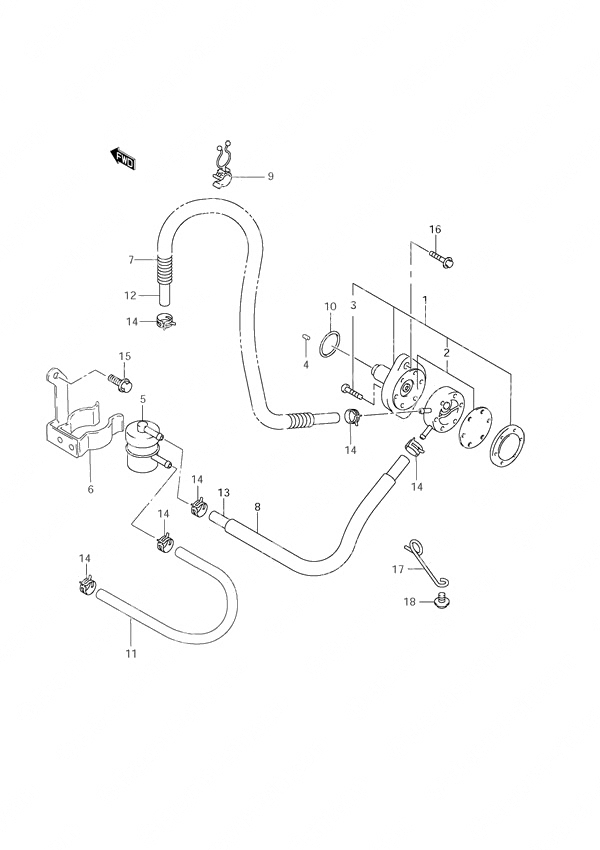

Fig. 19 - Fuel Pump для Suzuki DF 60 - 2002 года выпуска
-
№АртикулНазвание
-
115100-99E11-000 Fuel Pump AssemblyFuel Pump Assembly
-
215170-99E1V-000 • Fuel Pump Diaphragm Set• Fuel Pump Diaphragm Set
-
315251-93E01-000 • Screw• Screw
-
415131-99E00-000 Fuel Pump RodFuel Pump Rod
-
515410-87J10-000 Fuel FilterFuel Filter
-
615420-99E01-000 Fuel Filter BracketFuel Filter Bracket
-
716919-99E10-000 Fuel Hose Protector (L:440)Fuel Hose Protector (L:440)
-
818498-99E11-000 Hose Protector (L:610)Hose Protector (L:610)
-
934980-60B00-000 Fuel Hose Clamp (NLA)Fuel Hose Clamp (NLA)
-
1009280-26005-000 O-RingO-Ring
-
1115191-99E00-000 Fuel Hose
Connector to FilterFuel Hose
Connector to Filter -
1209355-70125-00B Fuel Hose (L:2000)
L:2000->630
Pump to SeparatorFuel Hose (L:2000)
L:2000->630
Pump to Separator -
1309355-70125-00B Fuel Hose (L:2000)
L:2000->700
Filter to PumpFuel Hose (L:2000)
L:2000->700
Filter to Pump -
1409401-11423-000 ClipClip
-
1501550-06127-000 Bolt (6x12)Bolt (6x12)
-
1601550-06257-000 BoltBolt
-
1765793-99E00-000 Fuel Hose Holder (NLA)Fuel Hose Holder (NLA)
-
1809248-10008-000 Drain PlugDrain Plug
