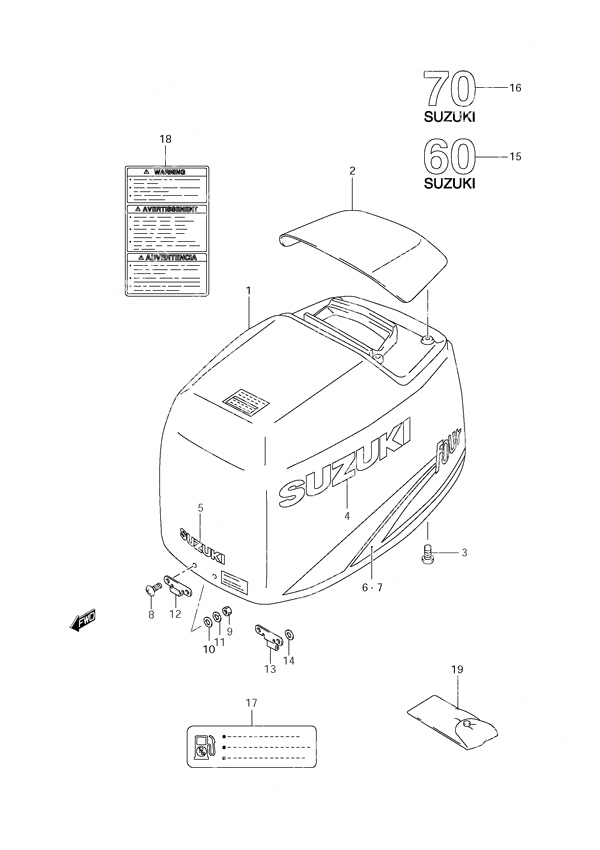

Fig. 48 - Engine Cover для Suzuki DF 60 - 2002 года выпуска`
-
№АртикулНазвание
-
161400-99842-0EP Engine Cover Set (NLA)Engine Cover Set (NLA)
-
261431-99E11-0EP • Tilt Up Handle• Tilt Up Handle
-
309116-06204-000 • Bolt (6x20)• Bolt (6x20)
-
468111-34301-Y2D • Side Emblem Mark• Side Emblem Mark
-
568271-87J00-000 • Front Emblem Mark• Front Emblem Mark
-
661443-99E00-000 • Stbd Engine Cover Stripe• Stbd Engine Cover Stripe
-
761453-99E00-000 • Port Engine Cover Stripe• Port Engine Cover Stripe
-
809125-06025-000 • Screw (6x20)• Screw (6x20)
-
909140-06020-000 • Nut (6mm)• Nut (6mm)
-
1261631-99E00-000 • Fastner Hook• Fastner Hook
-
1361621-99E00-000 • Engine Cover Bracket• Engine Cover Bracket
-
1409160-06094-000 • Washer (6.5x15x1.0)• Washer (6.5x15x1.0)
-
1561435-99E00-000 Rear Emblem Mark DF60 (NLA)Rear Emblem Mark DF60 (NLA)
-
1769716-99E14-000 Fuel Limitation LabelFuel Limitation Label
-
1861458-99E31-000 Engine Cover LabelEngine Cover Label
-
1909800-81812-000 Tool SetTool Set
