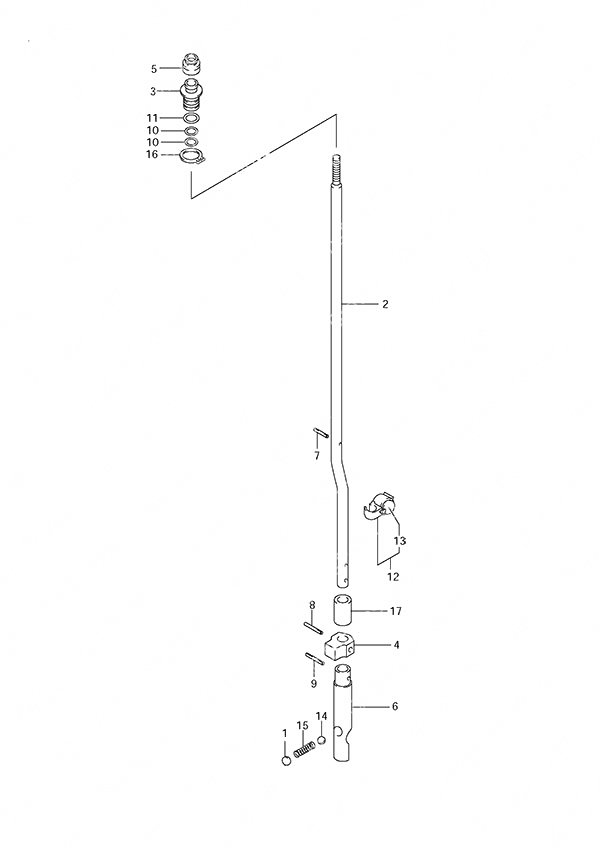

Fig. 21 - Shift Rod для Suzuki DF 50 - 2004 года выпуска
-
№АртикулНазвание
-
121121-93300-000 Clutch Notch PlateClutch Notch Plate
-
2-125111-94412-000 Shift Rod (S) (NLA)
w/Transom (S)Shift Rod (S) (NLA)
w/Transom (S) -
2-225111-94442-000 Shift Rod (L)
w/Transom (L)Shift Rod (L)
w/Transom (L) -
3-125211-94401-000 Shift Rod Guide
S/N 421001 to 423474Shift Rod Guide
S/N 421001 to 423474 -
3-225211-87J00-000 Shift Rod Guide
S/N 423475 to 42XXXXShift Rod Guide
S/N 423475 to 42XXXX -
425212-94401-000 Shift Rod Lower GuideShift Rod Lower Guide
-
525222-96301-000 Replaced by 25223-94400Replaced by 25223-94400
-
625311-94402-000 Shift CamShift Cam
-
709205-02004-000 Spring Pin (2.5x12)Spring Pin (2.5x12)
-
809205-02013-000 Spring Pin (2.5x16)Spring Pin (2.5x16)
-
909205-03021-000 Spring Pin (3.5x12)Spring Pin (3.5x12)
-
10-109280-08005-000 O-Ring
S/N 421001 to 423474O-Ring
S/N 421001 to 423474 -
10-209280-08005-000 O-Ring
S/N 423475 to 42XXXXO-Ring
S/N 423475 to 42XXXX -
1109280-11005-000 O-RingO-Ring
-
1225230-94300-000 Gear Case Magnet Set
S/N 421001 to 424593Gear Case Magnet Set
S/N 421001 to 424593 -
1325232-94300-000 • Gear Case Magnet• Gear Case Magnet
-
1409260-10005-000 BallBall
-
1509440-07071-000 SpringSpring
-
1608331-3115A-000 CirclipCirclip
-
1725232-96302-000 Gear Case Magnet
S/N 424594 to 42XXXXGear Case Magnet
S/N 424594 to 42XXXX
