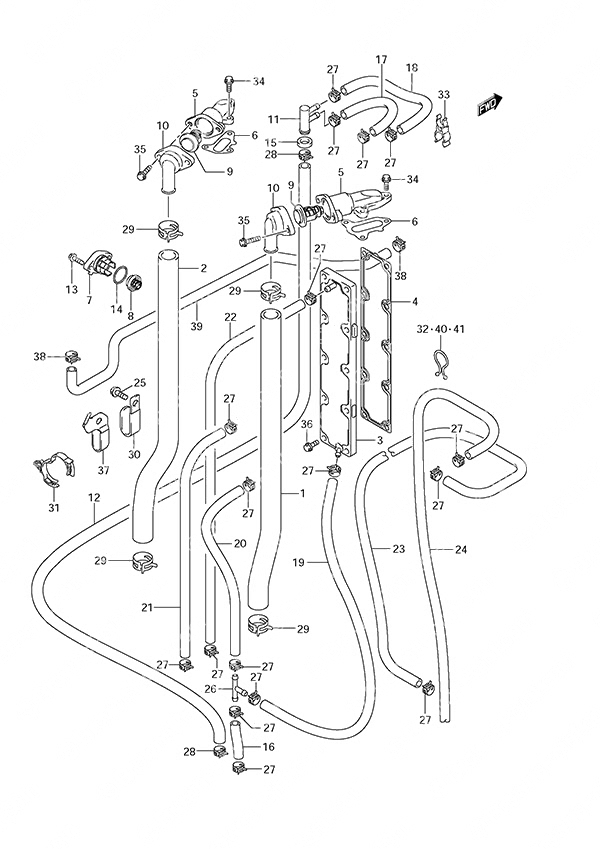

Fig. 17 - Thermostat для Suzuki DF 225 - 2008 года выпуска
-
№АртикулНазвание
-
111196-93J00-000 Water Return Hose
StarboardWater Return Hose
Starboard -
211197-93J00-000 Water Return Hose
PortWater Return Hose
Port -
311270-93J00-000 Cylinder Block Water Jacket PlateCylinder Block Water Jacket Plate
-
411272-93J00-000 Cylinder Block Plate GasketCylinder Block Plate Gasket
-
517581-93J00-000 Water Outlet PipeWater Outlet Pipe
-
617582-93J00-000 Water Outlet Pipe GasketWater Outlet Pipe Gasket
-
717611-90J00-000 Water Pressure Valve CoverWater Pressure Valve Cover
-
817660-99E01-000 Water Pressure ValveWater Pressure Valve
-
9-117670-90J01-000 Thermostat (60c)
StandardThermostat (60c)
Standard -
9-217670-90J11-000 Thermostat (71c)
OptionalThermostat (71c)
Optional -
1017681-93J00-000 Thermostat CoverThermostat Cover
-
1117711-90J00-000 Water Hose 3 WayWater Hose 3 Way
-
1217712-93J00-000 Water Hose
3 Way to E/H CoverWater Hose
3 Way to E/H Cover -
1309116-06121-000 Bolt (6x25)Bolt (6x25)
-
1409280-26006-000 O-RingO-Ring
-
1509320-12014-000 Cushion (NLA)Cushion (NLA)
-
1609352-50006-600 Hose (5x9x600)
E/H Cover to 3 Way
L:600->60Hose (5x9x600)
E/H Cover to 3 Way
L:600->60 -
1709352-50006-600 Hose (5x9x600)
Cooler to 3 Way
L:600->120Hose (5x9x600)
Cooler to 3 Way
L:600->120 -
1809352-50006-600 Hose (5x9x600)
Case to 3 Way
L:600->190Hose (5x9x600)
Case to 3 Way
L:600->190 -
1909352-50006-600 Hose (5x9x600)
3 Way to Block
L:600->300Hose (5x9x600)
3 Way to Block
L:600->300 -
2009352-50006-600 Hose (5x9x600)
3 Way to Intake Manifold
L:600->330Hose (5x9x600)
3 Way to Intake Manifold
L:600->330 -
2109352-50006-600 Hose (5x9x600)
Intake Manifold to E/H CoverHose (5x9x600)
Intake Manifold to E/H Cover -
2209352-50006-600 Hose (5x9x600)
Block to E/H CoverHose (5x9x600)
Block to E/H Cover -
2309352-50006-00B Hose (5x9x2000)
Oil Pan to Case
L:2000->850Hose (5x9x2000)
Oil Pan to Case
L:2000->850 -
24-109352-50006-00B Hose (5x9x2000)
E/H Cover to Cooler
L:2000->950Hose (5x9x2000)
E/H Cover to Cooler
L:2000->950 -
24-209352-50006-00B Hose (5x9x2000)
E/H Cover to Cooler
2008 & Newer
L:2000->1010Hose (5x9x2000)
E/H Cover to Cooler
2008 & Newer
L:2000->1010 -
2501550-08127-000 Bolt (8x12)Bolt (8x12)
-
2609367-06002-000 3 Way3 Way
-
2709401-08413-000 ClipClip
-
2809401-14409-000 ClipClip
-
2909401-25406-000 ClipClip
-
3009403-17303-000 Clamp (NLA)
DF225T: S/N 780021 & Older
DF225Z: S/N 780005 & OlderClamp (NLA)
DF225T: S/N 780021 & Older
DF225Z: S/N 780005 & Older -
3109403-25304-000 Clamp (NLA)Clamp (NLA)
-
3209408-00008-000 ClampClamp
-
3309408-00189-000 Clamp (NLA)Clamp (NLA)
-
3401550-06207-000 Bolt (6x20)Bolt (6x20)
-
35-101550-06257-000 BoltBolt
-
35-201550-06207-000 Bolt (6x20)
2006 & NewerBolt (6x20)
2006 & Newer -
3601550-06257-000 BoltBolt
-
3717713-98J00-000 Water Hose Holder (NLA)
DF225T: S/N 780022 & Newer
DF225Z: S/N 780006 & NewerWater Hose Holder (NLA)
DF225T: S/N 780022 & Newer
DF225Z: S/N 780006 & Newer -
3809401-15414-000 Clip
2008 & NewerClip
2008 & Newer -
3917915-98J01-000 Water Flush Hose
2008 & NewerWater Flush Hose
2008 & Newer -
4009408-00024-000 Clamp
2008 & NewerClamp
2008 & Newer -
4109408-00021-000 Clamp (NLA)
2008 & NewerClamp (NLA)
2008 & Newer
