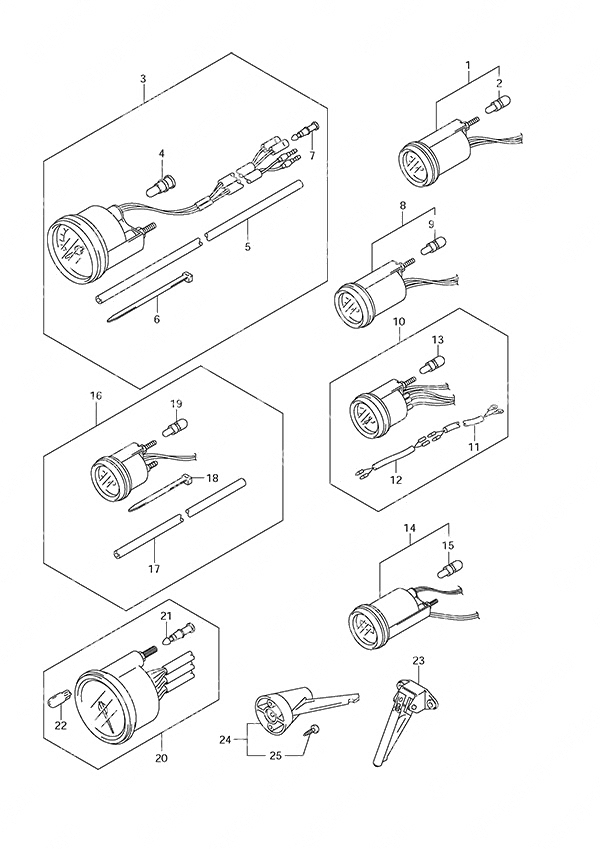

Fig. 58 - Opt: Meter для Suzuki DF 225 - 2008 года выпуска
-
№АртикулНазвание
-
1-134800-93J02-000 Black Trim GaugeBlack Trim Gauge
-
1-234800-93J13-000 White Trim GaugeWhite Trim Gauge
-
209471-12103-000 • Bulb (12v, 3.4w)• Bulb (12v, 3.4w)
-
3-134100-93J00-000 Black Speedometer 0-80 MPHBlack Speedometer 0-80 MPH
-
3-234100-93J13-000 White Speedometer 0-80 MPHWhite Speedometer 0-80 MPH
-
3-334100-93J22-000 Black Speedometer 0-50 MPHBlack Speedometer 0-50 MPH
-
3-434100-93J33-000 White Speedometer 0-50 MPHWhite Speedometer 0-50 MPH
-
409471-12028-000 • Bulb (12v, 3.4w)• Bulb (12v, 3.4w)
-
534191-92E00-000 • Water Pressure Tubing• Water Pressure Tubing
-
609407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
736615-96300-000 • Resin Terminal• Resin Terminal
-
8-134600-93J02-000 Black VoltmeterBlack Voltmeter
-
8-234600-93J13-000 White VoltmeterWhite Voltmeter
-
909471-12103-000 • Bulb (12v, 3.4w)• Bulb (12v, 3.4w)
-
10-134300-93J02-000 Black Fuel GaugeBlack Fuel Gauge
-
10-234300-93J13-000 White Fuel GaugeWhite Fuel Gauge
-
1134310-92E00-000 • Fuel Gauge Lead (NLA)• Fuel Gauge Lead (NLA)
-
1234360-92E00-000 • Adapter Harness (NLA)• Adapter Harness (NLA)
-
1309471-12103-000 • Bulb (12v, 3.4w)• Bulb (12v, 3.4w)
-
14-134500-93J02-000 Black Hour MeterBlack Hour Meter
-
14-234500-93J13-000 White Hour MeterWhite Hour Meter
-
1509471-12103-000 • Bulb (12v, 3.4w)• Bulb (12v, 3.4w)
-
16-134650-93J20-000 Black Water Pressure Gauge
15 psiBlack Water Pressure Gauge
15 psi -
16-234650-93J33-000 White Water Pressure Gauge
15 psiWhite Water Pressure Gauge
15 psi -
1734191-92E00-000 • Water Pressure Tubing• Water Pressure Tubing
-
1809407-14407-000 • Clamp (L:145)• Clamp (L:145)
-
1909471-12103-000 • Bulb (12v, 3.4w)• Bulb (12v, 3.4w)
-
20-134200-93J02-000 Black Tachometer w/MonitorBlack Tachometer w/Monitor
-
20-234200-93J14-000 White Tachometer w/MonitorWhite Tachometer w/Monitor
-
2136615-96300-000 • Resin Terminal• Resin Terminal
-
2209471-12077-000 • Bulb (12v, 1.7w)• Bulb (12v, 1.7w)
-
2334190-87D00-000 Speedometer SensorSpeedometer Sensor
-
2434190-95500-000 Speedometer Sensor (NLA)Speedometer Sensor (NLA)
-
2603112-06303-000 • Screw (NLA)• Screw (NLA)
