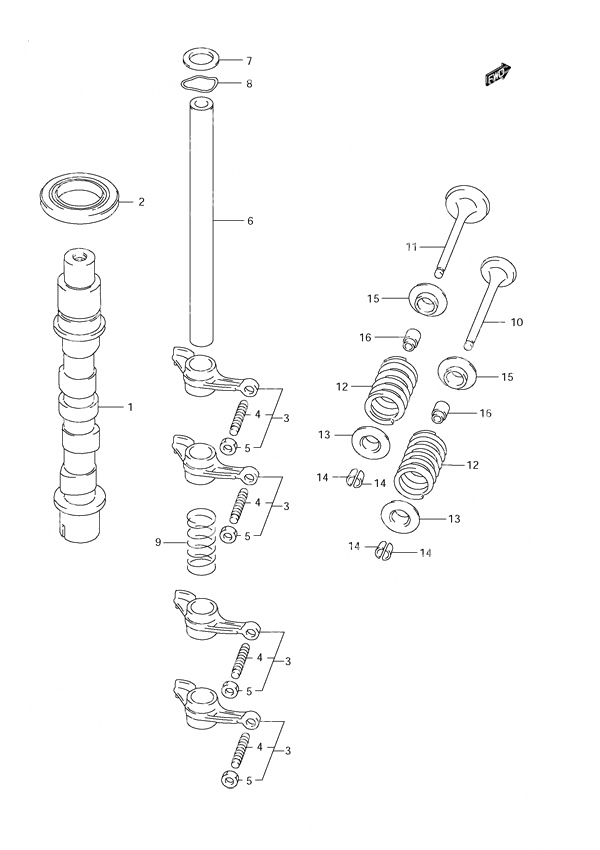

Fig. 5 - Camshaft для Suzuki DF 9.9 - 2012 года выпуска
-
№АртикулНазвание
-
112711-94JM0-000 Camshaft wo/DecompCamshaft wo/Decomp
-
209283-25096-000 Oil SealOil Seal
-
312840-93E01-000 Rocker Arm AssemblyRocker Arm Assembly
-
412842-49201-000 • Tappet Adjust Screw• Tappet Adjust Screw
-
512843-27A00-000 • Tappet Adjust Nut• Tappet Adjust Nut
-
612861-93E00-000 Rocker Arm ShaftRocker Arm Shaft
-
709160-13010-000 WasherWasher
-
809164-14012-000 Wave WasherWave Washer
-
912891-94J00-000 Rocker Arm Shaft SpringRocker Arm Shaft Spring
-
1012911-93E00-000 Intake ValveIntake Valve
-
1112915-93E00-000 Exhaust ValveExhaust Valve
-
1212921-93E00-000 Valve SpringValve Spring
-
1312931-78G00-000 Valve Spring RetainerValve Spring Retainer
-
1412932-24400-000 Valve CotterValve Cotter
-
1512933-71C00-000 Valve Spring SeatValve Spring Seat
-
1609289-05006-000 Valve Stem SealValve Stem Seal
