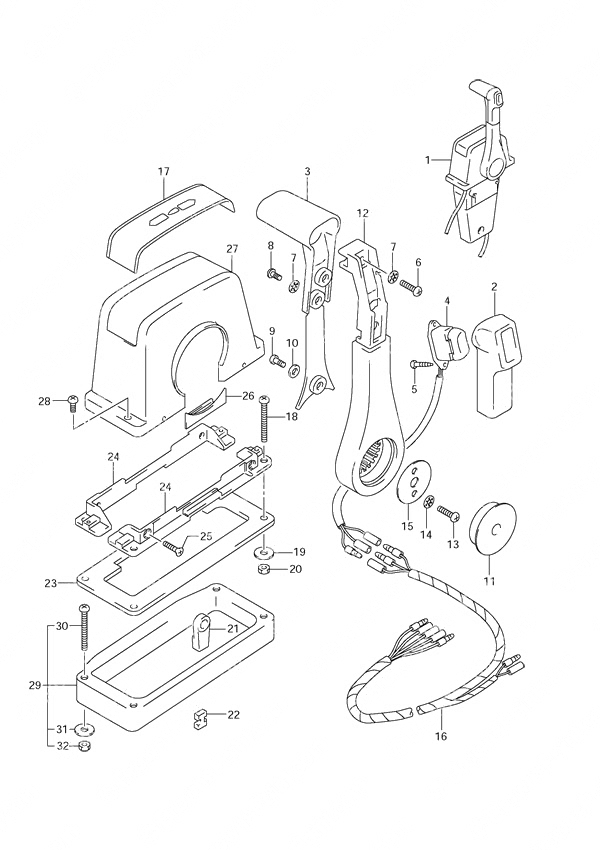

Fig. 86 - Opt: Top Mount Single (1) для Suzuki DF 9.9 - 2012 года выпуска
-
№АртикулНазвание
-
167200-88L01-000 Single Binnacle Control BoxSingle Binnacle Control Box
-
267261-93J00-000 • Grip No 1• Grip No 1
-
367263-93J00-000 • Grip No 2• Grip No 2
-
437850-93J10-000 • PTT Switch Assembly• PTT Switch Assembly
-
567295-92E10-000 • Screw (3x12)• Screw (3x12)
-
667296-88D10-000 • Screw (5x16)• Screw (5x16)
-
767288-92E20-000 • Washer• Washer
-
867295-92E00-000 • Screw• Screw
-
967296-92E70-000 • Screw• Screw
-
1067288-92E40-000 • Washer• Washer
-
1167257-92E00-000 • Lever Cap• Lever Cap
-
1267251-93J00-000 • Handle Lever• Handle Lever
-
1367296-92E60-000 • Screw• Screw
-
1467288-92E30-000 • Washer• Washer
-
1567253-92E00-000 • Washer• Washer
-
1636890-93J00-000 • Wire Harness• Wire Harness
-
1767281-93J00-000 • Decal• Decal
-
1867296-92E30-000 • Screw• Screw
-
1909160-05024-000 • Washer (5.5x16x1.5)• Washer (5.5x16x1.5)
-
2067287-92E00-000 • Nut• Nut
-
2167275-95600-000 • Cable End• Cable End
-
2267273-95600-000 • Spacer• Spacer
-
2367273-92E00-000 • Grommet• Grommet
-
2467274-92E00-000 • Flange• Flange
-
2567296-95610-000 • Screw• Screw
-
2667271-92E00-000 • Cover• Cover
-
2767211-93J00-000 • Top Binnacle Cover• Top Binnacle Cover
-
2867296-92E70-000 • Screw• Screw
-
2967500-93J00-000 Single Binnacle Box SpacerSingle Binnacle Box Spacer
-
3009125-05135-000 • Screw (5x65)• Screw (5x65)
-
3109160-05029-000 • Washer (5.5x10x0.8)• Washer (5.5x10x0.8)
-
3209140-05005-000 • Nut• Nut
