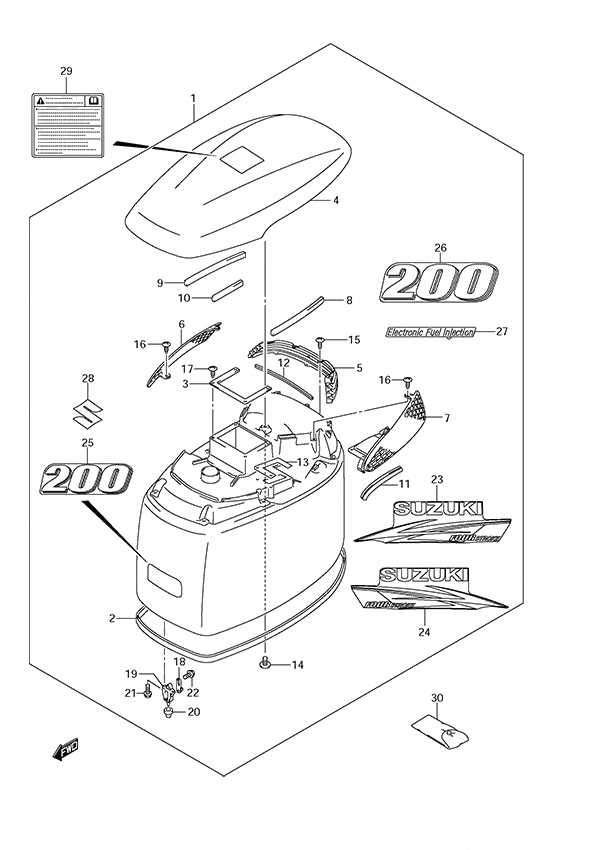

Fig. 185 - Engine Cover для Suzuki DF 200 - 2013 года выпуска
-
№АртикулНазвание
-
161420-93835-0EP Engine Cover SetEngine Cover Set
-
261112-93J20-000 • Engine Cover Rubber• Engine Cover Rubber
-
361416-93J00-000 • Air Intake Guard (NLA)• Air Intake Guard (NLA)
-
461431-93J03-0EP • Tilt Up Handle• Tilt Up Handle
-
561432-93J01-000 • Tilt Up Handle Louver• Tilt Up Handle Louver
-
661433-93J01-000 • Air Intake Inner Starboard Cover• Air Intake Inner Starboard Cover
-
761434-93J01-000 • Air Intake Inner Port Cover• Air Intake Inner Port Cover
-
861438-93J00-000 • Tilt Up Handle Tape (NLA)• Tilt Up Handle Tape (NLA)
-
961438-93J00-000 • Tilt Up Handle Tape (NLA)
L:250->190• Tilt Up Handle Tape (NLA)
L:250->190 -
1061438-93J00-000 • Tilt Up Handle Tape (NLA)
L:250->106• Tilt Up Handle Tape (NLA)
L:250->106 -
1161439-93J20-000 • Tilt Up Handle Port Seal• Tilt Up Handle Port Seal
-
1261439-93J40-000 • Tilt Up Handle Rear Seal• Tilt Up Handle Rear Seal
-
1361476-93J00-000 • Air Vent Seal• Air Vent Seal
-
1403542-05169-000 • Screw• Screw
-
1503542-05169-000 • Screw• Screw
-
1603542-05169-000 • Screw• Screw
-
1703542-05169-000 • Screw• Screw
-
1861610-93J00-000 • Fastener• Fastener
-
1961621-93J01-000 • Fastener Bracket• Fastener Bracket
-
2009329-10024-000 • Cushion• Cushion
-
2101547-06167-000 • Bolt (6x16)• Bolt (6x16)
-
2201550-06127-000 • Bolt (6x12)• Bolt (6x12)
-
2361443-93J32-000 • Engine Cover Starboard Stripe• Engine Cover Starboard Stripe
-
2461453-93J32-000 • Engine Cover Port Stripe• Engine Cover Port Stripe
-
2561422-93J52-000 • Front Emblem Mark (200)• Front Emblem Mark (200)
-
2661435-93J32-000 • Rear Emblem Mark (200)• Rear Emblem Mark (200)
-
2761446-87L12-000 • EFI Decal• EFI Decal
-
2868111-96J00-000 • Emblem Mark 'S'• Emblem Mark 'S'
-
2961458-99E60-000 Engine Cover LabelEngine Cover Label
-
3009800-81835-000 Tool SetTool Set
