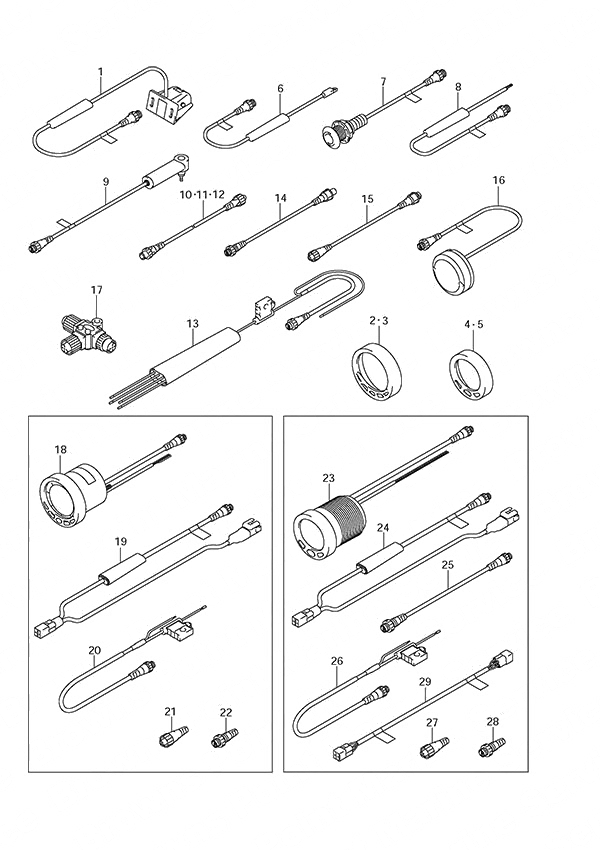

Fig. 212 - Opt: SMIS Gauges для Suzuki DF 200 - 2013 года выпуска
-
№АртикулНазвание
-
1990C0-88117-000 Speed Wheel SensorSpeed Wheel Sensor
-
2990C0-88021-000 Chrome 4 in. BezelChrome 4 in. Bezel
-
3990C0-88023-000 White 4 in. Bezel (NLA)White 4 in. Bezel (NLA)
-
4990C0-88025-000 Chrome 2 in. BezelChrome 2 in. Bezel
-
5990C0-88027-000 White 2 in. BezelWhite 2 in. Bezel
-
6990C0-88118-000 Temperature SensorTemperature Sensor
-
7990C0-88119-000 Temperature Sensor (Thru Hull Type) (NLA)Temperature Sensor (Thru Hull Type) (NLA)
-
8990C0-88217-000 Fluid Level SensorFluid Level Sensor
-
9990C0-88339-000 Pressure SensorPressure Sensor
-
10990C0-88104-000 2' Extension cable2' Extension cable
-
11990C0-88105-000 6' Extension cable6' Extension cable
-
12990C0-88107-000 15' Extension cable15' Extension cable
-
13990C0-88130-000 SMIS Multi Power NodeSMIS Multi Power Node
-
14990C0-88029-000 Blue Device to NMEA T Adaptor Harness (NLA)Blue Device to NMEA T Adaptor Harness (NLA)
-
15990C0-88137-000 NMEA to Blue T Adaptor HarnessNMEA to Blue T Adaptor Harness
-
16990C0-88122-000 GPS Receiver Module w/Heading SensorGPS Receiver Module w/Heading Sensor
-
17990C0-88110-000 T-ConnectorT-Connector
-
18990C0-88165-000 4 in. Multi-Function Gauge4 in. Multi-Function Gauge
-
19990C0-88149-000 SMIS Engine Interface Cable (NLA)SMIS Engine Interface Cable (NLA)
-
20990C0-88112-000 SMIS Power CableSMIS Power Cable
-
21990C0-88113-000 Terminating Resistor 120 ohm FemaleTerminating Resistor 120 ohm Female
-
22990C0-88114-000 Terminating Resistor 120 ohm MaleTerminating Resistor 120 ohm Male
-
23990C0-88150-000 2 in. Multi-Function Gauge2 in. Multi-Function Gauge
-
24990C0-88149-000 SMIS Engine Interface Cable (NLA)SMIS Engine Interface Cable (NLA)
-
25990C0-88108-000 25' Extension cable25' Extension cable
-
26990C0-88112-000 SMIS Power CableSMIS Power Cable
-
27990C0-88113-000 Terminating Resistor 120 ohm FemaleTerminating Resistor 120 ohm Female
-
28990C0-88114-000 Terminating Resistor 120 ohm MaleTerminating Resistor 120 ohm Male
-
29990C0-88136-000 Cable Adapter SMIS to SDSCable Adapter SMIS to SDS
-
990C0-88164-KIT 4 in. Multi-Function Gauge Kit
Includes Ref# 18 to 224 in. Multi-Function Gauge Kit
Includes Ref# 18 to 22 -
990C0-88152-KIT 2 in. Multi-Function Gauge Kit
Includes Ref# 23 to 292 in. Multi-Function Gauge Kit
Includes Ref# 23 to 29
