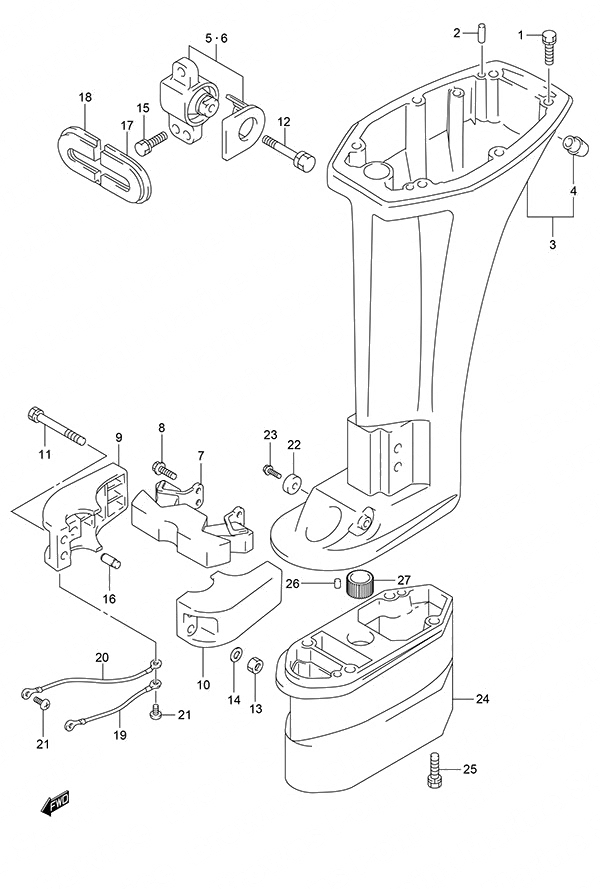

Fig. 27 - Drive Shaft Housing для Suzuki DF 9.9 - 2013 года выпуска
-
№АртикулНазвание
-
109116-08122-000 Bolt (8x30)Bolt (8x30)
-
209202-06023-000 Knock Pin (6x10)Knock Pin (6x10)
-
352110-94JC0-0EP Drive Shaft Housing (L)
w/Transom (L)Drive Shaft Housing (L)
w/Transom (L) -
443112-94L01-000 • Exhaust Pipe• Exhaust Pipe
-
554180-93E01-000 Upper Stbd MountUpper Stbd Mount
-
654190-93E01-000 Upper Port MountUpper Port Mount
-
754160-94JA0-000 Lower Mount (NLA)Lower Mount (NLA)
-
809116-08137-000 Bolt (8x22)Bolt (8x22)
-
954211-94J20-0EP Lower Mount Starboard CoverLower Mount Starboard Cover
-
1054221-94J20-0EP Lower Mount Port CoverLower Mount Port Cover
-
1109116-08138-000 Bolt (8x40)Bolt (8x40)
-
1209116-08138-000 Bolt (8x40)Bolt (8x40)
-
1329141-93J10-000 NutNut
-
1409160-08082-000 Washer (8.5x16x1.2)Washer (8.5x16x1.2)
-
1509116-08122-000 Bolt (8x30)Bolt (8x30)
-
1654213-93901-000 Knock PinKnock Pin
-
1754144-94J00-000 Upper Mount Port SealUpper Mount Port Seal
-
1854145-94J00-000 Upper Mount Port SealUpper Mount Port Seal
-
1936894-95201-000 Wire Lead (L:165)
Mount to HousingWire Lead (L:165)
Mount to Housing -
2036895-87D01-000 Wire Lead (L:210)
Swivel to MountWire Lead (L:210)
Swivel to Mount -
2109125-05050-000 Screw (5x8)Screw (5x8)
-
2255321-87J01-000 Aluminum AnodeAluminum Anode
-
2309103-06281-000 Bolt (6x14)Bolt (6x14)
-
2452131-94J21-0EP Extension Case
w/Transom (X)Extension Case
w/Transom (X) -
2509117-08047-000 Bolt (8x30)
w/Transom (X)Bolt (8x30)
w/Transom (X) -
2609202-06023-000 Knock Pin (6x10)
w/Transom (X)Knock Pin (6x10)
w/Transom (X) -
2709320-13022-000 Bushing
w/Transom (X)Bushing
w/Transom (X)
