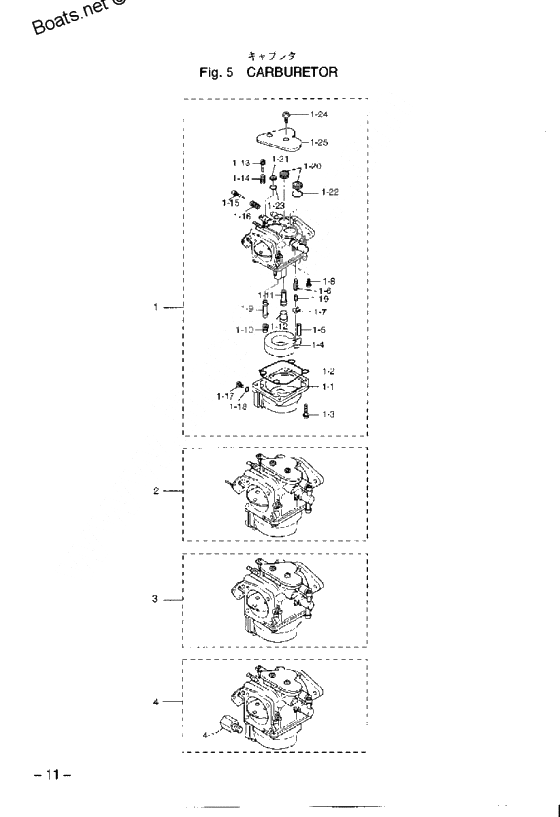

Carburetor для Tohatsu M140A2 - 2002 года выпуска
-
№АртикулНазвание
-
13C7-03200-1 Carburetor upper ass'y
140A2 #11885-Carburetor upper ass'y
140A2 #11885- -
1-1353-03221-0 Float ChamberFloat Chamber
-
1-103C7-03251-0 Жиклер главныйЖиклер главный
-
1-113C7-03255-0 Slow jet(#75)Slow jet(#75)
-
1-12346-03256-0 Rubber capRubber cap
-
1-13346-03265-0 Stop ScrewStop Screw
-
1-14346-03267-0 Spring aSpring a
-
1-15346-03266-0 Adjust ScrewAdjust Screw
-
1-16353-03268-0 Spring BSpring B
-
1-17345-03292-0 Drain ScrewDrain Screw
-
1-18336-03293-0 O-RingO-Ring
-
1-19334-03242-0 Игольчатый клапанИгольчатый клапан
-
1-2346-03222-0 O-ring, floatO-ring, float
-
1-203C7-03182-0 Gasket a, carburetor coverGasket a, carburetor cover
-
1-213C7-03183-0 Gasket b, carburetor coverGasket b, carburetor cover
-
1-223C7-03184-0 Plate a, cover gasketPlate a, cover gasket
-
1-233C7-03185-0 Plate b, cover gasketPlate b, cover gasket
-
1-243C7-03186-0 Stud BoltStud Bolt
-
1-3922503-6414 Stud BoltStud Bolt
-
1-4346-03231-0 FloatFloat
-
1-5346-03232-0 Arm Pin FloatArm Pin Float
-
1-63B7-03240-0 Float ValveFloat Valve
-
1-7344-03244-0 ClipClip
-
1-83F3-03234-0 Screw arm pinScrew arm pin
-
1-93C7-03252-0 Main NozzleMain Nozzle
-
23C7-03204-0 Carburetor second ass'y
120A2 #21577-140A2 #11885-Carburetor second ass'y
120A2 #21577-140A2 #11885- -
33C7-03205-0 Caeburetor third ass'yCaeburetor third ass'y
-
43C7-03210-1 Carburetor lower ass'yCarburetor lower ass'y
-
4-13C7-03292-0 Drain screw(lower)Drain screw(lower)
