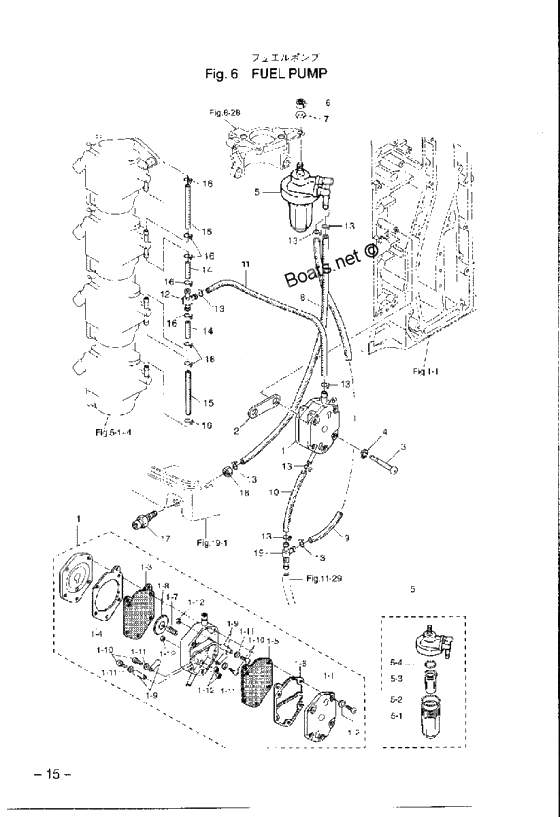

Fuel pump для Tohatsu M140A2 - 2002 года выпуска
-
№АртикулНазвание
-
13C7-04000-1 Топливный насосТопливный насос
-
1-13C7-04004-1 Pump coverPump cover
-
1-11940103-0300 WasherWasher
-
1-12930103-0300 NutNut
-
1-33C7-04005-0 Diaphragm aDiaphragm a
-
1-43C7-04006-0 Gasket a diaphragmGasket a diaphragm
-
1-53C7-04029-0 Diaphragm bDiaphragm b
-
1-63C7-04007-1 Gasket B DiaphragmGasket B Diaphragm
-
1-73C7-04009-0 Spring WasherSpring Washer
-
1-83C7-04022-0 Diaphragm coverDiaphragm cover
-
1-93C7-04044-0 Check ValveCheck Valve
-
2346-04901-0 Gasket fuel pumpGasket fuel pump
-
3921503-0645 Stud BoltStud Bolt
-
4941303-0600 New partNew part
-
53C7-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
5-13B7-02237-0 CupCup
-
5-23B7-02235-0 O-Ring AO-Ring A
-
5-33B7-02234-0 FilterFilter
-
5-43B7-02236-0 O???? bO???? b
-
7940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
123C7-02092-0 Соединение трубкиСоединение трубки
-
133C7-02215-0 ClipClip
-
16338-02215-0 ClipClip
-
173C7-70260-0 Соединитель топливныйСоединитель топливный
-
183C7-70253-0 Nut 12p1.25Nut 12p1.25
-
193C7-09075-1 Check Valve CompleteCheck Valve Complete
