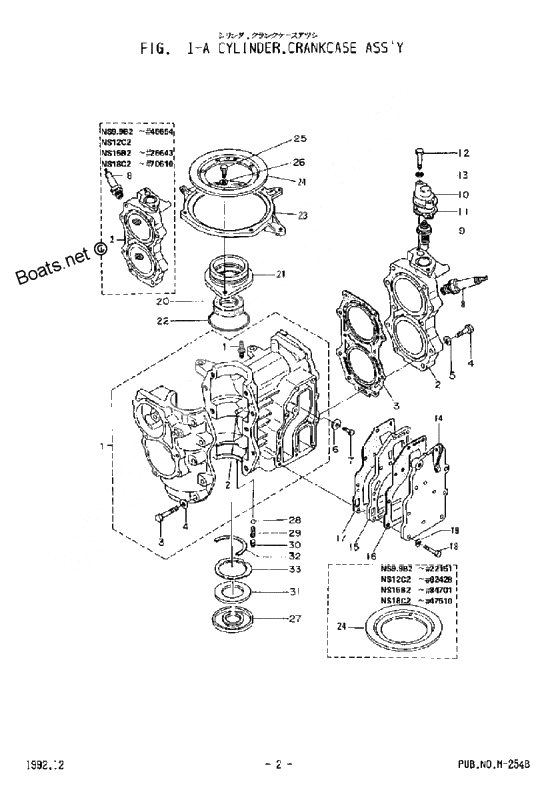

Cylinder, crankcase assy для Tohatsu M15B2 - 2002 года выпуска
-
№АртикулНазвание
-
00397-01001-0 Cylinder head
NS15B2-BLUE-NS9.9B2-BLUECylinder head
NS15B2-BLUE-NS9.9B2-BLUE -
00350-02301-0 Exhaust cover outer
NS18C2-BLUE-NS15B2-BLUE-NS12C2-NS9.9B2-BLUEExhaust cover outer
NS18C2-BLUE-NS15B2-BLUE-NS12C2-NS9.9B2-BLUE -
00332-01121-1 Nylon ball check valve
NS18C2,15B2,12C2,9.9B2Nylon ball check valve
NS18C2,15B2,12C2,9.9B2 -
009701-0-1005 9701-1-1005
NS182,15B2,12C2,9.9B2-NGK B7HS-109701-1-1005
NS182,15B2,12C2,9.9B2-NGK B7HS-10 -
00350-01401-0 Зажигание
NS18C2,15B2,12C2,9.9B2Зажигание
NS18C2,15B2,12C2,9.9B2 -
00362-01100-1 Cylinder & Crank Case Ass'y
NS18C2Cylinder & Crank Case Ass'y
NS18C2 -
00350-02302-0 Exhaust Cover Inner
NS18C2,15B2,12C2,9.9B2Exhaust Cover Inner
NS18C2,15B2,12C2,9.9B2 -
00332-01122-0 Spring check valve
NS18C2,15B2,12C2,9.9B2Spring check valve
NS18C2,15B2,12C2,9.9B2 -
009701-0-1015 Spark plug (resister type)
NS18C2, 15B2 BR7HS-10Spark plug (resister type)
NS18C2, 15B2 BR7HS-10 -
00338-01403-0 O-Ring
NS18C2,15B2,12C2,9.9B2 D2-D55.5O-Ring
NS18C2,15B2,12C2,9.9B2 D2-D55.5 -
00362-01100-2 Cylinder & Crank Case Ass'y
NS18C2-BLUECylinder & Crank Case Ass'y
NS18C2-BLUE -
00350-01005-0 New part
NS18C2New part
NS18C2 -
00350-02305-0 New part
NS18C2,15B2,12C2,9.9B2New part
NS18C2,15B2,12C2,9.9B2 -
00332-01123-0 Screw,check valve
NS18C2,15B2,12C2,9.9B2Screw,check valve
NS18C2,15B2,12C2,9.9B2 -
00345-01030-0 サーモスタット
NS18C2,15B2,12C2,9.9B2サーモスタット
NS18C2,15B2,12C2,9.9B2 -
00350-63723-0 Комплект колец
NS18C2,15B2,12C2,9.9B2Комплект колец
NS18C2,15B2,12C2,9.9B2 -
00351-01005-0 New part
NS15B2,12C2,9.9B2New part
NS15B2,12C2,9.9B2 -
00350-02306-0 Gasket exhaust cover inner
NS18C2,15B2,12C2,9.9B2Gasket exhaust cover inner
NS18C2,15B2,12C2,9.9B2 -
00362-00128-0 Ring oil seal lower
NS18C2,15B2,12C2,9.9B2Ring oil seal lower
NS18C2,15B2,12C2,9.9B2 -
00346-01031-0 Cap, thermosrat
NS18C2-BLUE-NS15B2-BLUE-NS12C2-NS9.9B2-BLUECap, thermosrat
NS18C2-BLUE-NS15B2-BLUE-NS12C2-NS9.9B2-BLUE -
00346-63722-2 Guide Plate
NS18C2,15B2,12C2,9.9B2Guide Plate
NS18C2,15B2,12C2,9.9B2 -
00363-01100-1 Cylinder & Crank Case Ass'y
NS15B2-NS12C2-NS9.9B2Cylinder & Crank Case Ass'y
NS15B2-NS12C2-NS9.9B2 -
00910-12084-0 Bolt
NS18C2,15B2,12C2,9.9B2Bolt
NS18C2,15B2,12C2,9.9B2 -
00910-14062-5 Bolt
NS18C2,15B2,12C2,9.9B2Bolt
NS18C2,15B2,12C2,9.9B2 -
00398-01001-0 Cylinder head
NS18C2-BLUECylinder head
NS18C2-BLUE -
00350-00115-0 Thrust Plate Crankshaft
NS18C2,15B2,12C2,9.9B2Thrust Plate Crankshaft
NS18C2,15B2,12C2,9.9B2 -
00346-01032-0 New part
NS18C2,15B2,12C2,9.9B2New part
NS18C2,15B2,12C2,9.9B2 -
00363-01100-2 Cylinder & Crank Case Ass'y
NS15B2-BLUE-NS12C2-NS9.9B2-BLUECylinder & Crank Case Ass'y
NS15B2-BLUE-NS12C2-NS9.9B2-BLUE -
00910-11062-0 Bolt
NS18C2,15B2,12C2,9.9B2Bolt
NS18C2,15B2,12C2,9.9B2 -
00338-60218-1 Anode
NS18C2,1582,12C2,9.9B2Anode
NS18C2,1582,12C2,9.9B2 -
00940-11060-0 Washer
NS18C2,15B2,12C2,9.9B2Washer
NS18C2,15B2,12C2,9.9B2 -
00351-01001-0 Cylinder head
NS15B2,12C2,NS9.9B2Cylinder head
NS15B2,12C2,NS9.9B2 -
00350-00107-0 Thrust plate lower crankshaft
NS18C2,15B2,12C2,9.9B2Thrust plate lower crankshaft
NS18C2,15B2,12C2,9.9B2 -
00941-32060-0 Spring Washer
NS18C2,15B2,12C2,9.9B2Spring Washer
NS18C2,15B2,12C2,9.9B2 -
00350-01215-5 Oil Seal
NS18C2,15B2,12C2,9.9B2-D25-D62-9.5MMOil Seal
NS18C2,15B2,12C2,9.9B2-D25-D62-9.5MM -
00910103-0616 Bolt
NS18C2,1582,12C2,9.9B2Bolt
NS18C2,1582,12C2,9.9B2 -
00350-00121-0 Oil Seal
NS18C2,15B2,12C2,9.9B2 D25-D45-8MMOil Seal
NS18C2,15B2,12C2,9.9B2 D25-D45-8MM -
01338-01131-1 Золотник
NS18C2,15B2,12C2,9.9B2Золотник
NS18C2,15B2,12C2,9.9B2 -
02345-01111-0 Dowel Pin 6-12
NS182,15B2,12C2,9.9B2-D6-12MMDowel Pin 6-12
NS182,15B2,12C2,9.9B2-D6-12MM -
03910-14084-5 Bolt
NS18C2,15B2,12C2,9.9B2Bolt
NS18C2,15B2,12C2,9.9B2 -
04940-11080-0 Washer
NS18C2,1582,12C29,9B2Washer
NS18C2,1582,12C29,9B2
