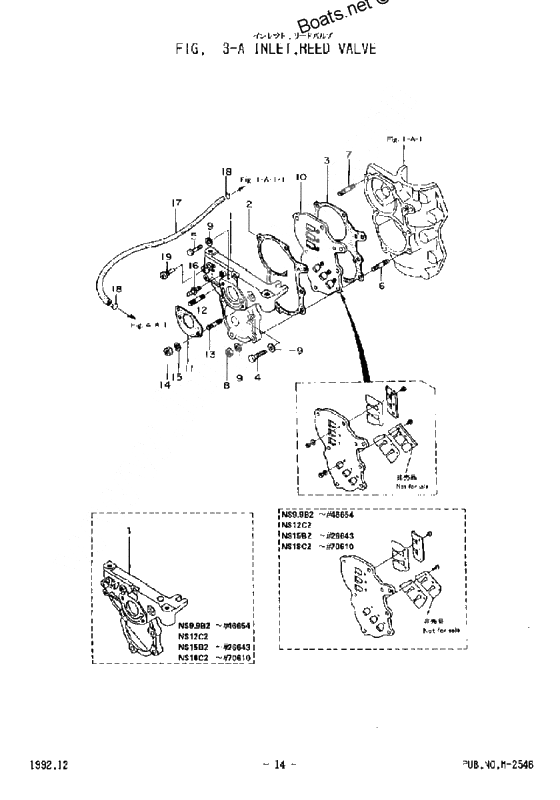

Inlet, reed valve для Tohatsu M15B2 - 2002 года выпуска
-
№АртикулНазвание
-
00350-02011-0 Gasket, carburetor
NS18C2,15B2,12C2,9.9B2Gasket, carburetor
NS18C2,15B2,12C2,9.9B2 -
00350-02014-0 Bolt b
NS18C2,15B2,12C2,9.9B2Bolt b
NS18C2,15B2,12C2,9.9B2 -
00338-01133-0 Clip
NS18C2,15B2,12C2,9.9B2Clip
NS18C2,15B2,12C2,9.9B2 -
00362-02010-1 Inlet Manifold
NS18C2-NS15B2-NS9.982Inlet Manifold
NS18C2-NS15B2-NS9.982 -
00915-31061-8 Stud Bolt
NS18C2,15B2,12C2,9.9B2Stud Bolt
NS18C2,15B2,12C2,9.9B2 -
00915-34062-5 Stud Bolt
NS18C2,15B2,12C2,9.9B2Stud Bolt
NS18C2,15B2,12C2,9.9B2 -
00362-05236-0 Screw, throttle stopper
NS18C2,15B2,12C2,9.9B2Screw, throttle stopper
NS18C2,15B2,12C2,9.9B2 -
00362-02010-3 Inlet Manifold
NS18C2-BLUE-NS15B2-BLUE-NS9.9B2-BLUEInlet Manifold
NS18C2-BLUE-NS15B2-BLUE-NS9.9B2-BLUE -
00930103-0600 Nut
NS18C2,15B2,12C2,9.9B2Nut
NS18C2,15B2,12C2,9.9B2 -
00915-34063-0 Stud Bolt
NS18C2,15B2,12C2,9.9B2Stud Bolt
NS18C2,15B2,12C2,9.9B2 -
00941303-0600 New part
NS18C2,15B2,12C2,9.9B2New part
NS18C2,15B2,12C2,9.9B2 -
00930-11060-0 Nut
NS18C2,15B2,12C2,9.9B2Nut
NS18C2,15B2,12C2,9.9B2 -
00350-02104-0 New part
NS18C2,15B2,12C2,9.9B2New part
NS18C2,15B2,12C2,9.9B2 -
00338-01131-1 Золотник
NS18C2,15B2,12C2,9.9B2Золотник
NS18C2,15B2,12C2,9.9B2 -
00940-11060-0 Washer
NS18C2,15B2,12C2,9.9B2Washer
NS18C2,15B2,12C2,9.9B2 -
00350-02105-1 Gasket b inlet manifold
NS18C2,15B2,12C2,9.9B2Gasket b inlet manifold
NS18C2,15B2,12C2,9.9B2 -
009807-3-0220 Fuel pipe 3mm (1 ea.=1 meter)
NS18C2,15B2,12C2,9.9B2 D3-D7-220MMFuel pipe 3mm (1 ea.=1 meter)
NS18C2,15B2,12C2,9.9B2 D3-D7-220MM -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
-
00362-02100-1 Reed Valve Ass'y
NS18C2,15B2,12C2,9.9B2Reed Valve Ass'y
NS18C2,15B2,12C2,9.9B2 -
00350-02013-0 Bolt a
NS18C2,15B2,12C2,9.9B2Bolt a
NS18C2,15B2,12C2,9.9B2 -
009807-3-0280 Fuel pipe 3mm (1 ea.=1 meter)
NS18C2-NS15B2-NS12C2-NS9.9B2Fuel pipe 3mm (1 ea.=1 meter)
NS18C2-NS15B2-NS12C2-NS9.9B2 -
98AB-301000 Fuel pipe 3mm (1 ea.=1 meter)Fuel pipe 3mm (1 ea.=1 meter)
