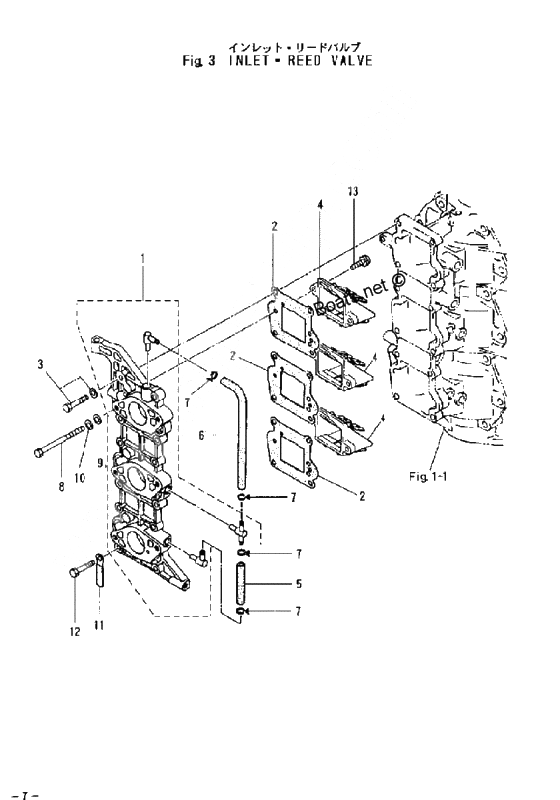

Inlet, reed valve для Tohatsu M50D2 - 2002 года выпуска
-
№АртикулНазвание
-
13E3B02020-0 Inlet manifold ass'yInlet manifold ass'y
-
23C8-02104-0 Gasket inlet manifoldGasket inlet manifold
-
43E3-02100-0 Reed Valve Ass'yReed Valve Ass'y
-
7338-02215-0 ClipClip
-
9940121-0600 WasherWasher
-
10941322-0600 Spring WasherSpring Washer
-
11309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
12910121-0625 BoltBolt
-
13921521-6516 Stud BoltStud Bolt
