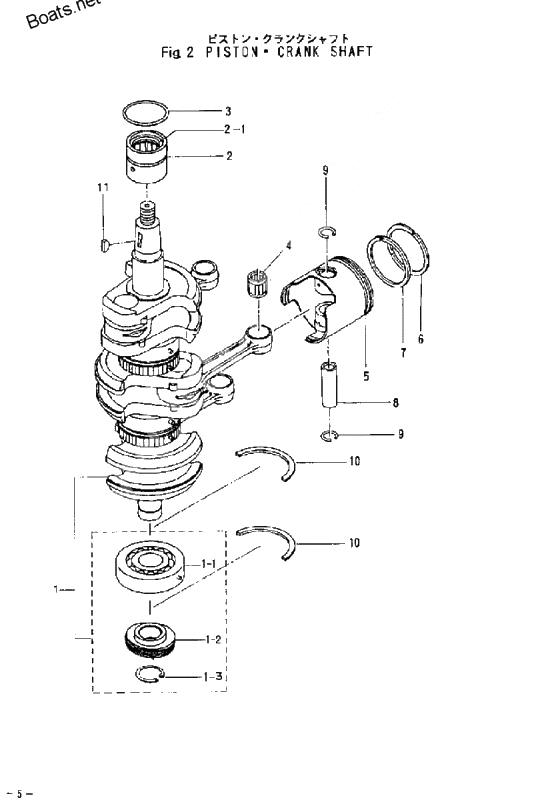

Piston & crank shaft для Tohatsu M50D2 - 2002 года выпуска
-
№АртикулНазвание
-
13C8-00030-0 New partNew part
-
13C8-00121-0 Oil seal 32-42-6Oil seal 32-42-6
-
1-13J2-00114-0 Подшипник 6305Подшипник 6305
-
1-23C8-09060-0 Drive Gear Oil PumpDrive Gear Oil Pump
-
1-3945107-2500 C-RingC-Ring
-
23C8-00113-0 Needle BearingNeedle Bearing
-
33C8-00108-0 O-RingO-Ring
-
4345-00042-0 Needle Bearing 17-21-27Needle Bearing 17-21-27
-
53C8-00001-3 Piston (std)
OPTPiston (std)
OPT -
53C8-00004-3 New partNew part
-
6356-00011-0 1-е поршневое кольцо
OPT1-е поршневое кольцо
OPT -
6356-00014-0 New partNew part
-
7346-00011-0 2-е поршневое кольцо2-е поршневое кольцо
-
7346-00014-0 Кольцо поршневое(+0,5мм)
OPTКольцо поршневое(+0,5мм)
OPT -
83C8-00021-0 Палец поршняПалец поршня
-
9334-00024-1 Clip, Piston PinClip, Piston Pin
-
10346-00115-0 Thrust Plate CrankshaftThrust Plate Crankshaft
-
11334-00131-0 Key MagnetoKey Magneto
