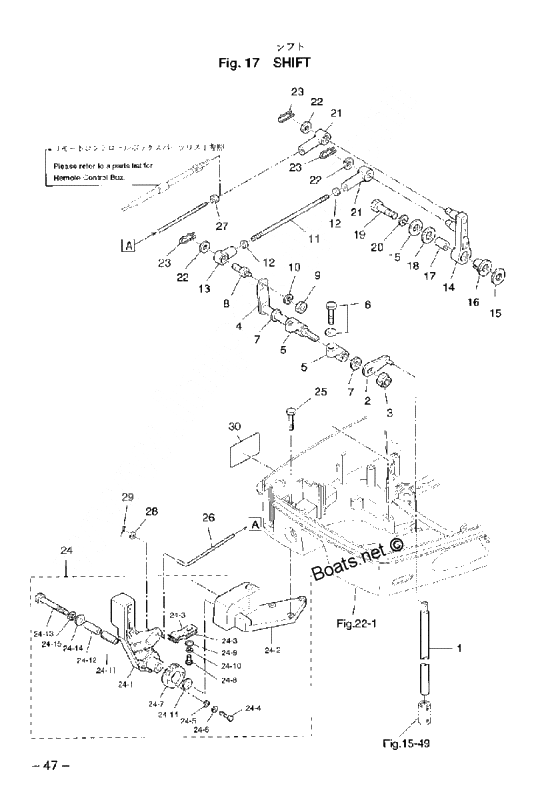

Shift для Tohatsu M60C - 2002 года выпуска
-
№АртикулНазвание
-
1353-66215-1 New partNew part
-
2353-66110-0 Shift Rod LeverShift Rod Lever
-
3930403-1000 Nylon NutNylon Nut
-
43B7-66225-0 Shift lever shaft(for p type)Shift lever shaft(for p type)
-
5353-66145-1 Holder shift lever shaftHolder shift lever shaft
-
6910103-5825 BoltBolt
-
7332-61315-0 WasherWasher
-
8353-83728-0 Cable PinCable Pin
-
353-83728-1 Cable PinCable Pin
-
9930103-0600 NutNut
-
10941303-0600 New partNew part
-
113F3-05222-0 Rod 5-70Rod 5-70
-
123B2-83865-0 Nut(No,10-32VNF)Nut(No,10-32VNF)
-
133A3-83715-0 Cable JointCable Joint
-
143B7-66122-0 Shift ArmShift Arm
-
153B7-63730-0 WasherWasher
-
163B7-63713-0 BushingBushing
-
173B7-63732-0 Collar, 8.4-12-17Collar, 8.4-12-17
-
183B7-63731-0 WasherWasher
-
19910103-0835 BoltBolt
-
20941303-0800 Spring WasherSpring Washer
-
213B7-83715-0 Cable JointCable Joint
-
22353-83719-0 WasherWasher
-
23951603-0800 R-PinR-Pin
-
243B7S80403-0 Shift lever ass'yShift lever ass'y
-
24-11346-62437-0 BushingBushing
-
24-123B7-66124-0 Collar, 8.1-10.5-31.7Collar, 8.1-10.5-31.7
-
24-13910103-0855 BoltBolt
-
24-14940103-0800 Washer -> 940113-0800Washer -> 940113-0800
-
24-23B7S66115-0 Bracket shift leverBracket shift lever
-
24-33B2-66112-0 Stopper, shift leverStopper, shift lever
-
24-4910103-0420 BoltBolt
-
24-5940103-0400 WasherWasher
-
24-6941303-0400 Spring WasherSpring Washer
-
24-73B7-66121-0 Stopper plate, shift leverStopper plate, shift lever
-
24-8910103-0616 BoltBolt
-
24-9940103-0600 WasherWasher
-
263F3-66134-0 Rod shift lever stopperRod shift lever stopper
-
28940103-0500 WasherWasher
-
29951503-0212 Split PinSplit Pin
-
30353-72013-0 Label clutchLabel clutch
