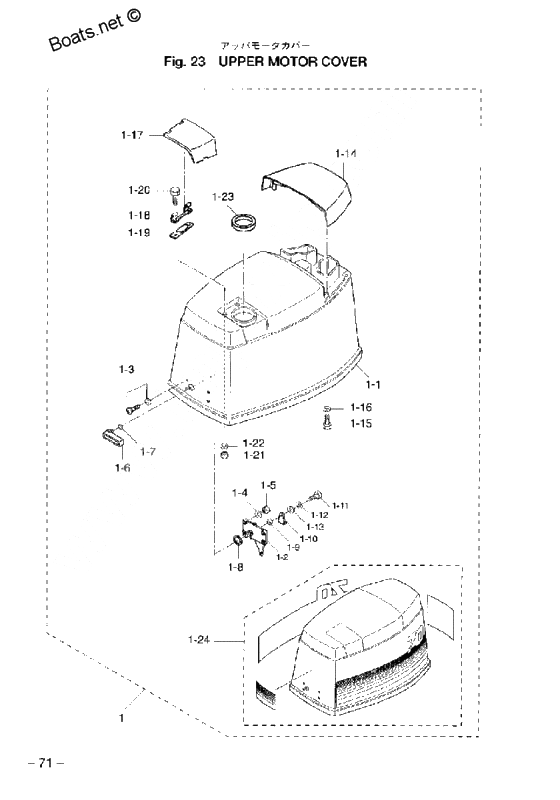

Upper motor cover для Tohatsu M60C - 2002 года выпуска
-
№АртикулНазвание
-
13N5S67510-0 Upper motor cover ass'y
UNIQUEUpper motor cover ass'y
UNIQUE -
1-13F3-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
1-10353-67142-1 Cover HookCover Hook
-
1-11910103-0616 BoltBolt
-
1-12941303-0600 New partNew part
-
1-133C8-66308-0 New partNew part
-
1-143F3S67521-1 Tilt handleTilt handle
-
1-15910103-0630 BoltBolt
-
9101E3-0630 BoltBolt
-
1-173E3S67210-0 Filler lidFiller lid
-
1-183B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
1-193C8-67212-0 Spring filler lidSpring filler lid
-
1-2353-67517-1 Locating bracketLocating bracket
-
1-20910103-0614 BoltBolt
-
1-21930103-0600 NutNut
-
1-233F3-67213-1 Seal Rubber Filler LidSeal Rubber Filler Lid
-
1-243N5S87802-0 Decal set (60)
- UNIQUE-3N7N87802-0Decal set (60)
- UNIQUE-3N7N87802-0 -
1-3921703-5520 Stud BoltStud Bolt
-
1-4941303-0500 Spring WasherSpring Washer
-
1-5930103-0500 NutNut
-
1-6353S67141-0 Hook leverHook lever
-
1-7338-62435-0 O-RingO-Ring
-
1-8353-67147-1 Seal ringSeal ring
-
1-9353-67105-0 BushingBushing
