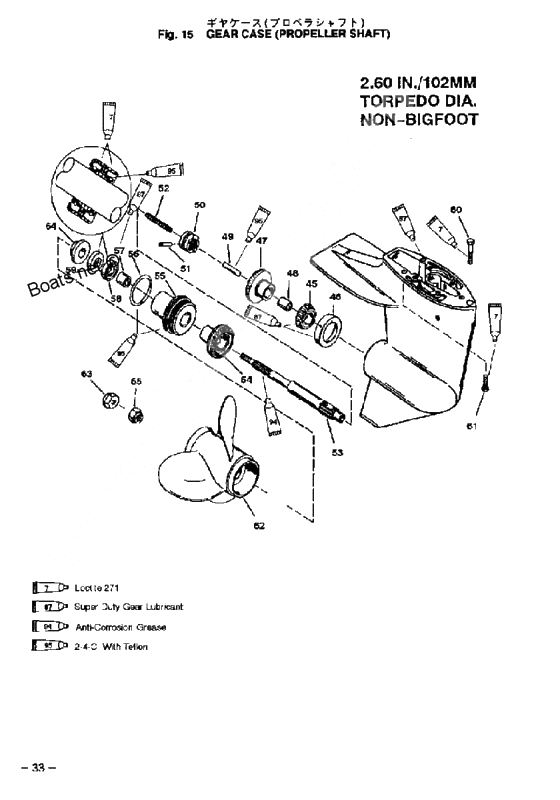

Gear case (propeller shaft) для Tohatsu MFS15A - 2002 года выпуска
-
№АртикулНазвание
-
453V3-60215-0 Roller BearingRoller Bearing
-
463V3-60311-0 Cup
NSSCup
NSS -
473V3-64010-0 Forward gear(13-26)Forward gear(13-26)
-
483V3-64011-0 BushingBushing
-
493V3-64223-0 Cam followerCam follower
-
503V3-64215-0 ClutchClutch
-
513V3-64217-0 Cross pinCross pin
-
523V3-64221-0 Spring WasherSpring Washer
-
533V3-64211-0 Propellre shaftPropellre shaft
-
543V3-64030-0 Reverse gear(13-26)Reverse gear(13-26)
-
553V3-60101-0 НесущаяНесущая
-
563V3-60103-0 O-RingO-Ring
-
573V3-60102-0 BushingBushing
-
583V3-60111-0 Oil SealOil Seal
-
593V3-60115-0 Oil SealOil Seal
-
60910803-5850 BoltBolt
-
61910803-5830 BoltBolt
-
623V3-64107-0 Stop ScrewStop Screw
-
633V3-64121-0 Комплект установочныйКомплект установочный
-
643V3-64231-0 Thrust hubThrust hub
-
653V3-64233-0 SpacerSpacer
